Danfoss 90302-045400

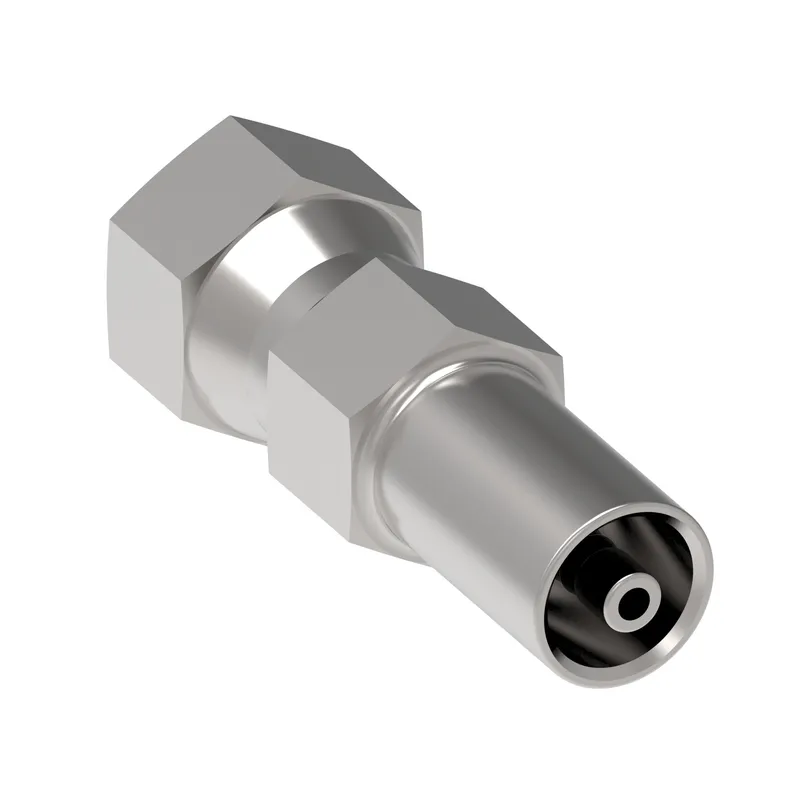

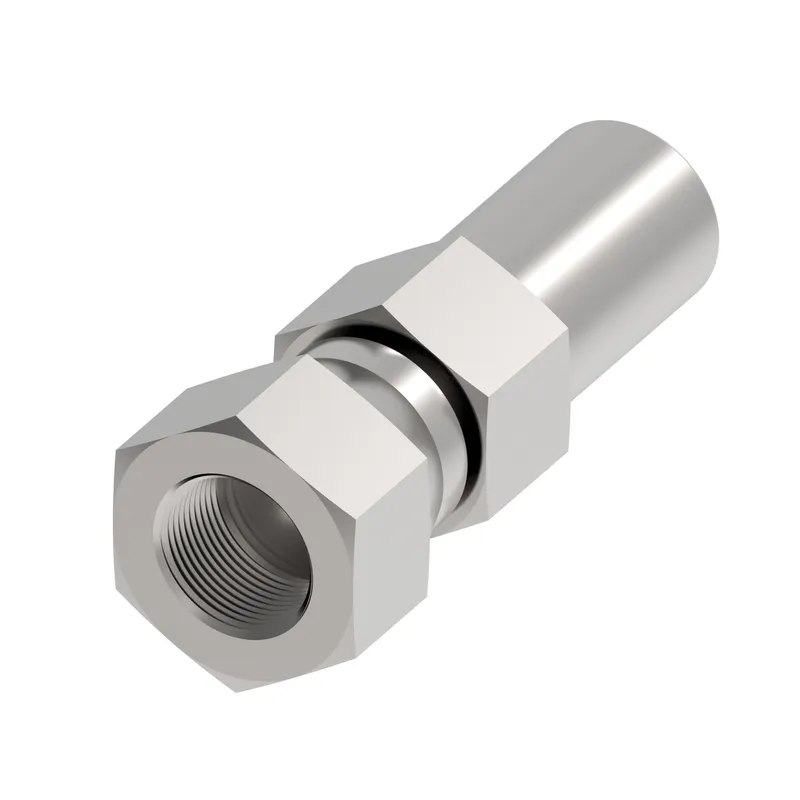

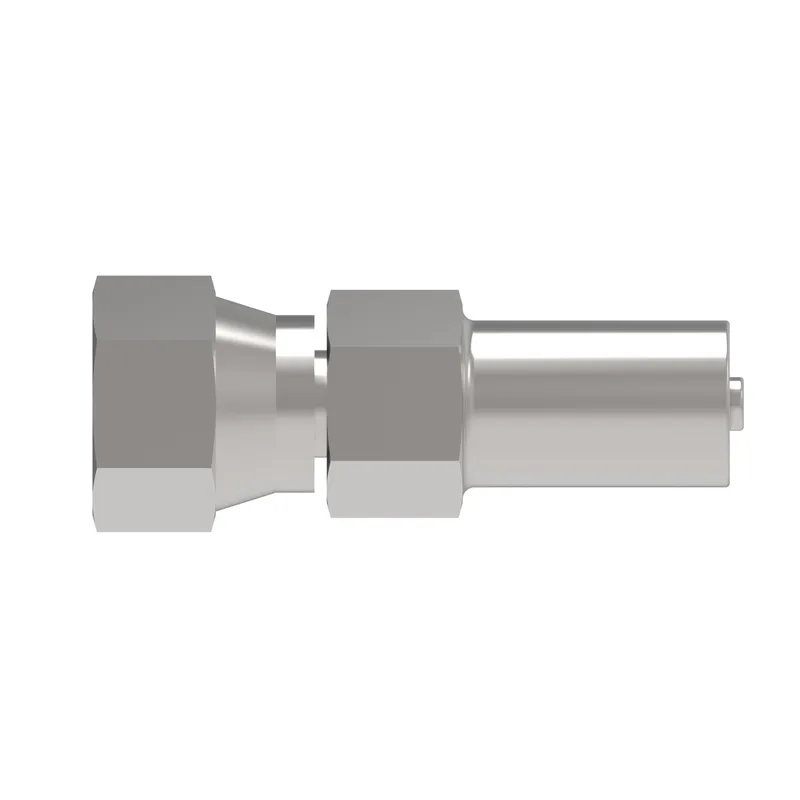

HOSE FTG, 4T/02, JIC-F/04, CS, STR

MPN
90302-045400
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90302-045400?

Danfoss HOSE FTG, 4T/02, JIC-F/04, CS, STR, manufacturer part number 90302-045400. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN1.703
A dimension MM43.260
Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.130
Compatible hose ID MM3.302
Construction StyleCrimp
End size 1-4
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hex size 1 IN0.500
Hex size 1 MM12.0
Hex size 2 IN0.625
Hex size 2 MM15.0
Hose cut off factor IN1.111
Hose cut off factor MM28.220
Hose size-2
Inside diameter IN7.400
Inside diameter MM1.879
Product height in0.720
Product height mm18.288
Product length in1.700
Product length mm43.180
Product materialCarbon steel
Product width in0.590
Product width mm14.986 mm
Thread sealantNo
Thread size 17/16-20 UNF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90302-045400: frequently asked questions

When can 90302-045400 be shipped?

90302-045400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90302-045400 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90302-045400 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90302-045400, subject to availability and destination.
