Danfoss 90302-021400-0

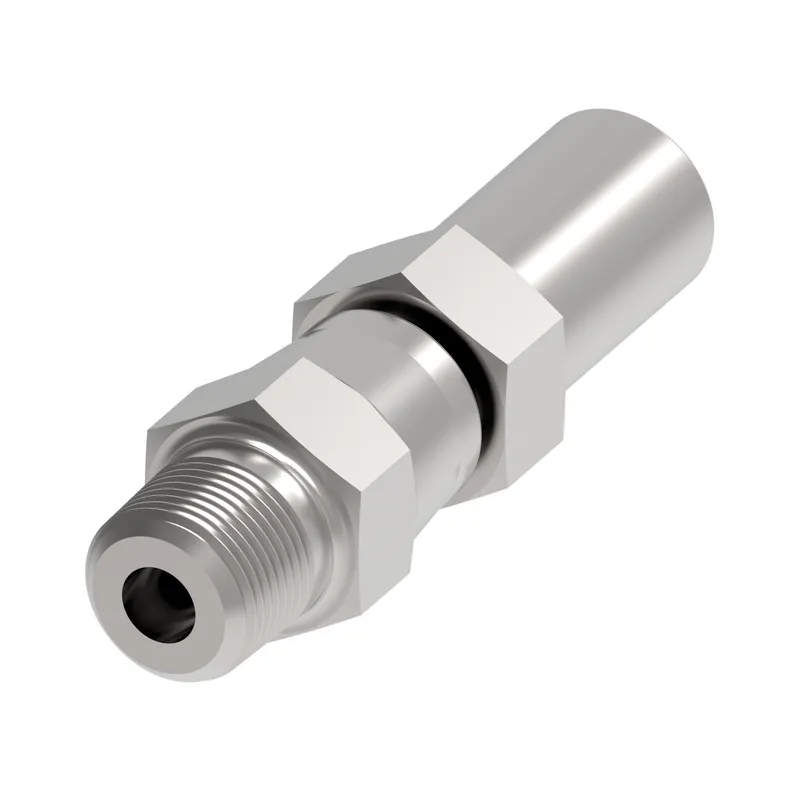

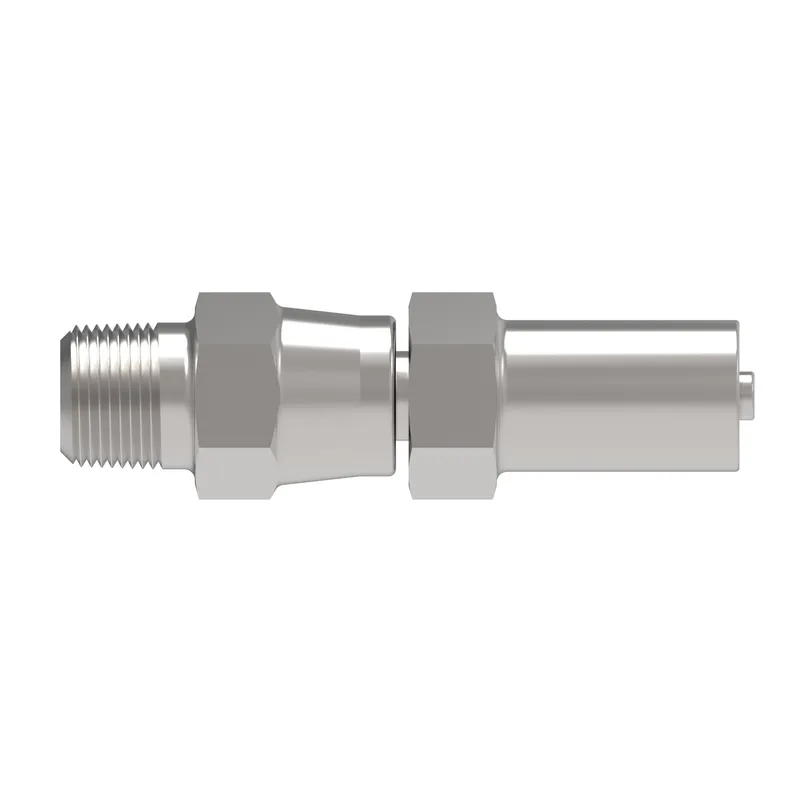

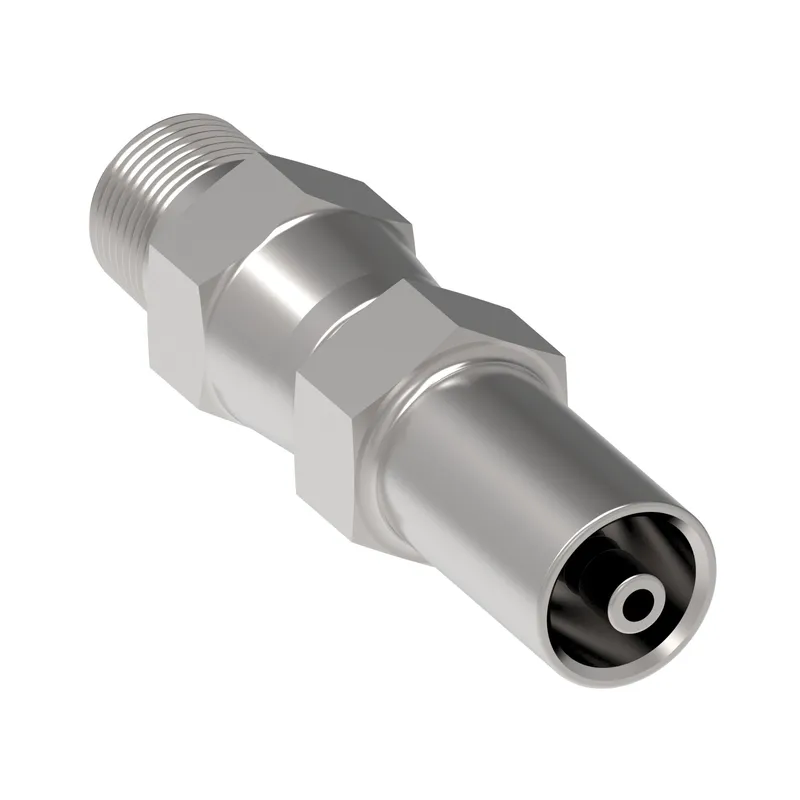

HOSE NIPPLE ASSY,4T/02,NPTF-M/02,CS,STR

MPN
90302-021400-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90302-021400-0?

Danfoss HOSE NIPPLE ASSY,4T/02,NPTF-M/02,CS,STR, manufacturer part number 90302-021400-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN1.896
A dimension MM48.158
Angle shapeStraight
Construction StyleCrimp
End type 1Male pipe (NPTF)
Finish platingZinc plating
Hex size 1 IN0.500
Hex size 1 MM12.0
Hose cut off factor IN1.333
Hose cut off factor MM33.858
Inside diameter IN0.078
Inside diameter MM1.981
Product height in0.500
Product height mm12.700
Product length in1.900
Product length mm48.260
Product materialCarbon steel
Product width in0.500
Product width mm12.700 mm
Thread sealantYes
Thread size 11/8-27 NPTF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

90302-021400-0: frequently asked questions

When can 90302-021400-0 be shipped?

90302-021400-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90302-021400-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90302-021400-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90302-021400-0, subject to availability and destination.
