Danfoss 90206-065500-0

FTG:STEEL F-JIC STRT WAS 3902-06546

MPN
90206-065500-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 90206-065500-0?

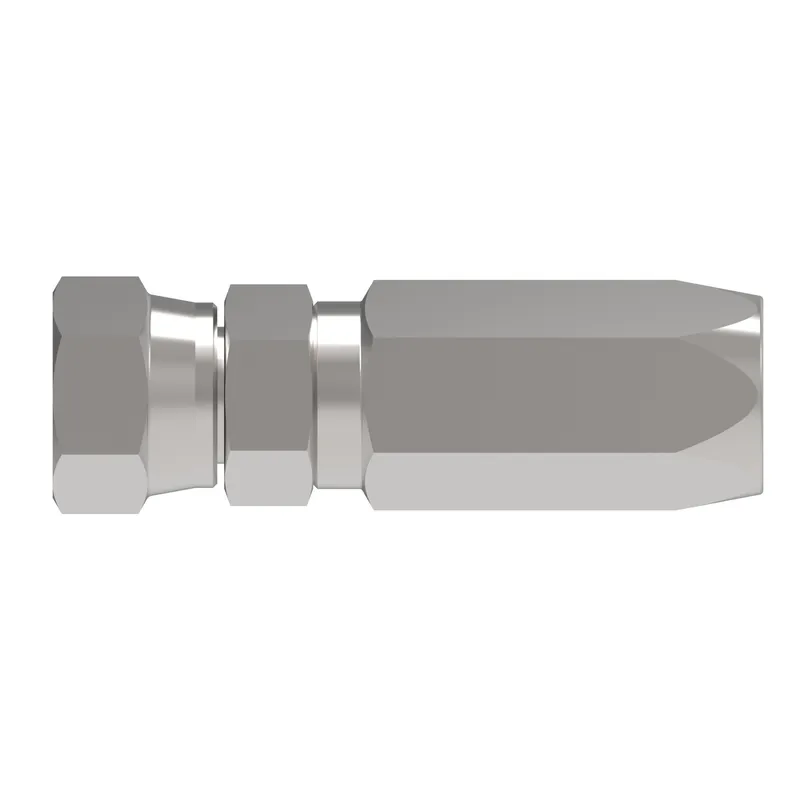

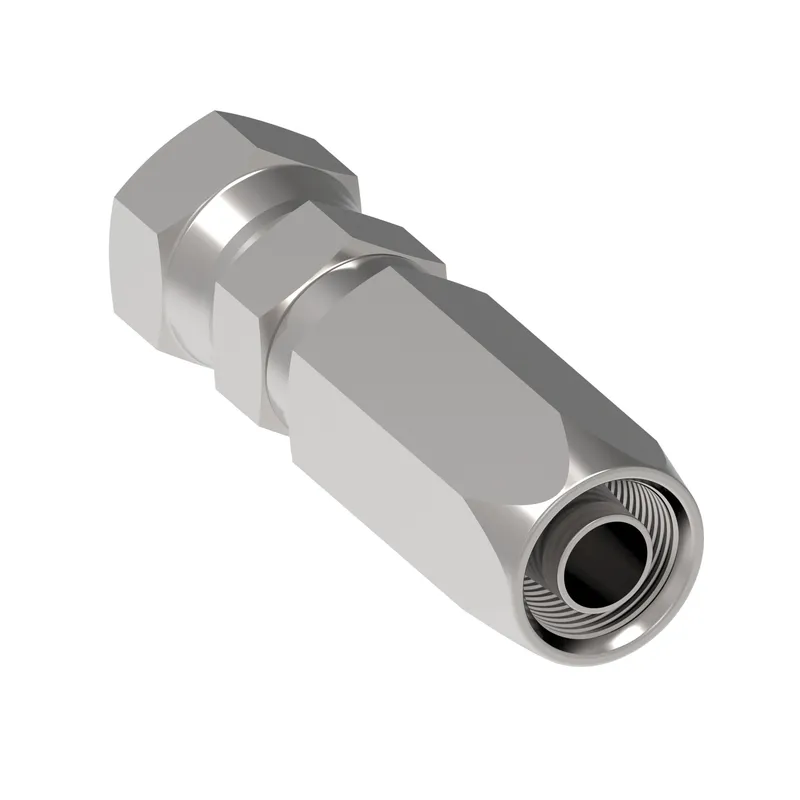

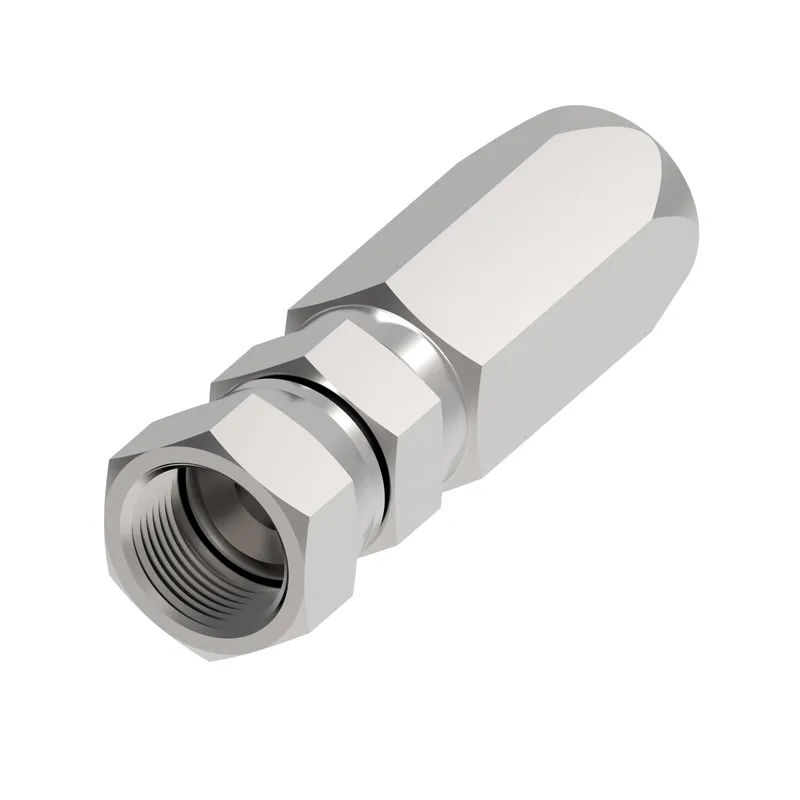

Danfoss FTG:STEEL F-JIC STRT WAS 3902-06546, manufacturer part number 90206-065500-0. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Angle shapeStraight
BrandSynflex by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.652
Compatible hoses37AL
Compatible tube OD IN0.38
Compatible tube OD MM9.652
Construction StyleReusable
End size 1-6
End type 1Female 37 degree swivel
Hex size 1 IN0.690
Hex size 1 MM17.526
Hex size 2 IN0.750
Hex size 2 MM19.050
Hose cut off factor IN1.480
Hose cut off factor MM37.592
Hose size-6
Inside diameter IN0.2700
Inside diameter MM6.8580
Product materialCarbon steel
Thread sealantNo
Tube OD 1 IN0.380
Tube OD 1 MM9.652
Working pressure max BAR483
Working pressure max PSI7000

90206-065500-0: frequently asked questions

When can 90206-065500-0 be shipped?

90206-065500-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 90206-065500-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 90206-065500-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 90206-065500-0, subject to availability and destination.
