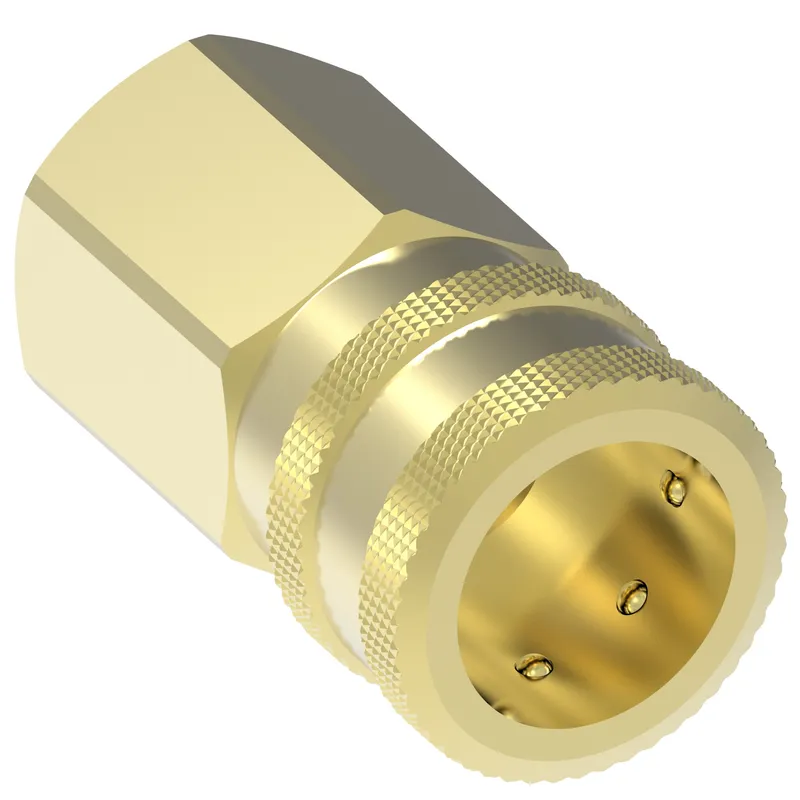

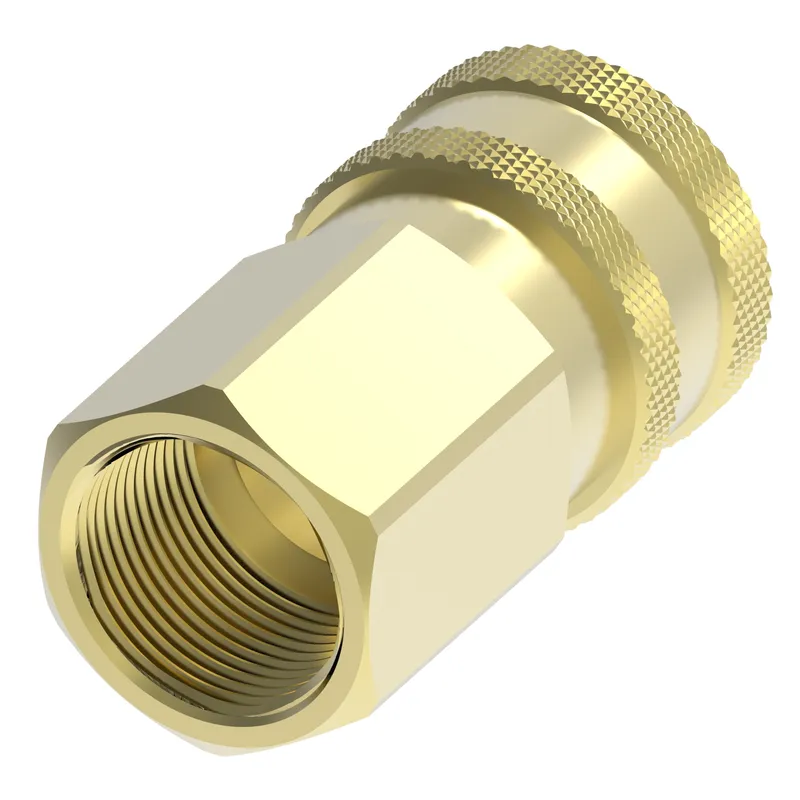

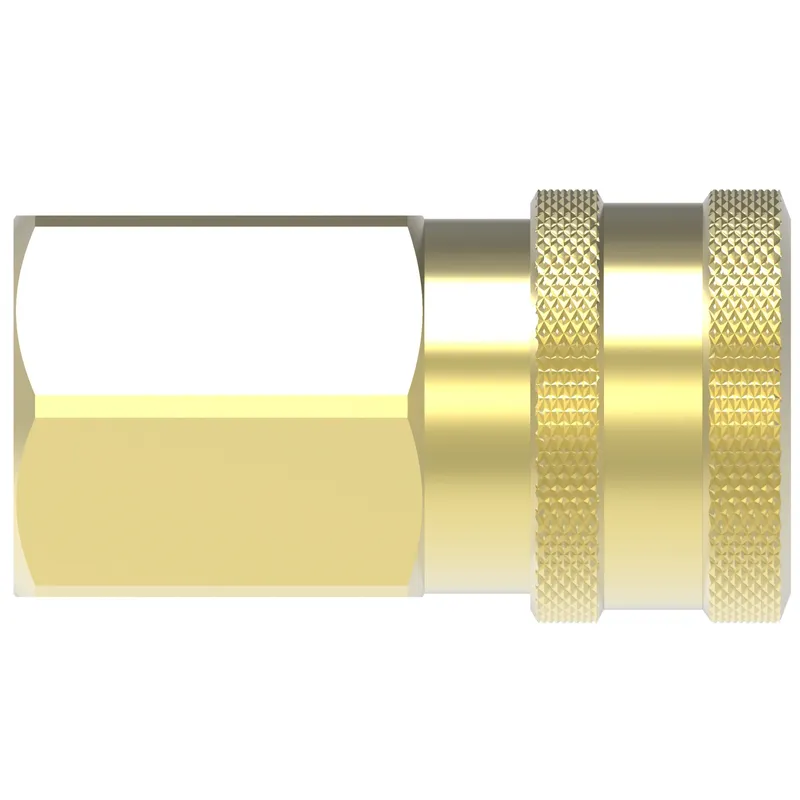

Danfoss 8S36BS192

Cplng, ST SERIES SOCKET, BRASS

MPN: 8S36BS192
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 8S36BS192?

Danfoss Cplng, ST SERIES SOCKET, BRASS, manufacturer part number 8S36BS192. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146201560
Angle shape	Straight
Body size	1"
Brand	Danfoss
Burst pressure min bar	359
Burst pressure min psi	5200
Connection style	Manual connect
End size 1	-16
Flow rate GPM	140.00
Flow rate LPM	529.96
Hex size 1 IN	1.750
Hex size 1 MM	44.450
Item type	Female half
Product material	Brass
Seal material	Ethylene propylene (EPDM)
Sub brand	Hansen
Thread size 1	G 1
Valve type	Straight thru
Working pressure max psi	1300
Working pressure max BAR	90
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-54
Working temperature min F	-65

8S36BS192: frequently asked questions

When can 8S36BS192 be shipped?

8S36BS192 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8S36BS192 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8S36BS192 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8S36BS192, subject to availability and destination.
