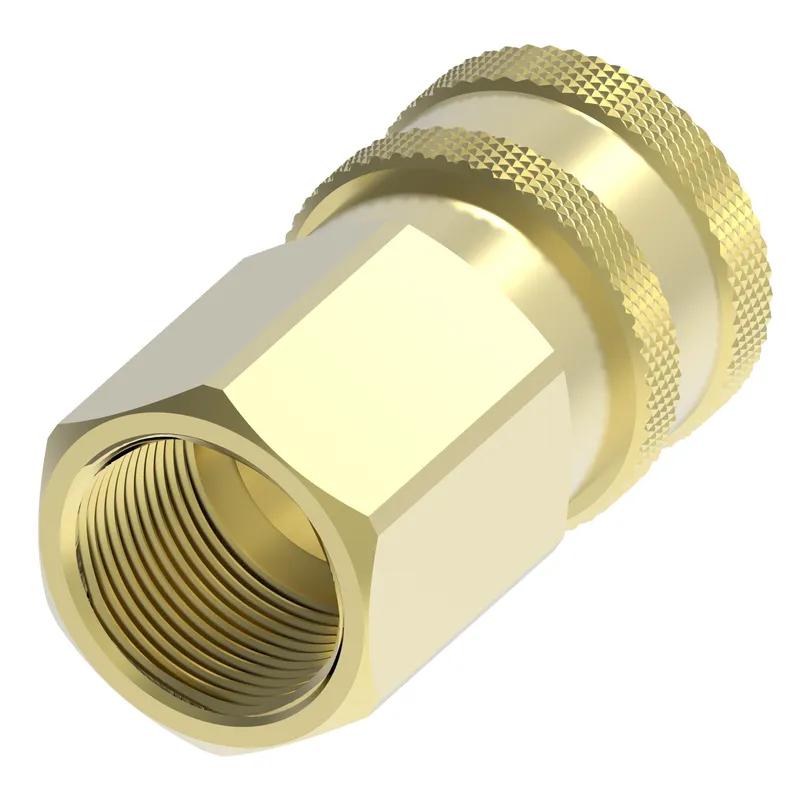

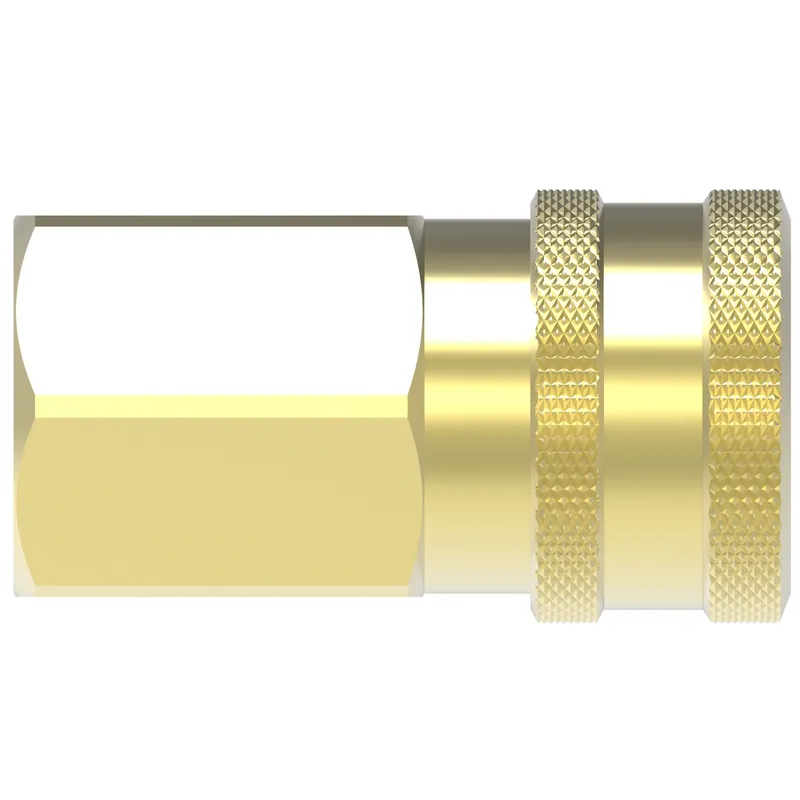

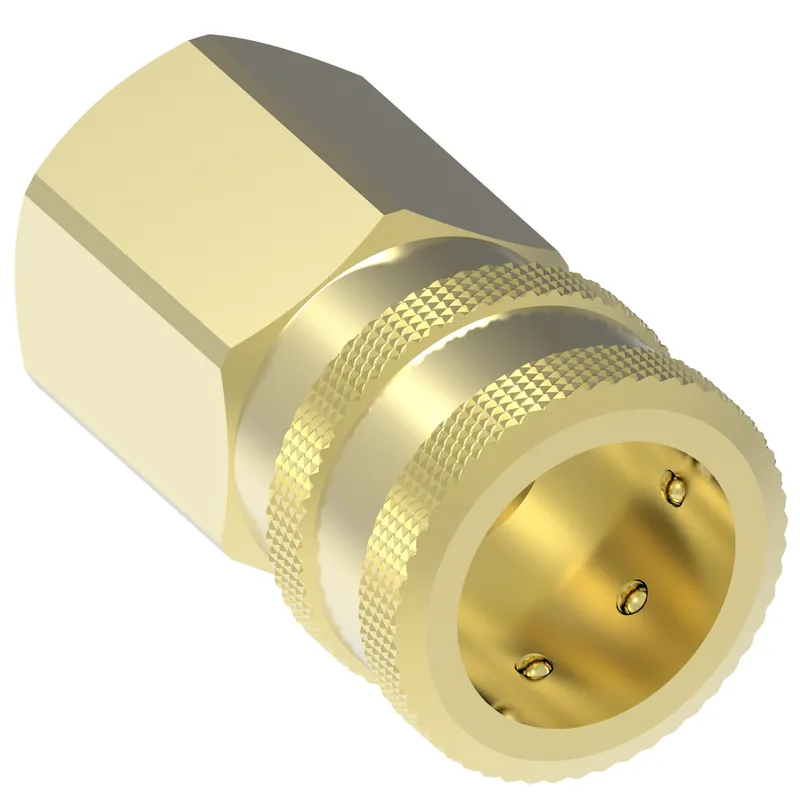

Danfoss 8S36143

COUPLING,ST,F,1",B,-24NPT,FKM

MPN: 8S36143
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 8S36143?

Danfoss COUPLING,ST,F,1",B,-24NPT,FKM, manufacturer part number 8S36143. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146158734
Angle shape	Straight
Application	Chemical, Fluid transfer, Food and beverage, Injection moulding, Marine, Medical, Pressure washing, Steam cleaning
Body size	1"
Burst pressure min bar	359
Burst pressure min psi	5200
Connection style	Manual connect
End size 1	-16
End size 2	-16
End type 1	Female pipe (NPTF)
Flow rate GPM	140.00
Flow rate LPM	529.96
Hex size 1 IN	1.750
Hex size 1 MM	44.450
Item type	Female half
Latch type	Push to connect
Product length in	2.330
Product material	Brass
Seal material	Fluorocarbon (FKM)
Thread size 2	1-11 1/2 NPTF
Valve type	Straight thru
Working pressure max psi	1300
Working pressure max BAR	90
Working temperature max C	204
Working temperature max F	400
Working temperature min C	-26
Working temperature min F	-15
