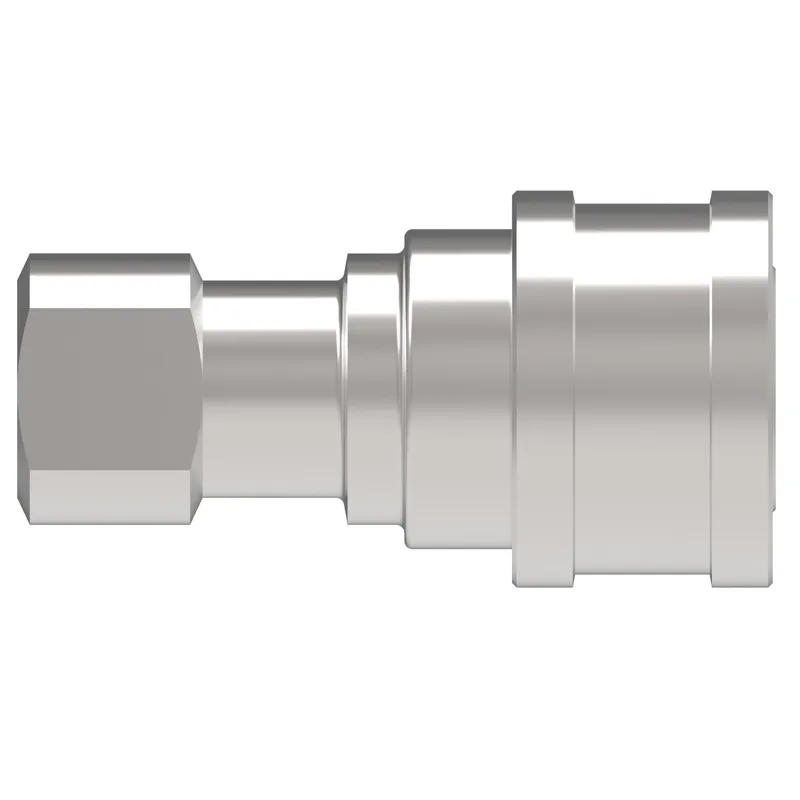

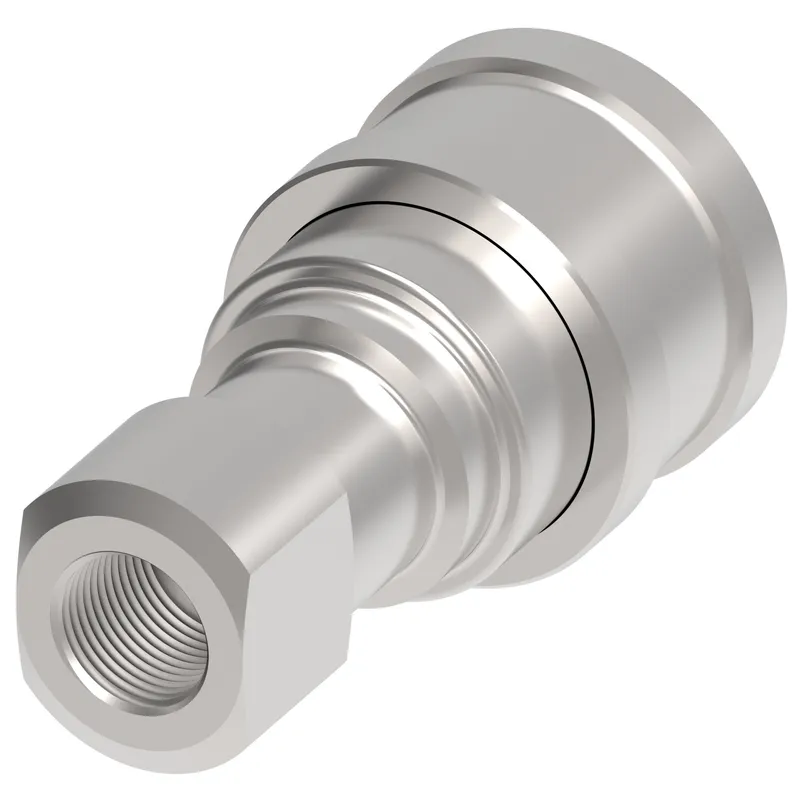

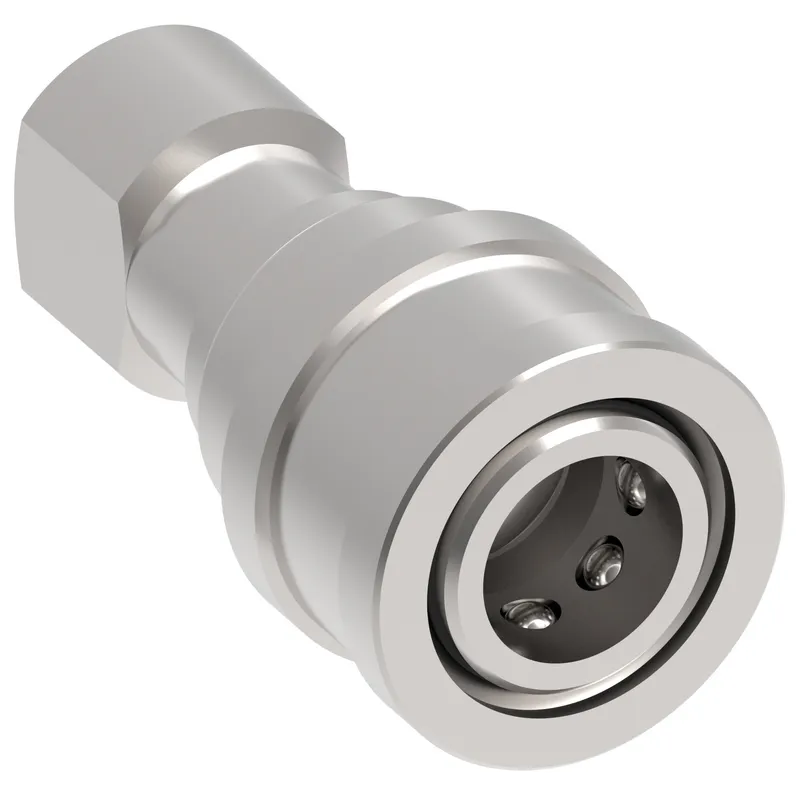

Danfoss 8HP36BS129

COUPLING,HK,F,1",CS,-16BSP,NBR

MPN: 8HP36BS129
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 8HP36BS129?

Danfoss COUPLING,HK,F,1",CS,-16BSP,NBR, manufacturer part number 8HP36BS129. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146105110
Air inclusion max cc	18.00
Air inclusion max in3	1.10
Angle shape	Straight
Application	Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks
Body size	1"
Brand	Danfoss
Certifications	ISO 7241-1 Series B
Connection style	Manual connect
End size 1	-16
End size 2	-16
End type 1	Female Push to Connect
End type 2	Female BSPP swivel
Finish plating	Zinc
Flow rate GPM	50.00
Flow rate LPM	189.27
Fluid loss cc	16.90000
Fluid loss in3	1.03100
Hex size 1 IN	1.750
Hex size 1 MM	44.450
Item type	Female half
Latch type	Push/pull
Product material	Carbon steel
Safety locking mechanism	Sleeve lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Thread size 1	G 1
Thread size 2	G 1
Valve type	2 way
Working pressure max psi	4000
Working pressure max BAR	276
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
