Danfoss 8HP36146

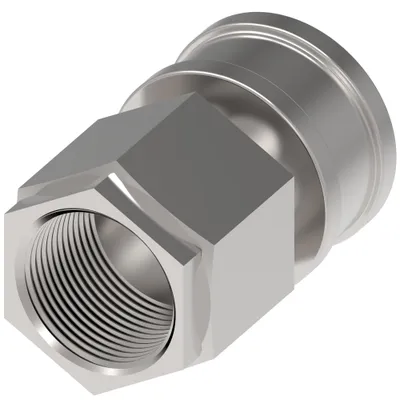

Cplng, HK SERIES SOCKET, STEEL

MPN: 8HP36146
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 8HP36146?

Danfoss Cplng, HK SERIES SOCKET, STEEL, manufacturer part number 8HP36146. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146160829
Air inclusion max cc	18.00
Air inclusion max in3	1.10
Angle shape	Straight
Body size	1"
Brand	Danfoss
Connection style	Manual connect
End size 2	-16
End type 1	Female Push to Connect
End type 2	Female pipe (NPTF)
Finish plating	Zinc
Flow rate GPM	50.00
Flow rate LPM	189.27
Fluid compatibility	Hydraulic fluid
Fluid loss cc	16.90000
Fluid loss in3	1.03100
Hex size 1 IN	1.750
Hex size 1 MM	44.450
Item type	Female half
Latch type	Push/pull
Product length in	4.130
Product material	Carbon steel
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	4000
Working pressure max BAR	276
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
