What is the Danfoss 87341Y-24-20Z?

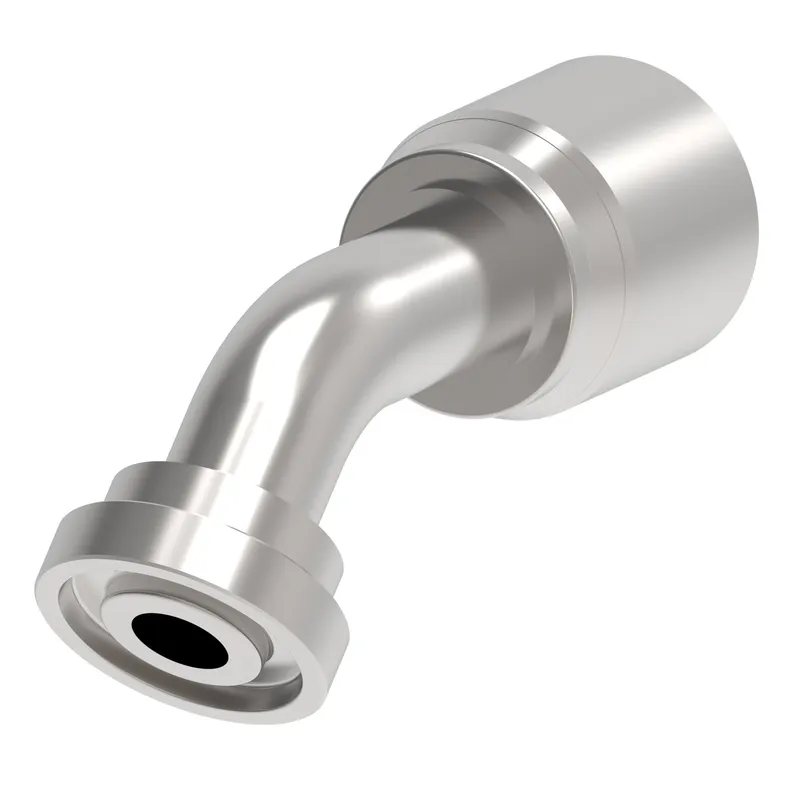

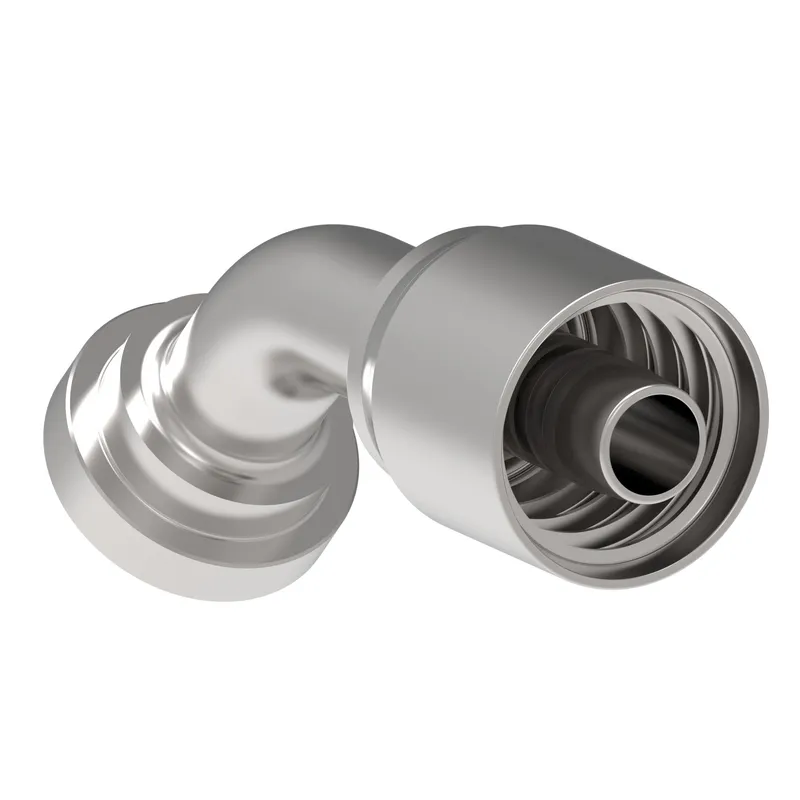

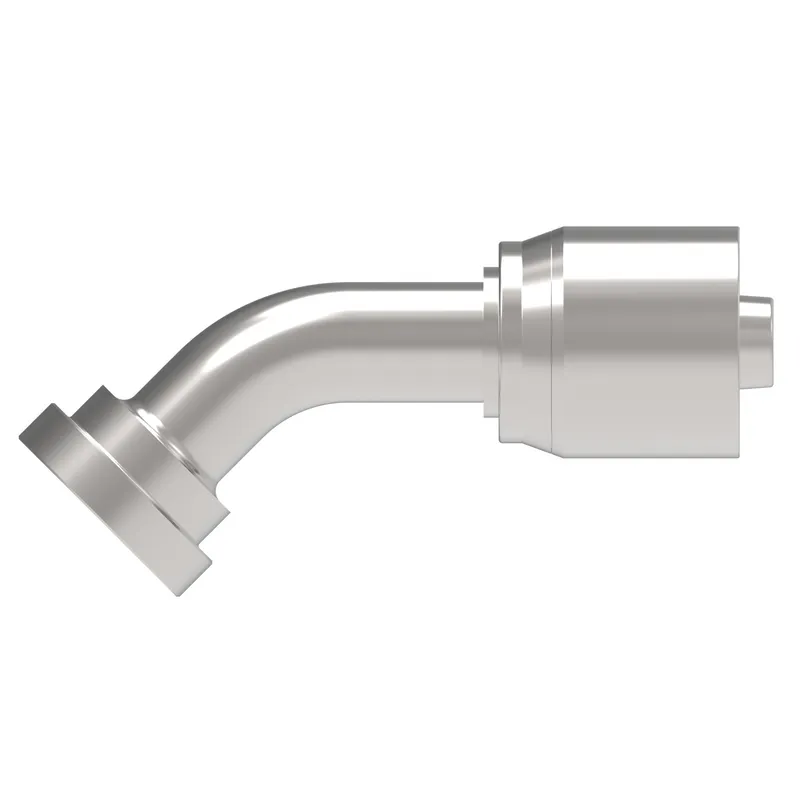

Danfoss HOSE NIPPLE, 1P/20, C61/24, CS, 45D, manufacturer part number 87341Y-24-20Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN5.901
A dimension MM149.900
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Construction StyleCrimp
Drop dimension IN1.385
Drop dimension MM35.20
End Type 1Split flange code 61
Finish platingZinc plating
Hose cut off factor IN3.775
Hose cut off factor MM95.900
Hose size-20
Inside diameter IN1.062
Inside diameter MM27.000
Product height in3.921
Product height mm99.593
Product length in7.085
Product length mm179.959
Product materialCarbon steel
Product width in2.696
Product width mm68.478
Thread sealantNo
Working pressure max BAR206
Working pressure max PSI2950
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
