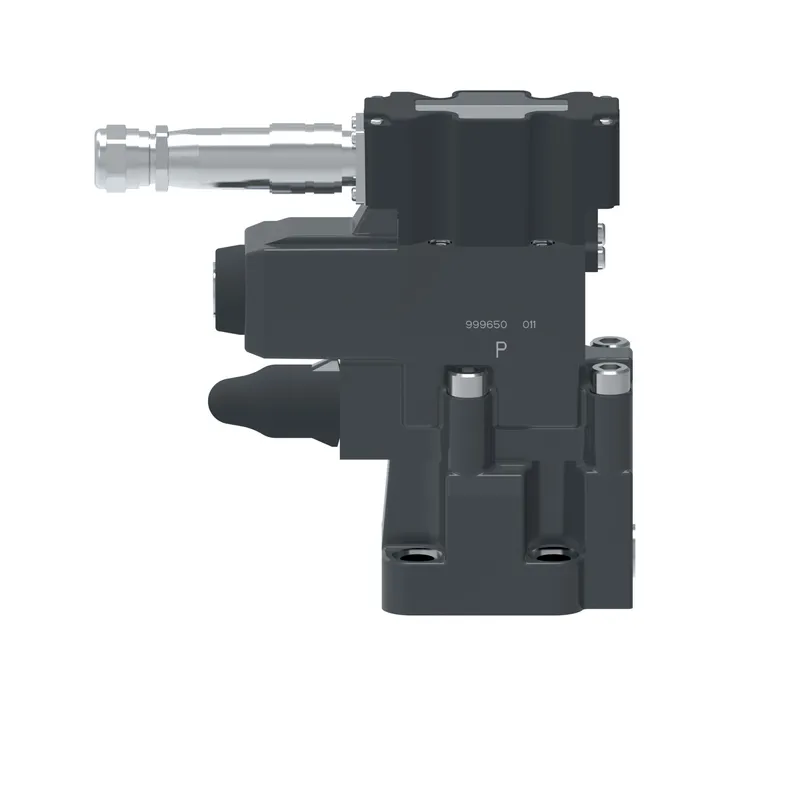

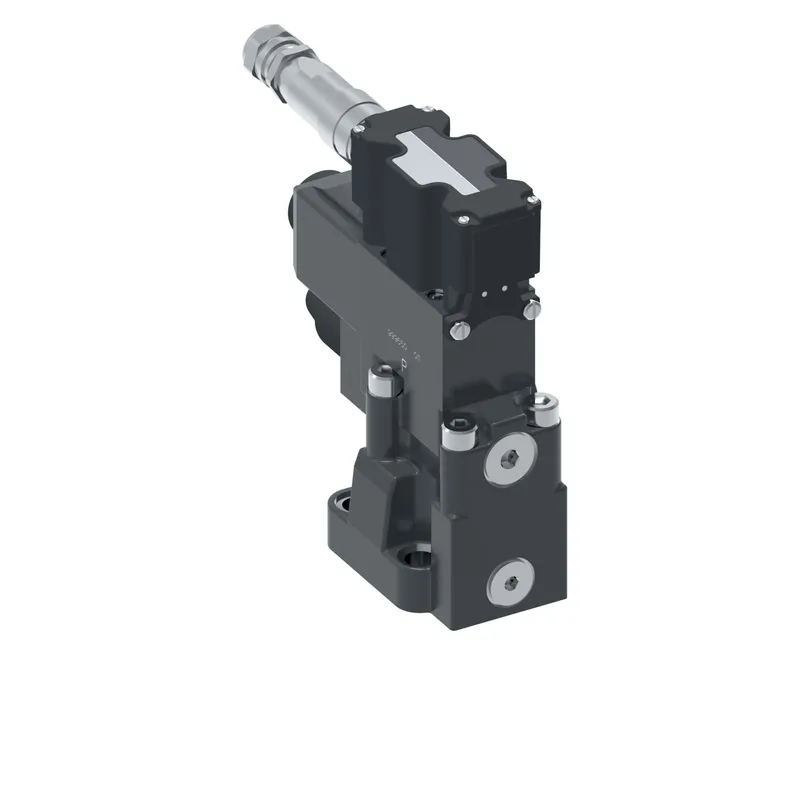

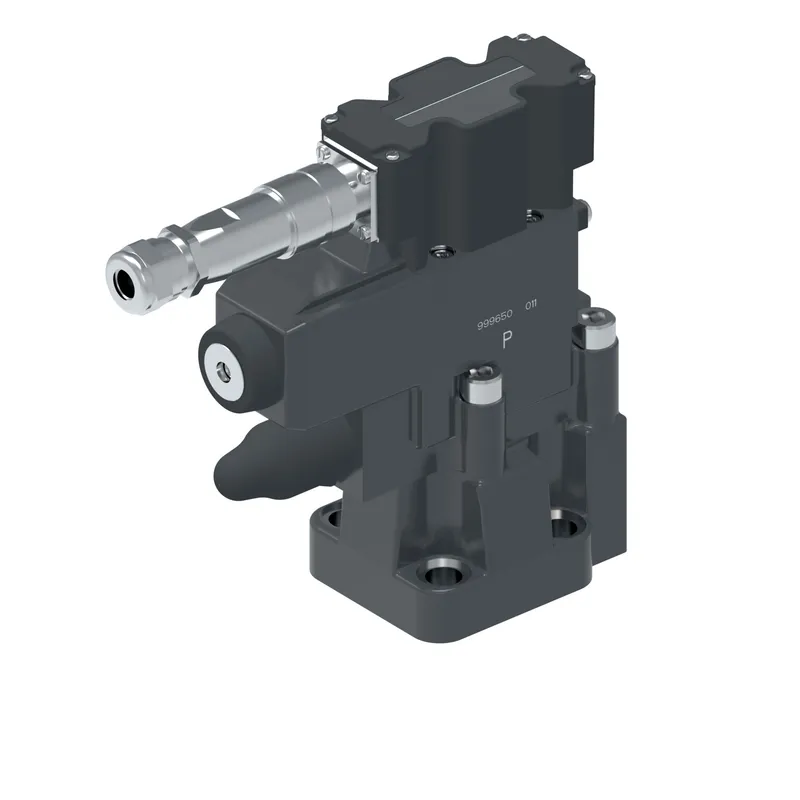

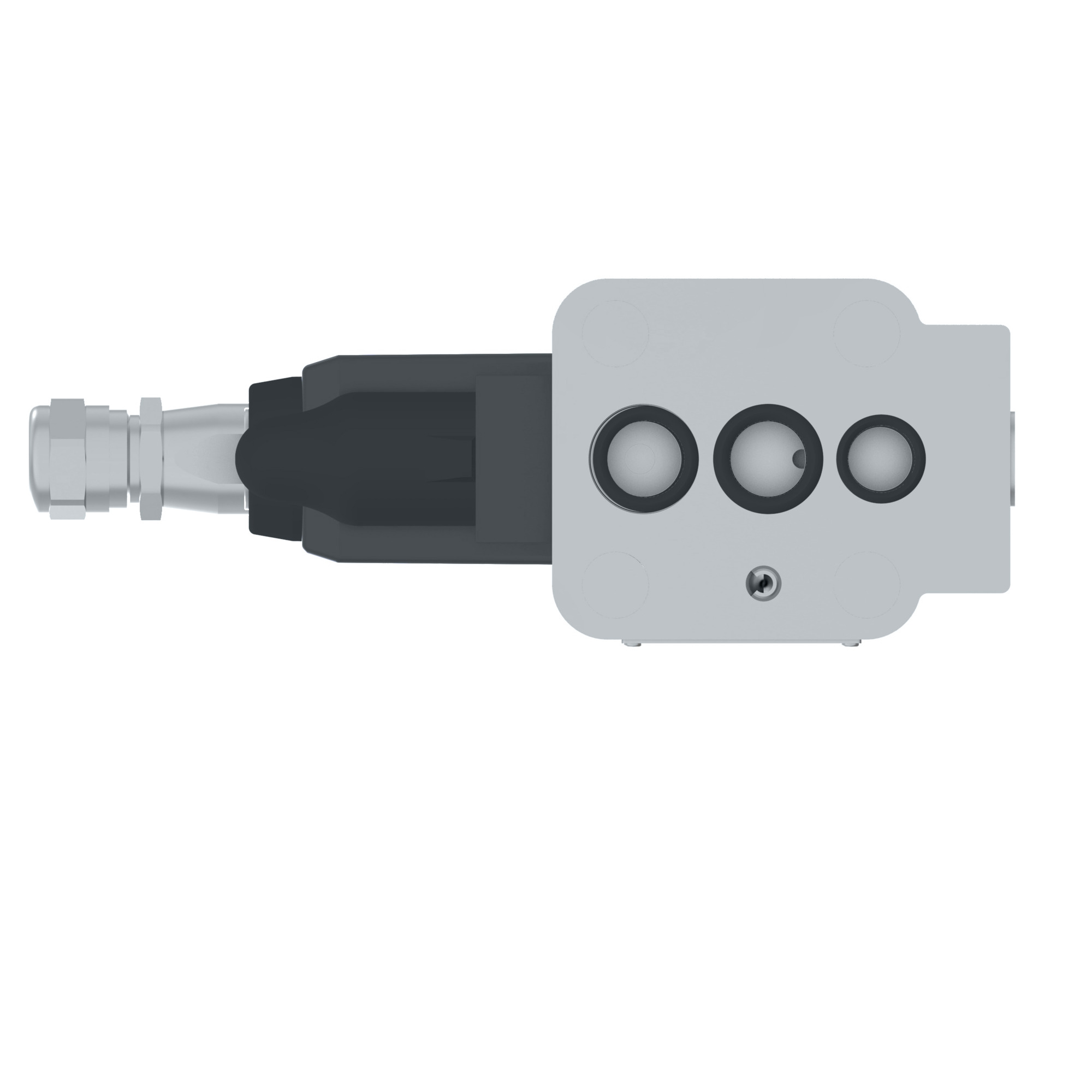

Danfoss 863AN00018A

KBXCG-8-W100-Z-M1-3-A-PE7-H1-11, KBXCG8W100ZM13APE7H111

MPN: 863AN00018A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 863AN00018A?

Danfoss KBXCG-8-W100-Z-M1-3-A-PE7-H1-11, KBXCG8W100ZM13APE7H111, manufacturer part number 863AN00018A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid controlled pilot operated
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Coil voltage	24 Volt DC
Command input	+/- 10V control signal
Communication protocol	None
Design Series	11 Series
Electrical Connection	Electrical (PE7) 7 pin electrical plug with mating half
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO5781-AH-08-2-A
Manual adjustment	Screw and locknut
Manual override	None
Maximum flow LPM	300.0
Maximum flow USGPM	80.0
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KBXCG8W100ZM13APE7H111
On board electronics	Yes
Performance	Standard
Product height in	7.740
Product height mm	196.596
Product length in	8.230
Product length mm	209.042
Product width in	4.250
Product width mm	107.95
ProFX compatible	No
Ramp	Standard ramp
Reduced pressure adjustment	12-100 bar (175-1450 psi)
Reducer module	No
Reverse flow check	Yes
Seal type	Viton
Special features	None
Stage	Two stage
Valve Mount Type	Subplate
Valve type	Proportional pressure reducing
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
