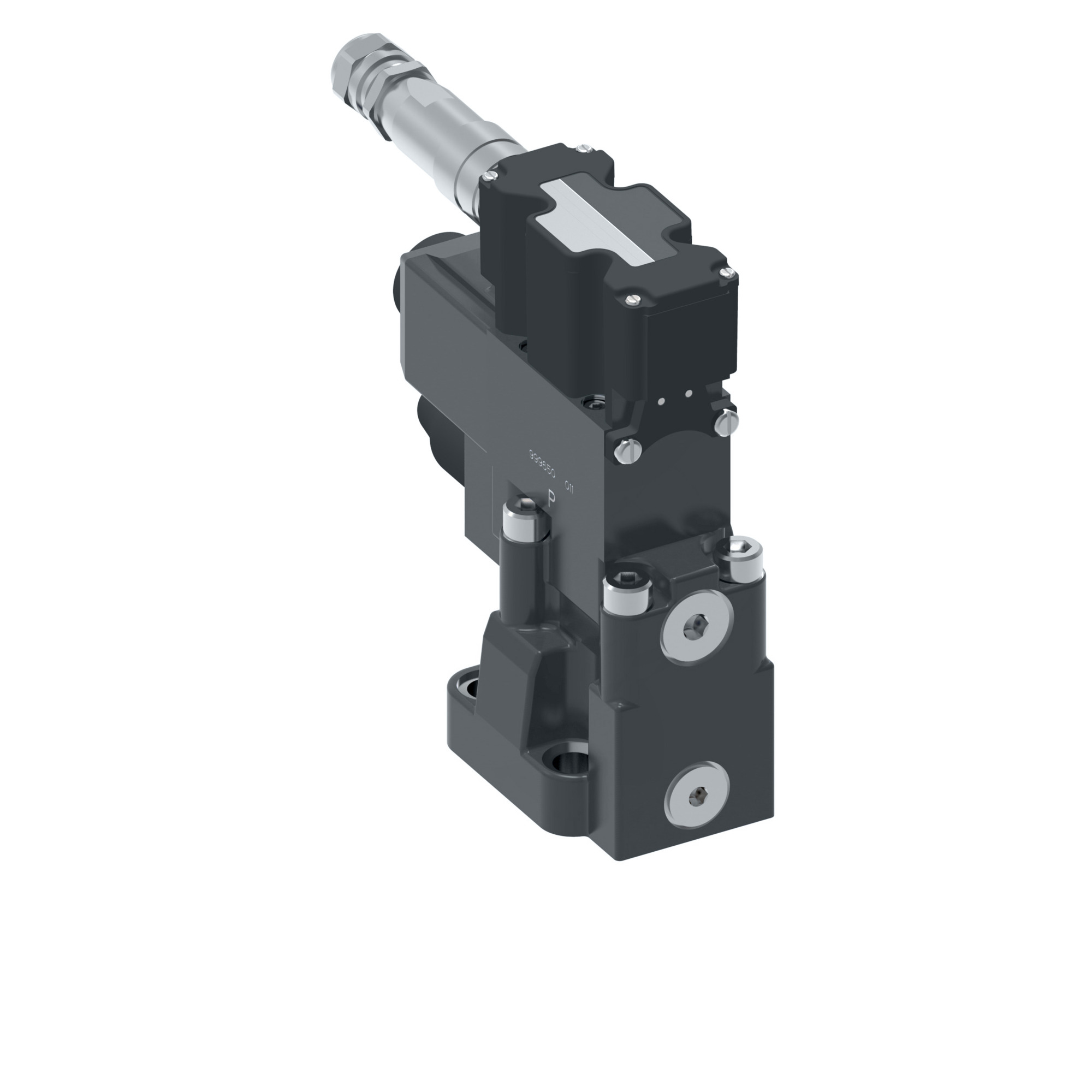

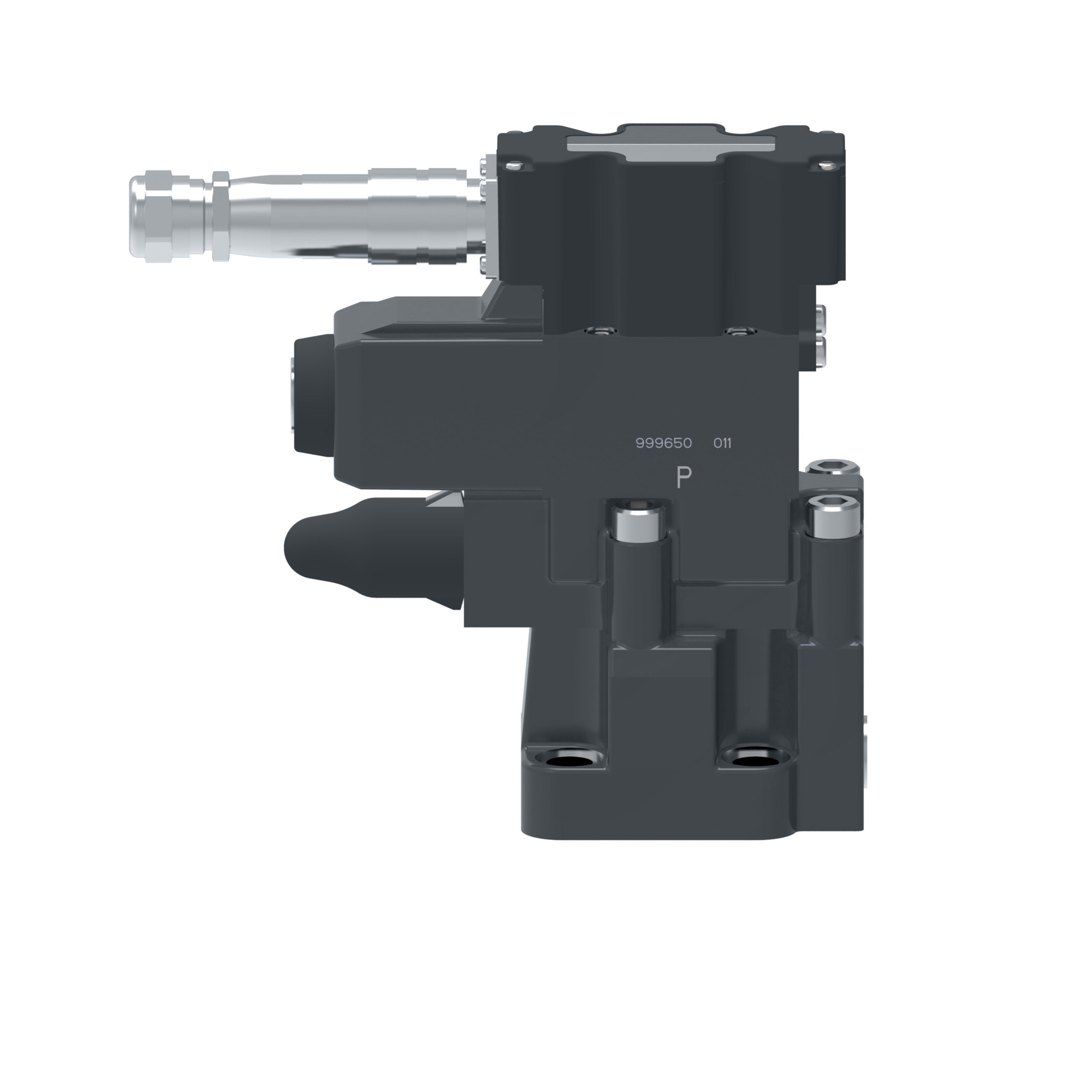

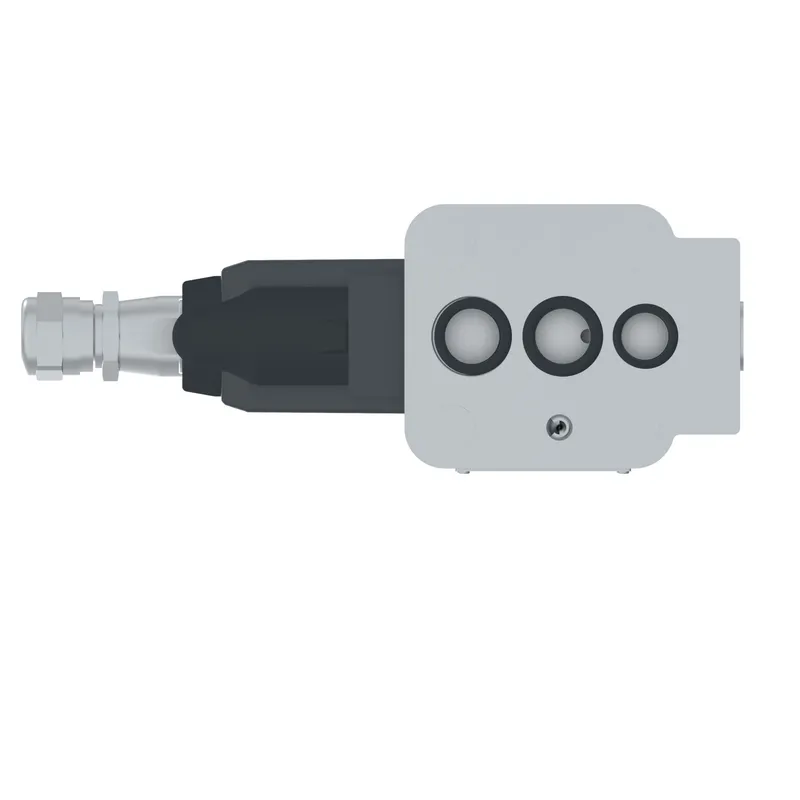

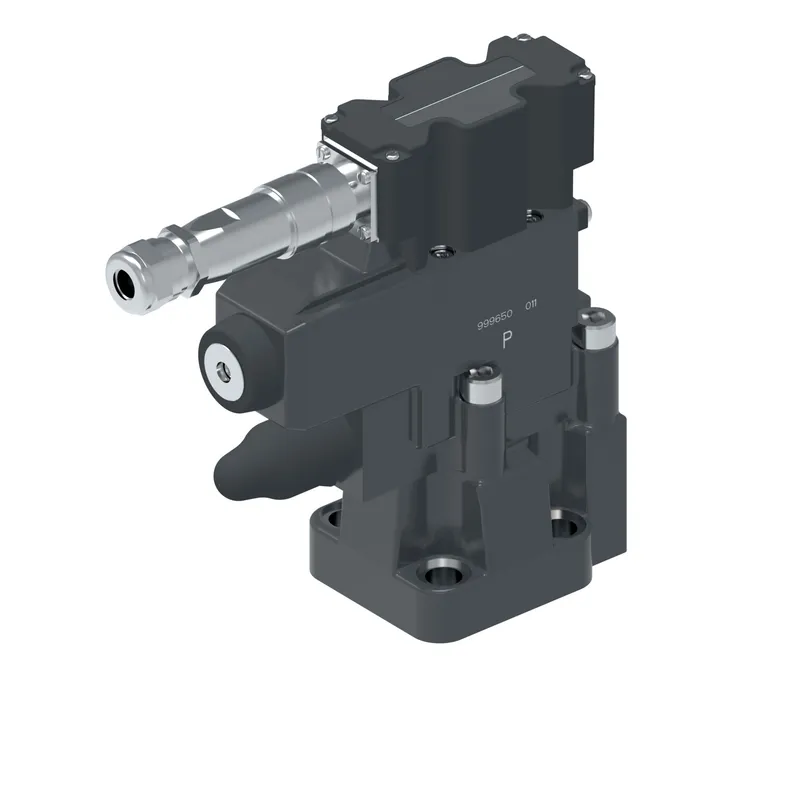

What is the Danfoss 863AN00014A?

Danfoss KBXG-8-W160-3-Z-M1-3-A-PE7-H1-11, KBXG8W1603ZM13APE7H111, manufacturer part number 863AN00014A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Actuation TypeSolenoid controlled pilot operated
BrandVickers by Danfoss
Build orientationSolenoid at B port end
Coil voltage24 Volt DC
Command input+/- 10V control signal
Communication protocolNone
Design Series11 Series
Electrical ConnectionElectrical (PE7) 7 pin electrical plug with mating half
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO5781-AH-08-2-A
Manual adjustmentScrew and locknut
Manual overrideNone
Maximum flow LPM300.0
Maximum flow USGPM80.0
Maximum pressure BAR350
Maximum pressure PSI5000
Model Code 1KBXG8W1603ZM13APE7H111
On board electronicsYes
PerformanceStandard
Product height in7.740
Product height mm196.596
Product length in8.230
Product length mm209.042
Product width in4.100
Product width mm104.14
ProFX compatibleNo
Reduced pressure adjustment14-160 bar (200-2300 psi)
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresNone
StageTwo stage
Valve Mount TypeSubplate
Valve typeProportional pressure reducing
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
