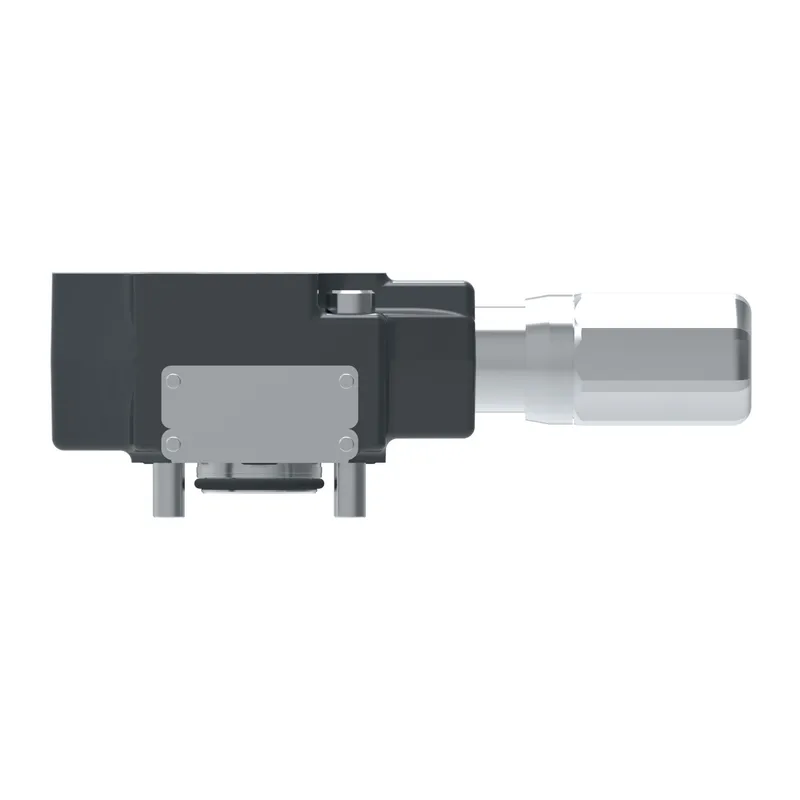

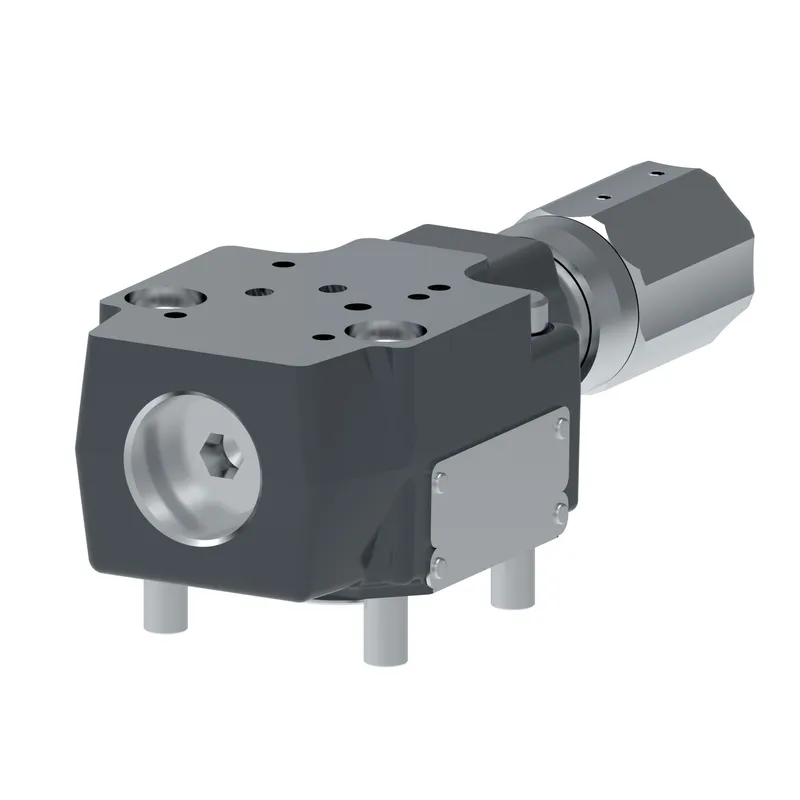

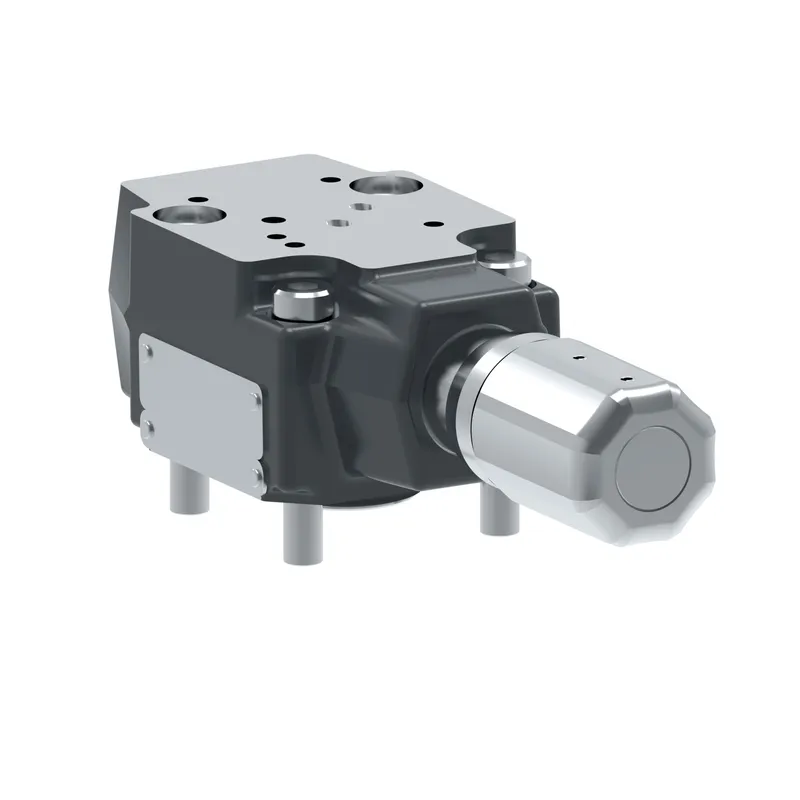

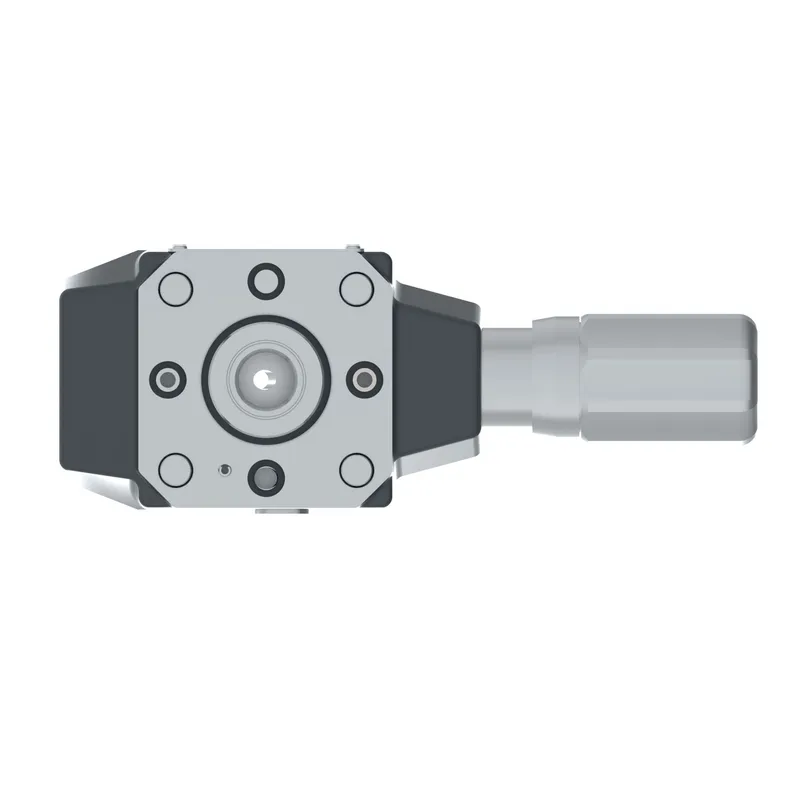

Danfoss 846AN00279A

CVCS-25-C-M-350-20, CVCS25CM35020

MPN: 846AN00279A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 846AN00279A?

Danfoss CVCS-25-C-M-350-20, CVCS25CM35020, manufacturer part number 846AN00279A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Micrometer with keylock
Brand	Vickers by Danfoss
Cover type	Relief
Cracking pressure BAR	3.30
Cracking pressure PSI	48.0
Design Series	20 Design
Flow rate LPM	590
Flow rate USGPM	155.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Relief
Interface	No
Leakage	Standard
Model Code 1	CVCS25CM35020
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.480
Product height mm	62.992
Product length in	2.440
Product length mm	61.976
Product width in	3.510
Product width mm	89.154
Seal material	Buna-N
Size	NG 25
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
