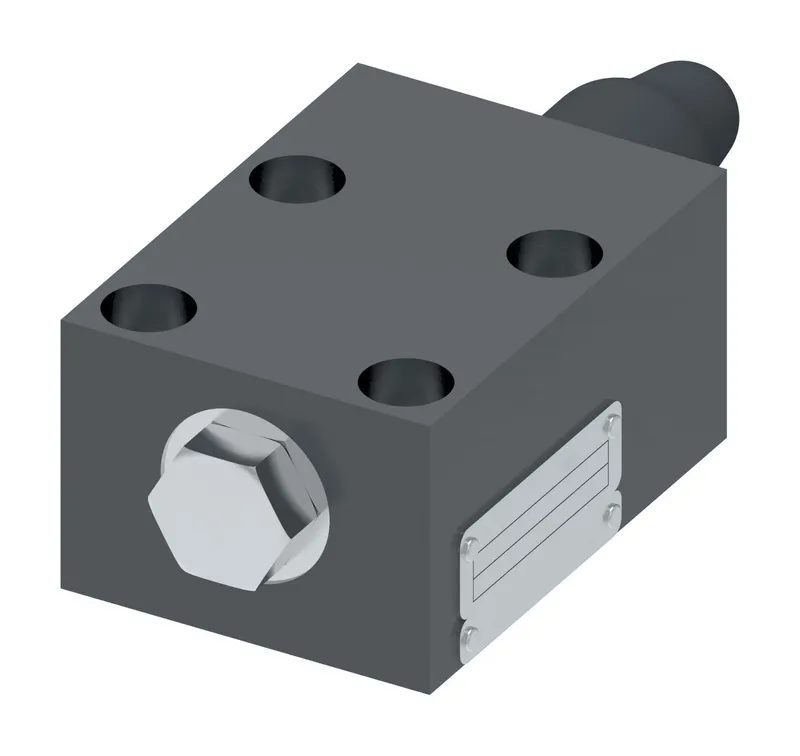

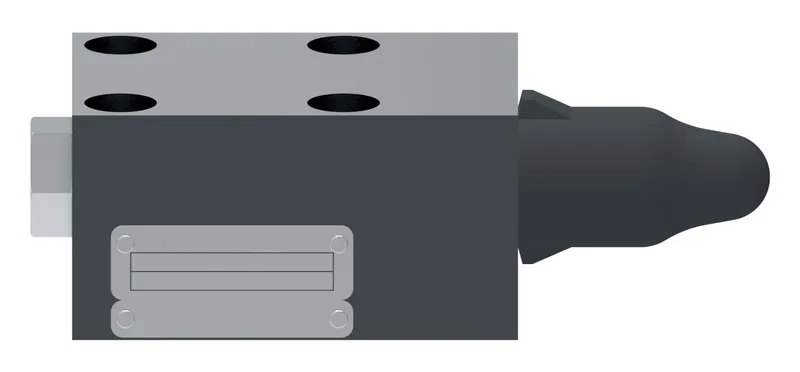

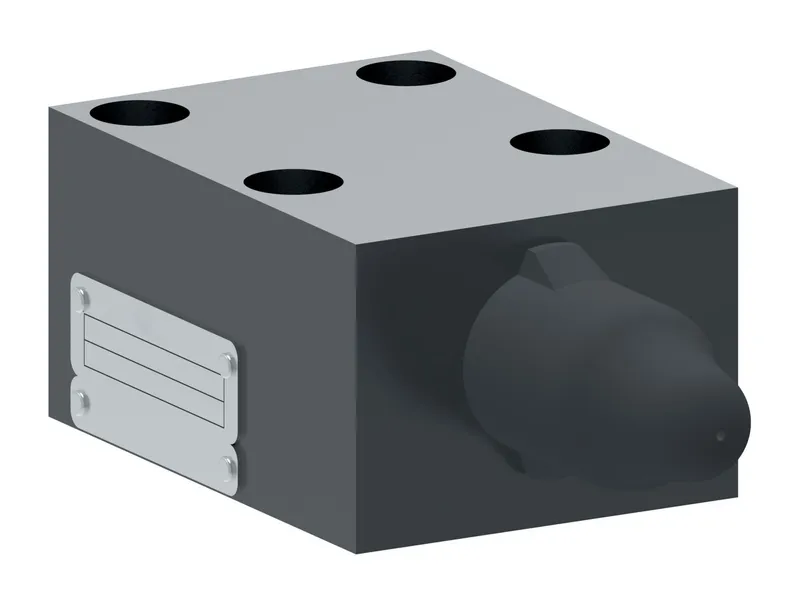

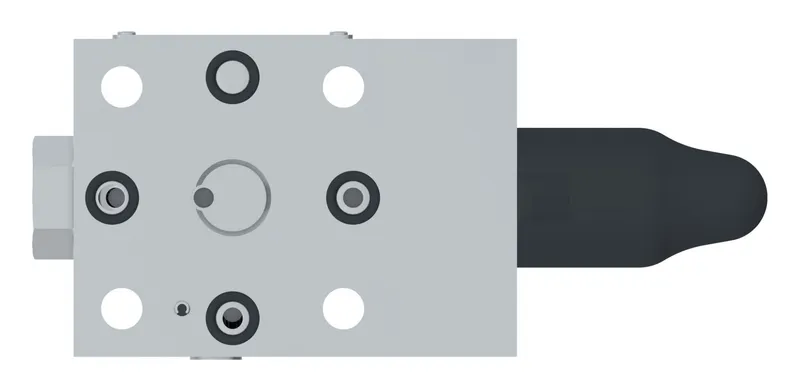

Danfoss 846AN00273A

F3-CVCS-16-X-W-350-20, F3CVCS16XW35020

MPN: 846AN00273A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 846AN00273A?

Danfoss F3-CVCS-16-X-W-350-20, F3CVCS16XW35020, manufacturer part number 846AN00273A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Cover type	Pressure reducer
Cracking pressure BAR	5.00
Cracking pressure PSI	72.0
Design Series	20 Design
Flow rate LPM	145
Flow rate USGPM	38.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Phosphate Ester and other Synthetic Fire Resistant Fluids
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Pressure Reducer
Interface	No
Leakage	Standard
Model Code 1	F3CVCS16XW35020
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.480
Product height mm	62.992
Product length in	5.950
Product length mm	151.130
Product width in	2.720
Product width mm	69.088
Seal material	Viton
Size	NG 16
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
