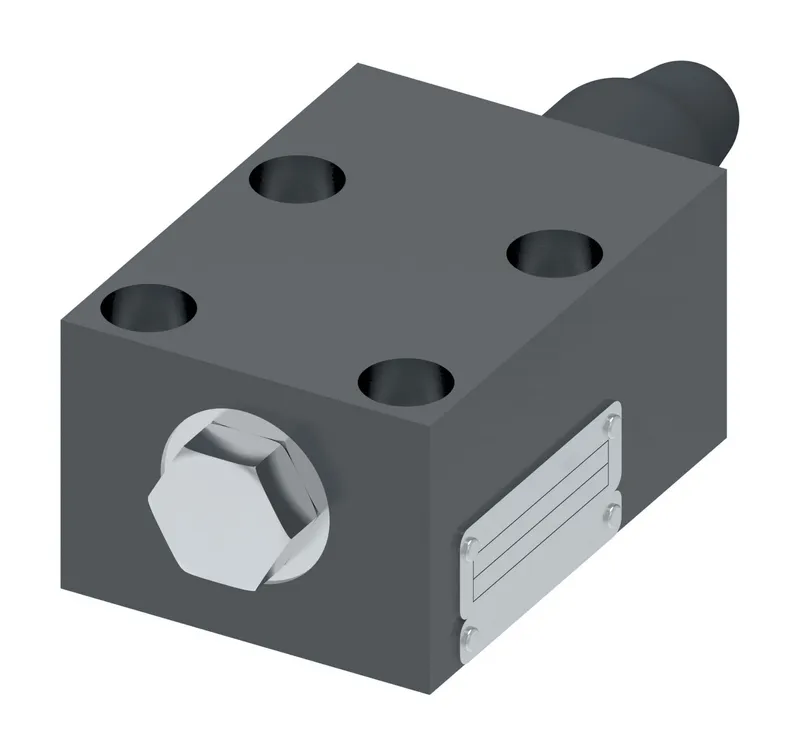

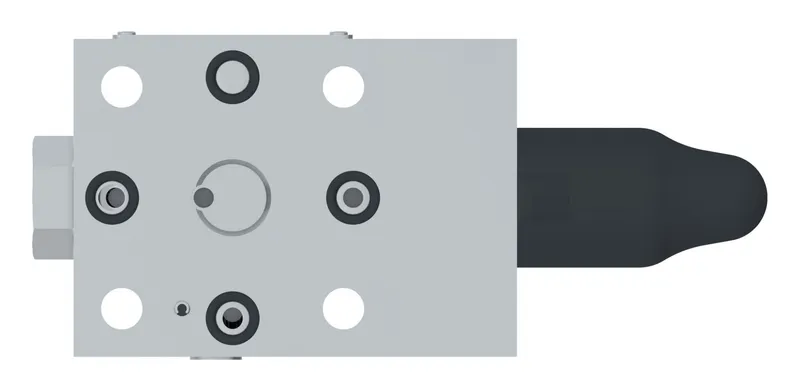

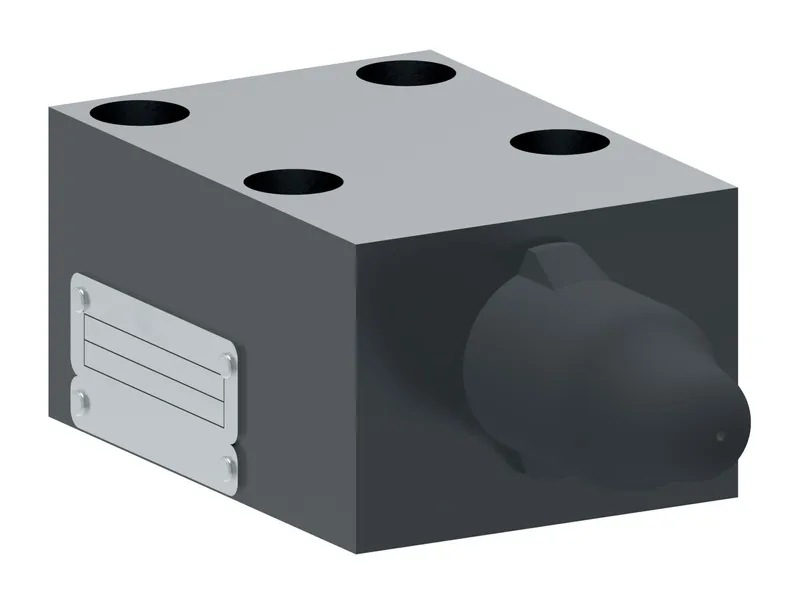

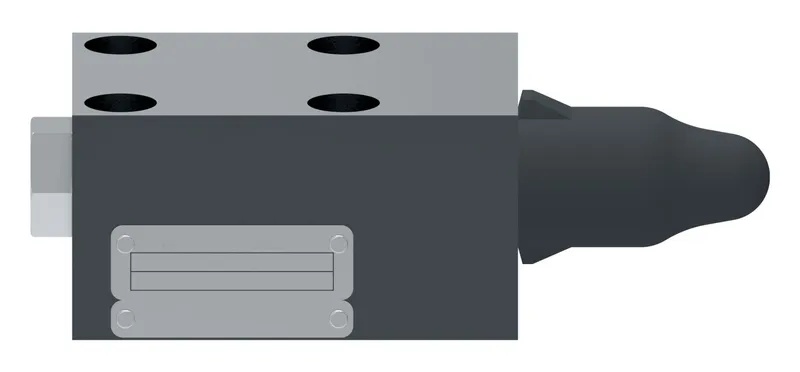

Danfoss 846AN00121A

CVCS-40-X-W-250-20, CVCS40XW25020

MPN: 846AN00121A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 846AN00121A?

Danfoss CVCS-40-X-W-250-20, CVCS40XW25020, manufacturer part number 846AN00121A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	Yes
Adjustment type	Wrench with hex locknut
Brand	Vickers by Danfoss
Cover type	Pressure reducer
Cracking pressure BAR	3.00
Cracking pressure PSI	44.0
Design Series	20 Design
Flow rate LPM	1025
Flow rate USGPM	255.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:1
Insert type	Pressure Reducer
Interface	No
Leakage	Standard
Model Code 1	CVCS40XW25020
Normal function	Normally closed
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.870
Product height mm	72.898
Product length in	7.290
Product length mm	185.166
Product width in	5.080
Product width mm	129.032
Seal material	Buna-N
Size	NG 40
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
