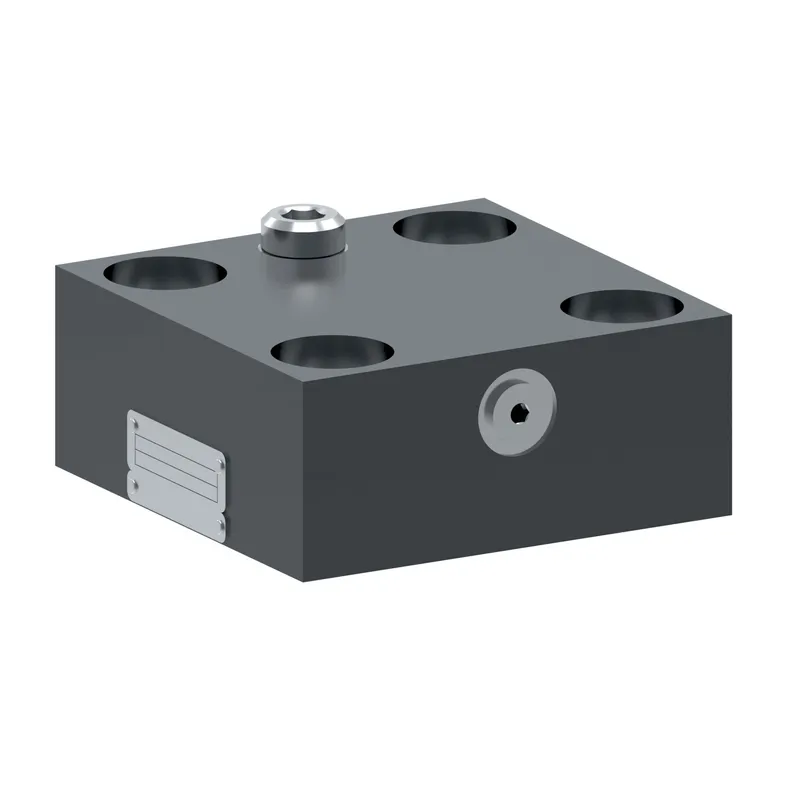

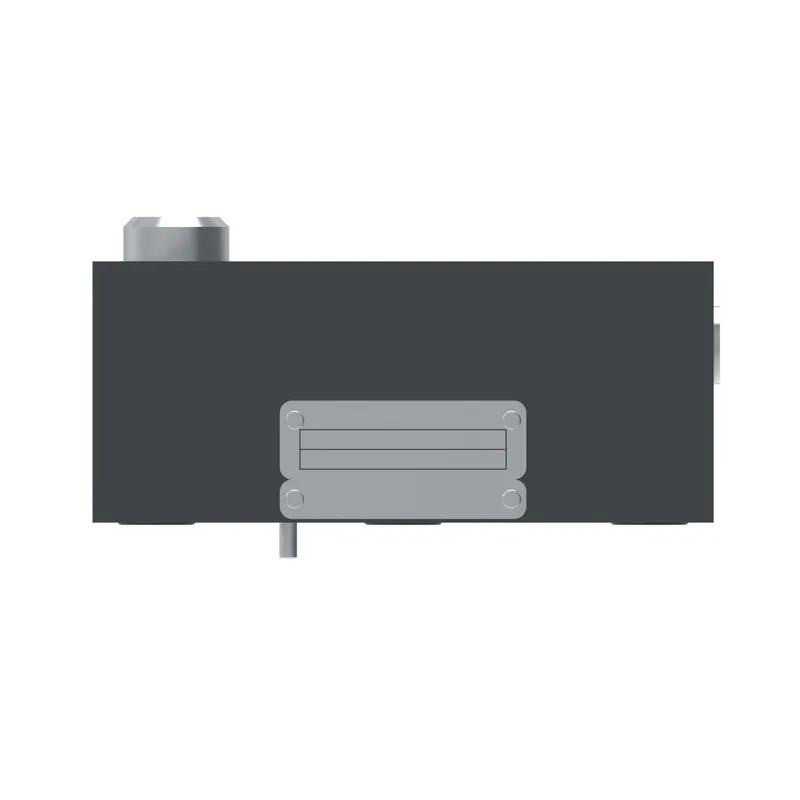

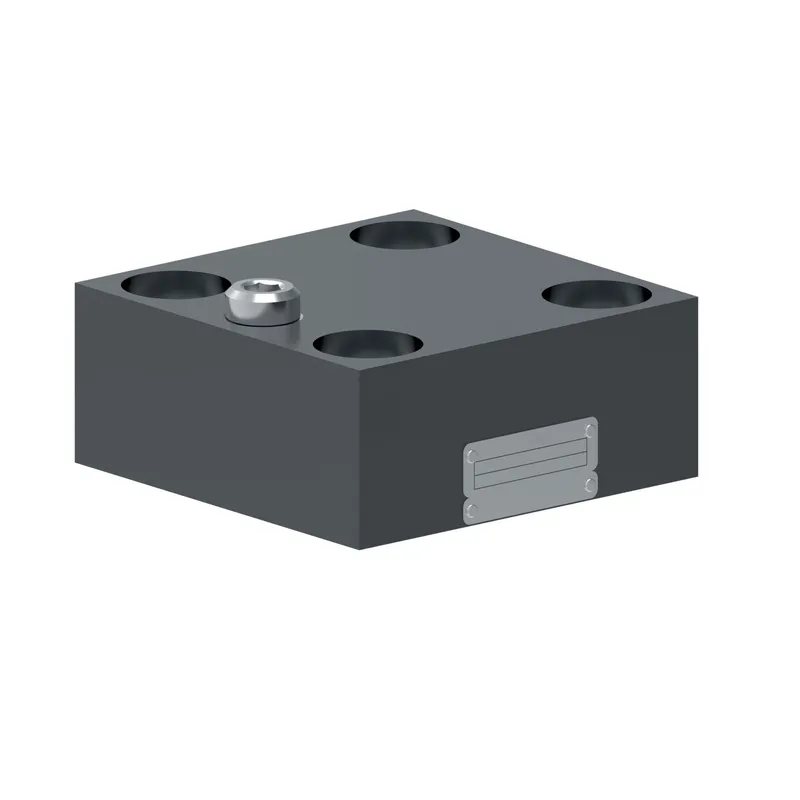

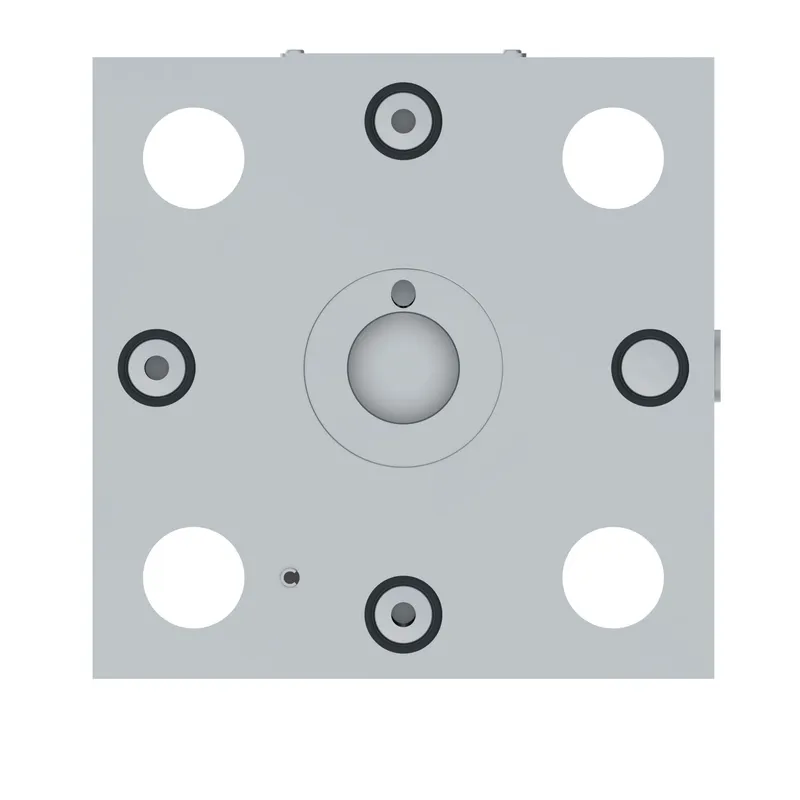

Danfoss 846AN00118A

CVCS-16-C025-20, CVCS16C02520

MPN: 846AN00118A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 846AN00118A?

Danfoss CVCS-16-C025-20, CVCS16C02520, manufacturer part number 846AN00118A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment	No
Brand	Vickers by Danfoss
Cover type	Cover for Area Ratio 1:0.25
Design Series	20 Design
Flow rate LPM	255
Flow rate USGPM	67.0
Fluid Cleanliness	18/16/13 micron
Fluid compatibility	Water Glycol, Water-in-Oil Emulsions and Petroleum Oil
Gauge port thread	SAE
Insert ratio	1:0.25
Insert type	1:0.25 area ratio
Interface	No
Leakage	Standard
Model Code 1	CVCS16C02520
Normal function	Normally open
Pilot port orientation	ISO
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	2.440
Product height mm	61.976
Product length in	2.720
Product length mm	69.088
Product width in	2.720
Product width mm	69.088
Seal material	Buna-N
Size	NG 16
Special feature	None
Spool position sensor	No
Valve type	Cartridge valve cover
Valvistor	No
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
