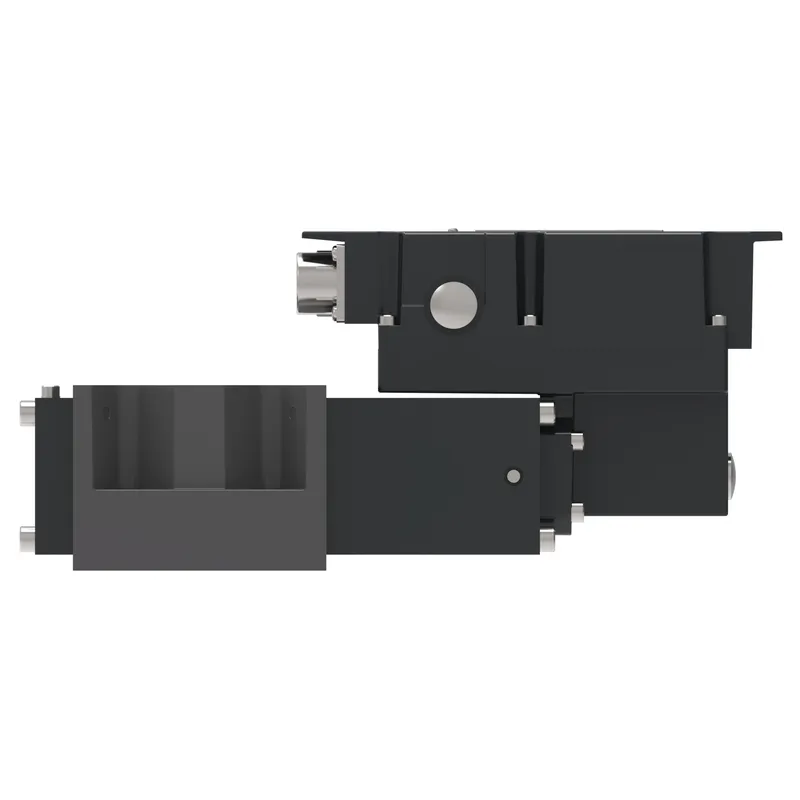

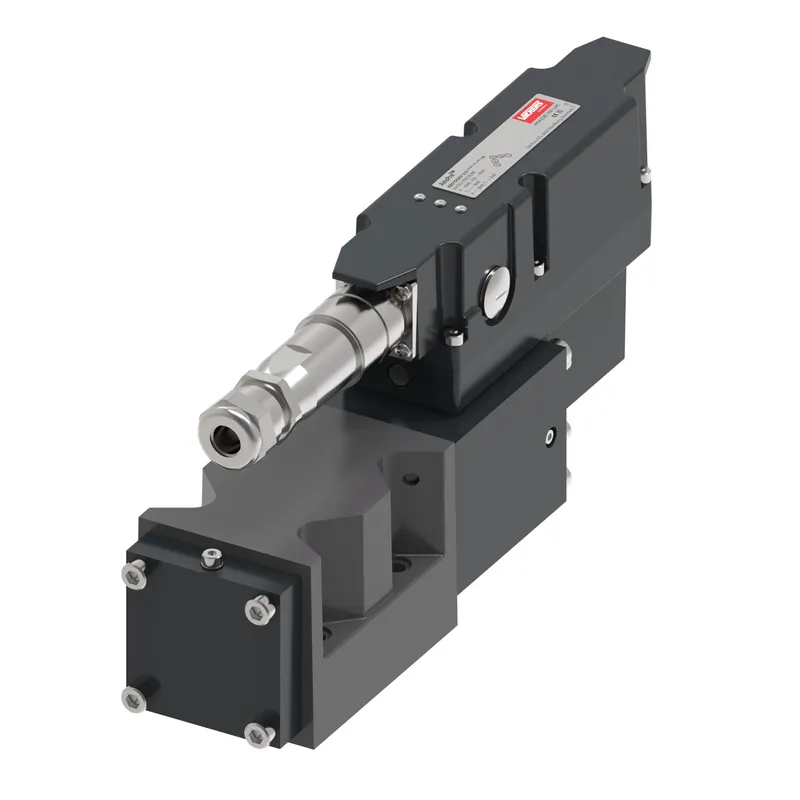

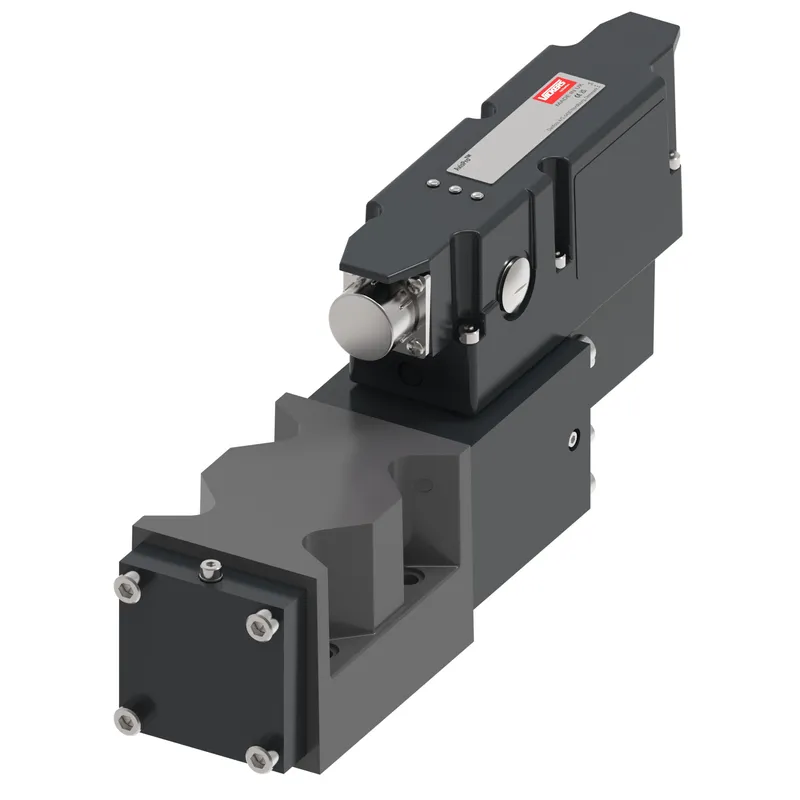

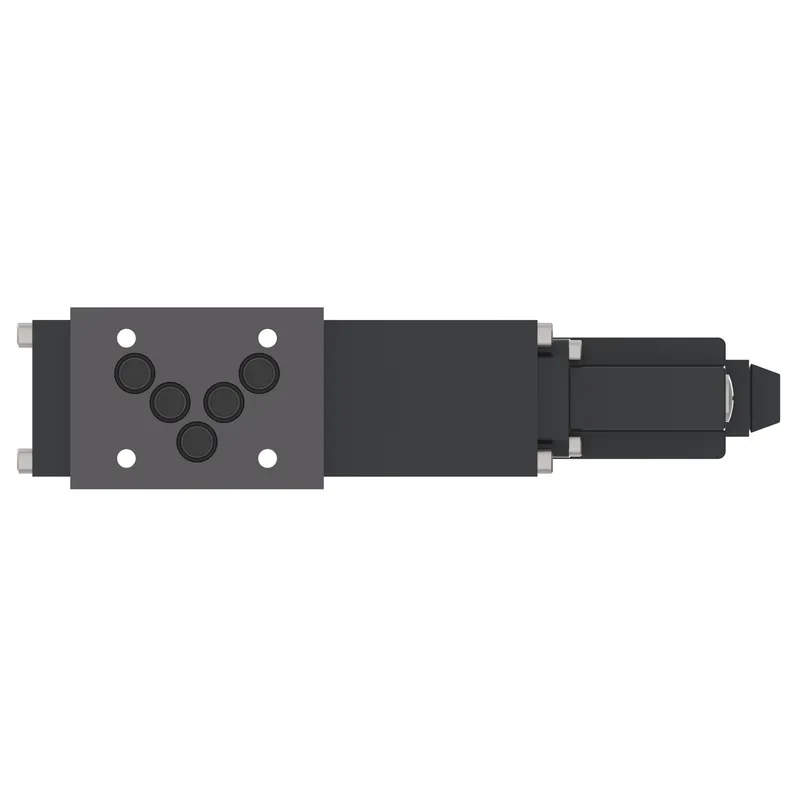

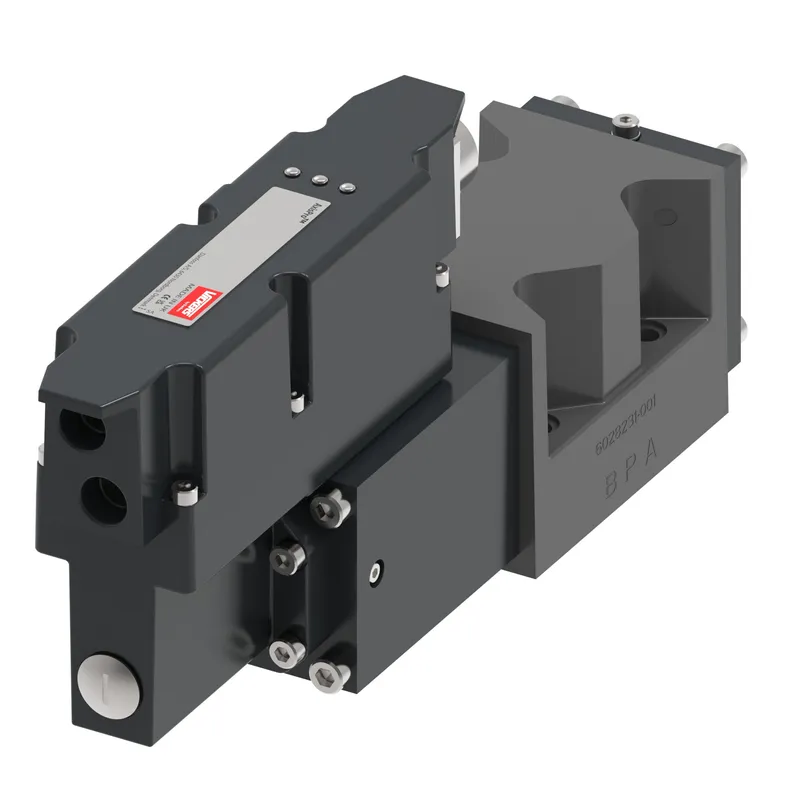

SERVO PROPORTIONAL- SIZE 05, KBSD14050000092L100N11C07NSN01H0010000000
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Industrial valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 84011928 be shipped?
84011928 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 84011928 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 84011928 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 84011928, subject to availability and destination.
Danfoss SERVO PROPORTIONAL- SIZE 05, KBSD14050000092L100N11C07NSN01H0010000000, manufacturer part number 84011928. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A Port flow LPM | 100.00 |
| A Port flow USGPM | 26.40 |
| Actuation | Solenoid operated single stage |
| Actuation Type | Solenoid controlled |
| B Port flow LPM | 100.00 |
| B Port flow USGPM | 26.40 |
| Brand | Vickers by Danfoss |
| Build orientation | Solenoid at B port end |
| Coil Rating & Overrides | 24 VDC Amplifier supply, water-resistant overrides |
| Coil voltage | 24 Volt DC |
| Command input | +/-10V Command +/- 10V feedback |
| Command Signal | +/- 10V Voltage |
| Communication protocol | None |
| Configuration level | Directional level - 1 |
| Design Series | 01 Series |
| Digital Comm. Interface | Not selected |
| Electrical Connection | Electrical (PC7) 7 pin connector without plug |
| Electrical Connections | 7 -PIN connector without plug, no enable |
| EN Series | Omit for standard |
| External Sensor | NONE |
| Feedback sensor | Yes |
| Fluid Cleanliness | 17/15/12 micron |
| Fluid compatibility | Antiwear hydraulic oils and non alkyl-based Phosphate Esters |
| Interface | ISO4401-05/NFPA D05/CETOP 5/NG10 |
| ISO Interface | ISO 4401 size-05 |
| Manual override | None |
| Maximum pressure BAR | 350 |
| Maximum pressure PSI | 5000 |
| Model | Industrial proportional valves |
| Model Code 1 | KBSD14050000092L100N11C07NSN01 |
| Model Code 2 | H0010000000 |
| Monitor Output | ±10V Voltage feedback signal |
| On board electronics | Yes |
| Performance | Servo |
| Pilot Supply & Drain Option | None_ |
| ProFX compatible | Yes |
| Reducer module | No |
| Reverse flow check | No |
| Seal type | Viton |
| Software Version | Software version -001 |
| Special features | None |
| Spool Type | ISO4401-10/NFPA D10/CETOP 10/NG32 |
| Stage | Single stage |
| Symmetric flow | Yes |
| Tank port rating BAR | 250 |
| Tank port rating PSI | 3600 |
| Valve Mount Type | Subplate |
| Valve type | AxisPro level 1 |
| Valve Type | Proportional valve with integrated amplifier and electronic feedback |
| Working temp max C | 70 |
| Working temp max F | 158 |
| Working temp min C | -40 |
| Working temp min F | -40 |
