Danfoss 831AN00008A

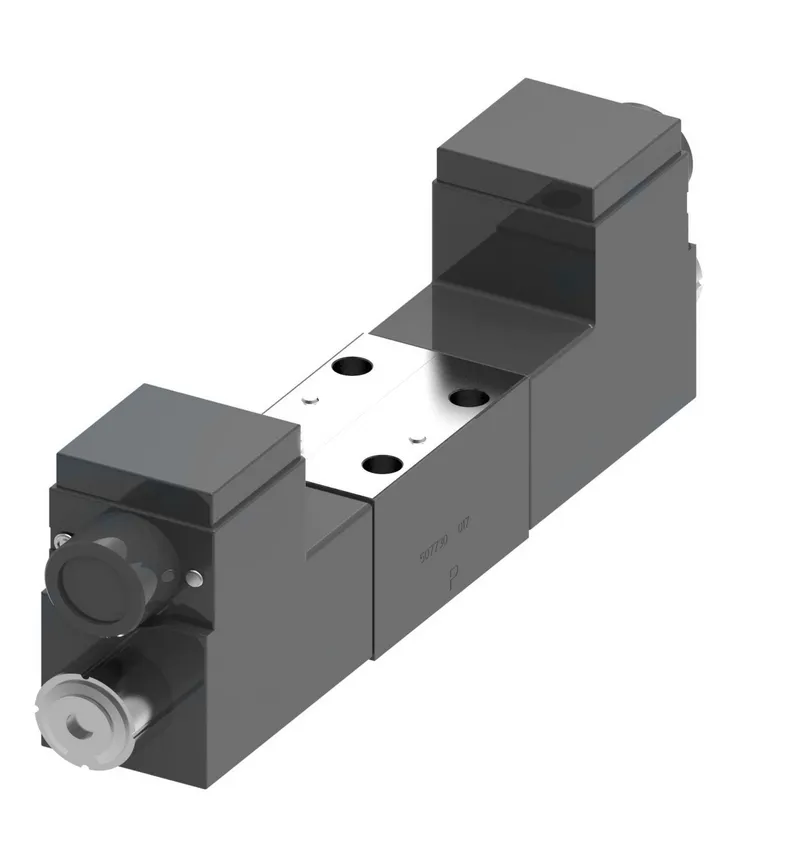

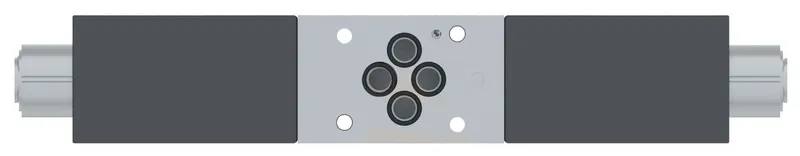

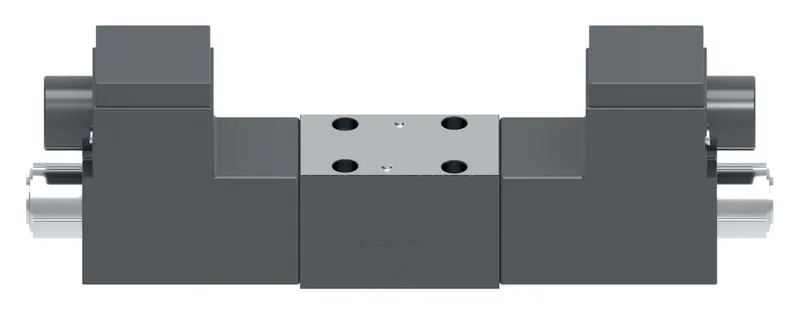

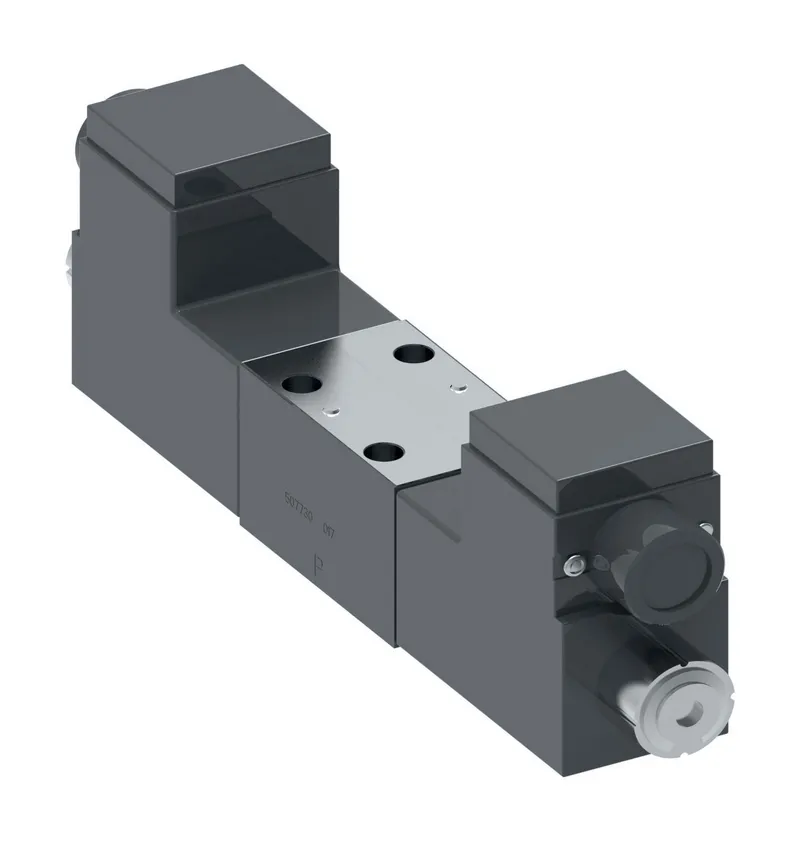

DG4V4-01-2C-M-X5-C4-10, DG4V4012CMX5C410

MPN: 831AN00008A
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 831AN00008A?

Danfoss DG4V4-01-2C-M-X5-C4-10, DG4V4012CMX5C410, manufacturer part number 831AN00008A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	220 VAC 50Hz
Design Series	10 Series
Electrical Connection	Atex ExdIIC2G zone 1&2 CSA/UL
Energ Time	100-100 ms
Flow rate upto GPM	30.0
Flow rate upto LPM	115.0
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-05/NFPA D05
Manual override	Plain
Model Code 1	DG4V4012CMX5C410
Performance	Standard performance
Power Consumption	20 watt
Pressure rating BAR	315
Pressure rating PSI	4500
Product height in	3.900
Product length in	12.070
Product length mm	306.578
Product width in	2.740
Product width mm	69.596
Seal type	Buna-N
Solenoid Energising ID	Standard as per ANSI B93 9
Solenoid Features	ATEX approval
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring centred
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	70
Tank port rating PSI	1000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
