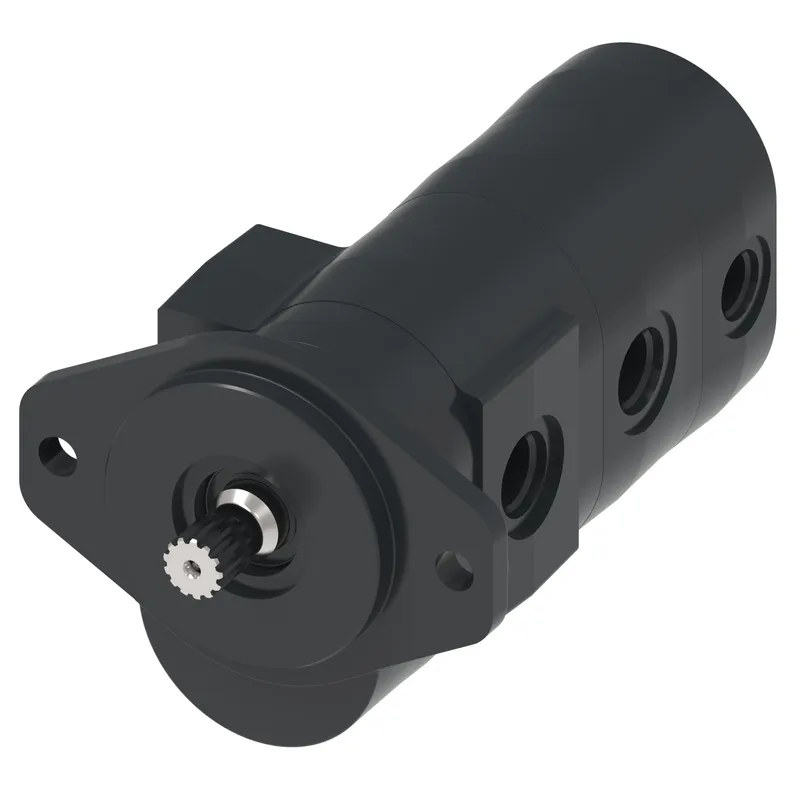

Danfoss 83146624

GEAR PUMP-LH, TRIPLE DISPL

MPN: 83146624
Category: Rugid cast iron gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83146624?

Danfoss GEAR PUMP-LH, TRIPLE DISPL, manufacturer part number 83146624. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product	D-series left-hand triple
Front displacement and input drive	22.5cc / splined shaft: SAE 13 tooth spline x 1.62 inch extension, for use with 1 inch journal bodies
Mounting flange	SAE B 2 bolt, for 1 inch shaft (BxxSV, BxxST, BxxTA, BxxPZ, BxxSQ)
Porting after first section	Bearing plate, 1 1/4 inch beaded tube inlet, 3/4 inch code 61 outlet
Second section displacement	17 cc [1.04 CIR]
Porting prior to rear cover	Bearing plate, 1 5/16-12 ORB inlet, 1 1/16-12 ORB outlet
Rear displacement	7.0cc [0.43 CIR]
Rear cover and porting	Cover, dump, no inlet, 3/4 inch ORB outlet, 7/8 inch ORB dump/relief outlet
Control setting	12V dump valve with cartridge (69-276 bar) relief valve, Metripack connector
Relief valve pressure	269 bar [3900 psi]
Screws	BJ: Screws
Nameplate	Bobcat part number on Bobcat nameplate
Special features	Standard black paint
Proposition 65	Cancer and Reproductive Harm
Size/Dimensions	0.001
