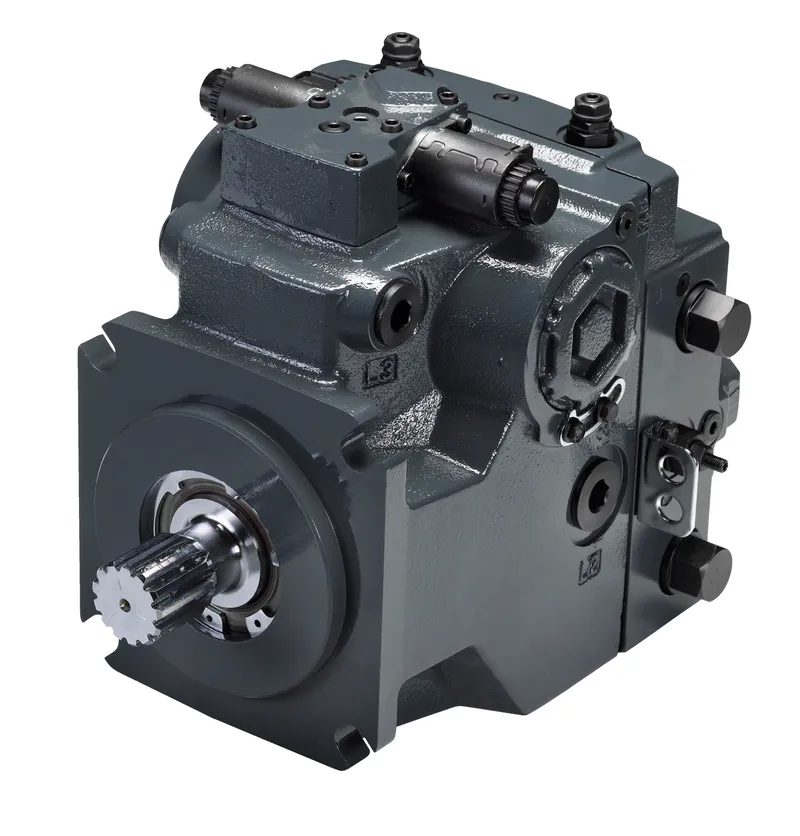

PUMP-VAR-DISPL CW H1PV115
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mobile closed-circuit piston pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 83146608 be shipped?
83146608 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 83146608 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 83146608 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83146608, subject to availability and destination.
Danfoss PUMP-VAR-DISPL CW H1PV115, manufacturer part number 83146608. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Series | H1 - Series |
| Product type | Variable pump |
| Frame Size | 115cc/rev max/variable displacement |
| Rotation | Right hand - clockwise |
| Product version | Product version B |
| Configuration of ports | ANSI O-ring boss port configuration |
| Control | Fan drive control, 24V Deutsch DT04-2P connector, side C1 solenoid |
| Orifices | P = none, A+B = 1.3mm, TA+TB = none |
| Displacement limitation | Adjustable externally advanced control/non-feedback proportional electric (nested springs) |
| Endcap type | Twin port, code 62 metric 4 bolt flange, integral pressure filter |
| Mounting flange | SAE D 4 bolt flange |
| Input shaft | 13 tooth, 8/16 |
| Auxiliary pad | 13 tooth, B pad |
| Protection type side A | Pressure limiter, high pressure relief valve, for fan drive control |
| High pressure setting side A | 150 bar pressure limiter / 250 bar high pressure relief valve (PL are field adjustable from 150 bar to 200 bar) |
| Protection type side B | Pressure limiter and high pressure relief valve designed for fan drive control |
| High pressure setting side B | 150 bar pressure limiter/ 250 bar high pressure relief valve, (pressure limiter are field adjustable from 150 bar to 200 bar) |
| Charge pump | 26cc/rev |
| Filtration | Integral full flow with filter bypass sensor |
| Charge relief pressure setting | 22 bar charge pressure relief valve |
| Special hardware features | Automative control /non-feedback proportional electric/fan drive control valve plate |
| Paint and nametag | Black paint, Danfoss tag A |
| Settings | Default, no special settings |
| Proposition 65 | Cancer and Reproductive Harm |
