Home / Danfoss (Drives) / Series 45 open-circuit axial piston pumps / Danfoss 83123776

Danfoss (Drives)

Danfoss 83123776

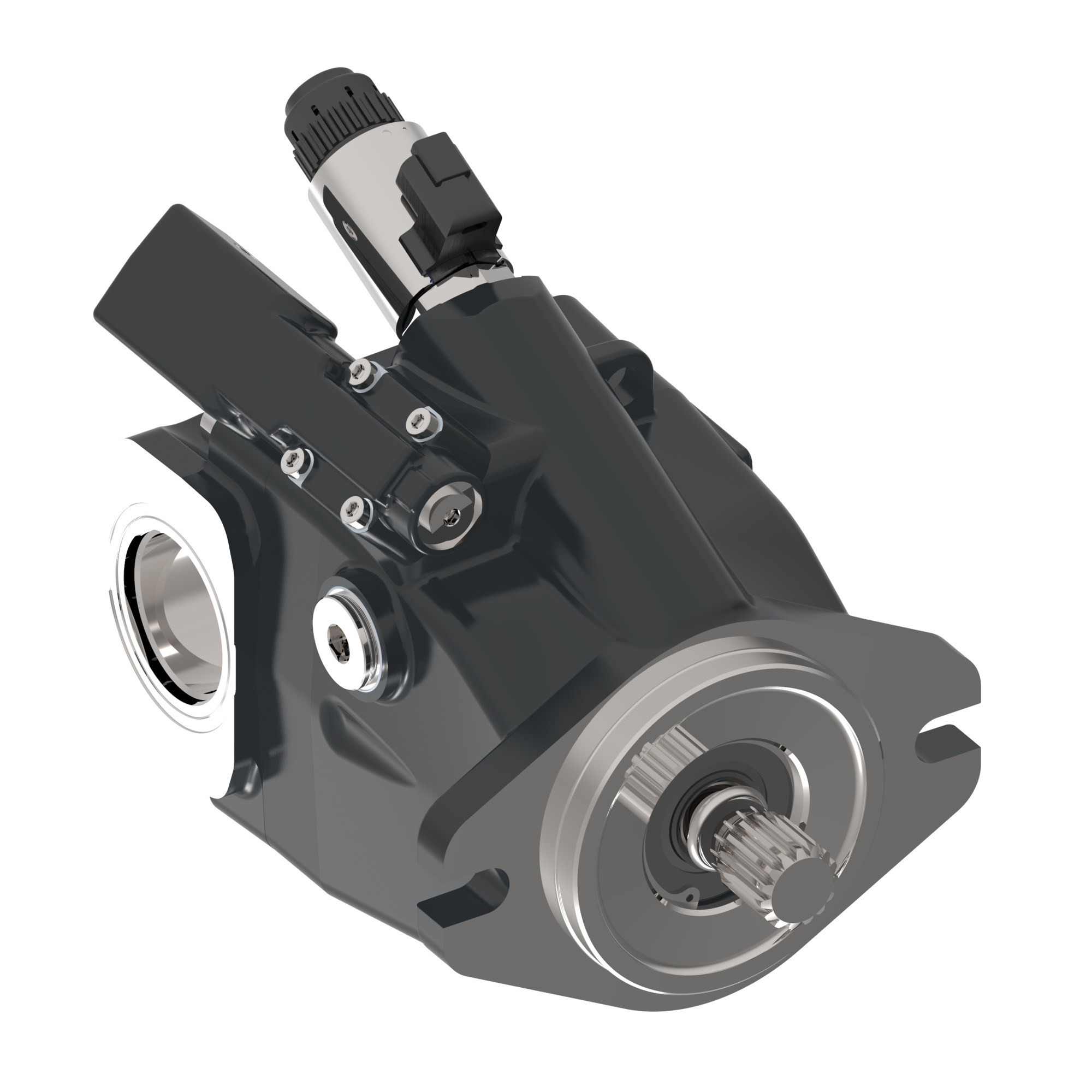

PUMP-VAR DISPL, CCW S45PVOC_K2

MPN: 83123776
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 83123776?

Danfoss PUMP-VAR DISPL, CCW S45PVOC_K2, manufacturer part number 83123776. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	K2 frame axial piston open circuit pump
Rotation	Counter-clockwise rotation
Displacement and load life	45 cc/rev - 260 bar maximum continuous rated pressure
Control type	Pressure compensated / load sensing [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	260 bar [3770 psi]
Load sensing setting	21 bar [305 psi]
Torque limiter setting	Not applicable
Choke orifice	None
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	K1DR=.875SK,RD,1.5/1(MM),B_K2
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-B 2-bolt flange, metric O-ring ports
Displacement limiter	None
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm
