Danfoss 83109309

GEAR PUMP-LH, SINGLE DISPL

MPN: 83109309
Category: Rugid cast iron gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

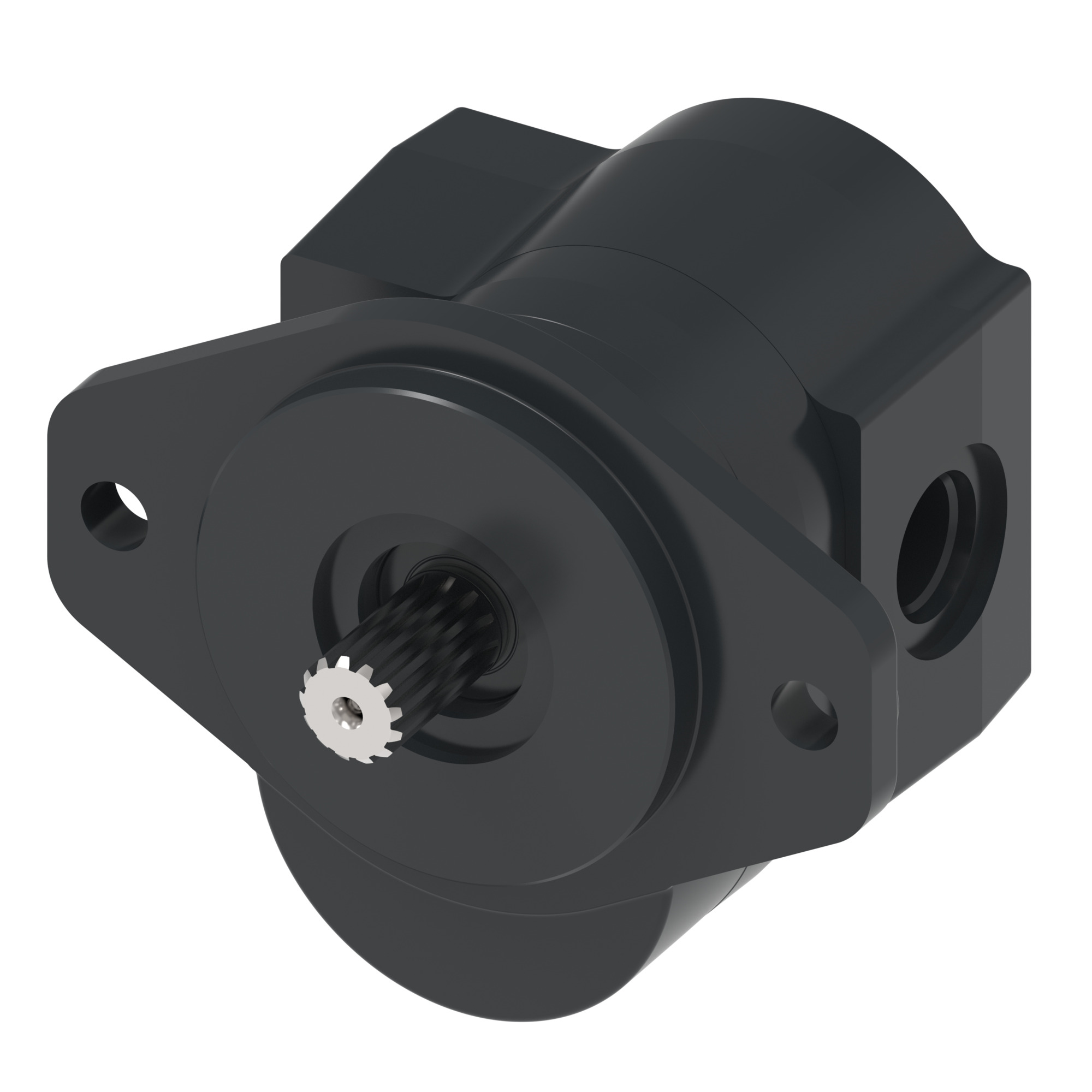

What is the Danfoss 83109309?

Danfoss GEAR PUMP-LH, SINGLE DISPL, manufacturer part number 83109309. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product	D-series right-hand single
Front displacement and input drive	31.8cc / splined shaft: SAE 11 tooth spline x 1.50 inch extension
Mounting flange	SAE A 2 bolt, for integral LS/PFD cover
Rear cover and porting	Cover, PFD, 1 5/8-12 ORB rear inlet, 3/4-16 ORB CF rear outlet, 7/8-14 ORB EF rear outlet
Control setting	5 GPM [18.9 l/m] PFD
Relief valve pressure	159 bar [2300 psi]
Screws	EU: Screws
Nameplate	Standard nameplate
Special features	Standard black paint
Proposition 65	Cancer and Reproductive Harm

83109309: frequently asked questions

When can 83109309 be shipped?

83109309 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83109309 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83109309 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83109309, subject to availability and destination.
