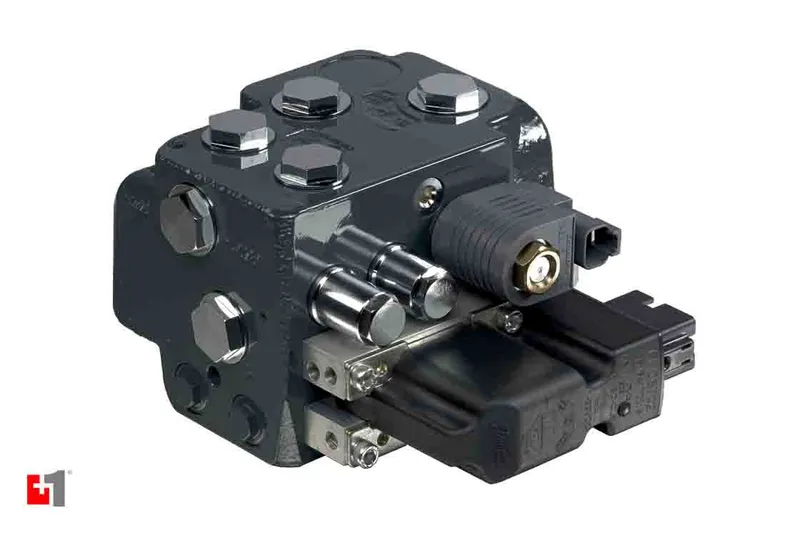

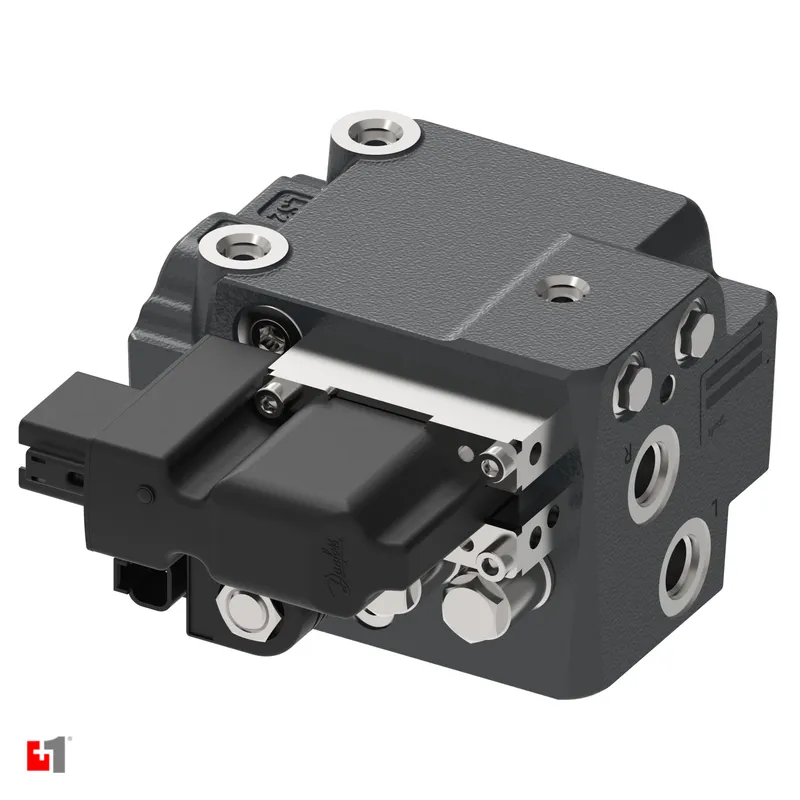

Danfoss 83109299

EHI STEERING VALVE

MPN
83109299
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109299?

Danfoss EHI STEERING VALVE, manufacturer part number 83109299. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Product typeEHi
Electrohydraulic flow, nominal50 L/min
Circuit typeLoad sense dynamic
Pilot unit typeReaction
DisengageHydraulic
LS1 signal (external)Dynamic
Integrated priority valveFor system with nominal pump flow above 45 l/min
Excess flowExcess flow available
Integrated priority valve typeStatic
Integrated priority valve spring10 bar spring
Pressure resolver (PVFC)With check valves
Relief valve connectionBuild-in relief valve will only limit EHi steering pressure. If pilotunit is present additional relief valve to limit steering pressure inpilot unit will be needed.
Ports standardISO 6149-1
Ports sizeP,T,*EF: M22CL,CR,*L,*R,*CF: M18LS1,*LS2: M18*if machined
LS1 portSteel plug
LS2 portPlastic plug
EF portPlastic plug
P and T front portsPlastic plugs
P and T side portsSteel plugs
CL and CR portsPlastic plugs
L and R portsPlastic plugs
CF portNot available
PVE actuatorPVED-CLS s5 Deutsch (SIL2)
Firmware versionStandard
Firmware revision2.02
Firmware packageNot applicable
Additional informationNo additional info
Cut off connectorDeutsch
Cut off coil voltage24 VDC
Relief valve setting180-190 Bar
Shock valve setting230-253 bar
Dynamic orificeStatic. No dyn. orifice
PP orificeRegular. 0.7 mm PP orifice
LS orificeRegular. 1.2 mm LS orifice
Reaction SwitchChoose this option if orbital displacement is higher than 300 cc/rev
Special featureNo special feature
Product LabelDanfoss Standard Label
PaintPainted black
Software IDSWID003235
LabelDanfoss Standard Label
Proposition 65Cancer and Reproductive Harm

83109299: frequently asked questions

When can 83109299 be shipped?

83109299 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83109299 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83109299 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83109299, subject to availability and destination.
