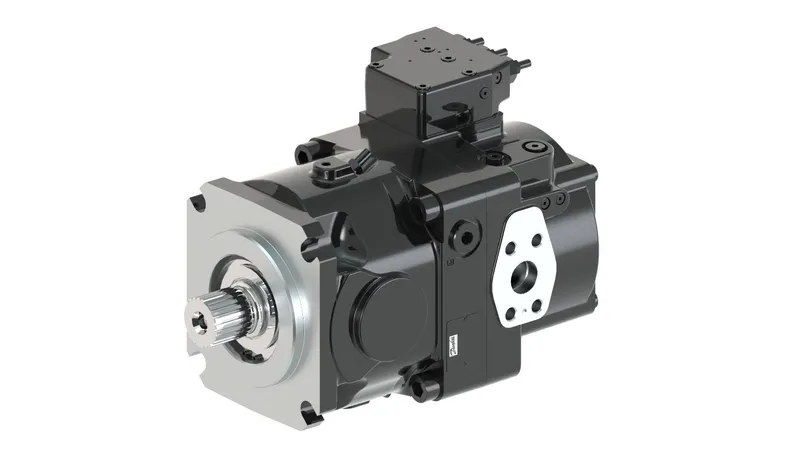

Danfoss 83109151

PUMP-VAR DISPL, D1P130

MPN: 83109151
Category: D1P open-circuit high-power axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109151?

Danfoss PUMP-VAR DISPL, D1P130, manufacturer part number 83109151. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

D1P Product	D1P variable axial piston pump
Displacement	130cc/rev max/variable displacement
Rotation	Left hand - counter clockwise
Product version	Product version A
Control type	Power control + pressure compensated control + positive electric displacement control, 24V Deutsch 2 pin connector. The controloutline and size is the same as with 193 TPE2 control
Input shaft	Spline Shaft SAE J744, D1P065 14T 12/24 DP, D1P130~290 13T 8/16 DP
Front mounting flange	SAE J744 152-4 (D)
Endcap	Radial side flange ports inlet: SAE J518, 3 inch, M16x2 outlet: SAE J518, 1 inch, M12x1.75 without impeller
Auxiliary flange	SAE J744 127-2&4 (C), spline coupling: 1 1/4in 14 tooth 12/24 diametrical pitch
Power control setting	105 kW power control setting @ 1500 rpm
Pressure compensator setting	350 bar pressure compensated control setting
Load sense setting	No load sensing control
Hydraulic displacement control start pressure setting	No hydraulic displacement control
Maximum displacement setting	100% of maximum displacement
Minimum displacement setting	0% of displacement
Special hardware	No special hardware
Special feature	Black paint, Danfoss tag, format A, without control oil filter
Proposition 65	Cancer and Reproductive Harm
