Danfoss (Drives)

Danfoss 83109142

PUMP-VAR DISPL, CW S45PVOC_K2

MPN: 83109142
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109142?

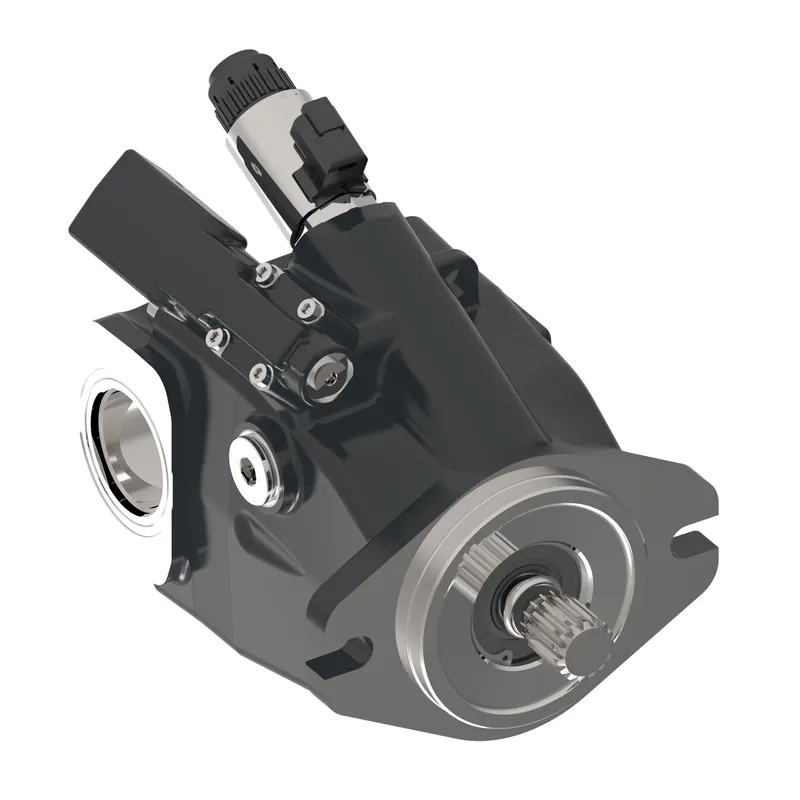

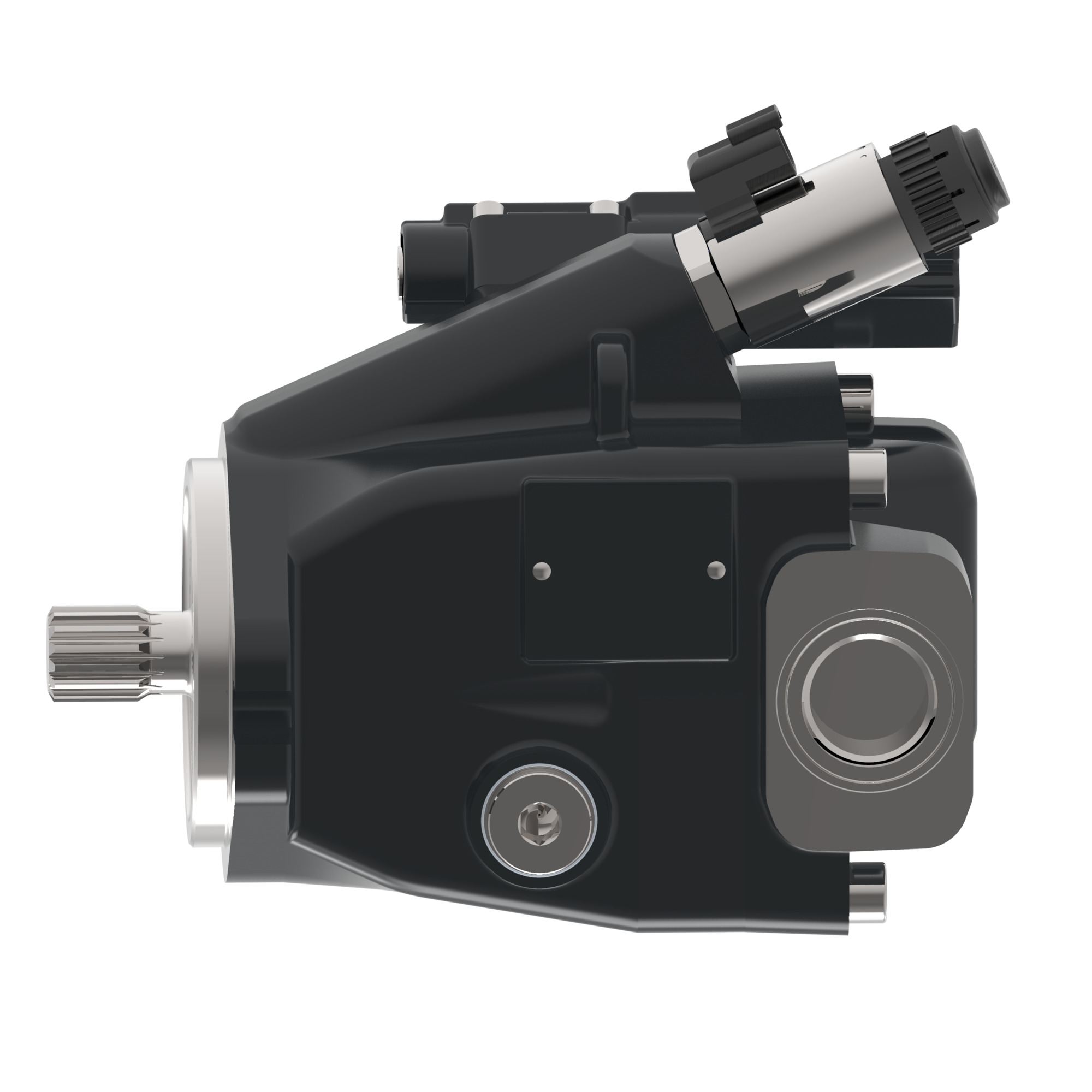

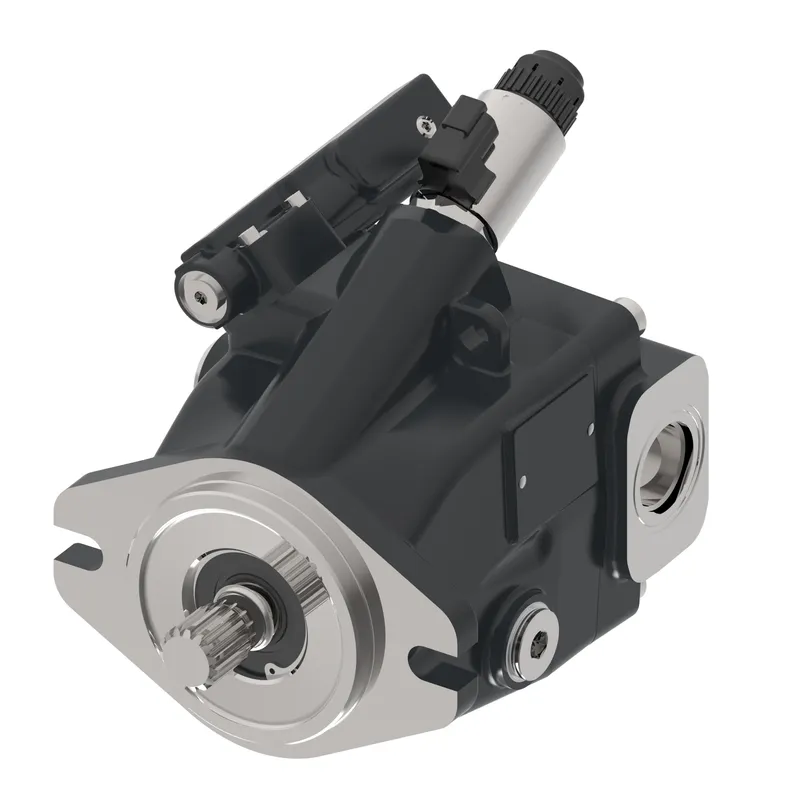

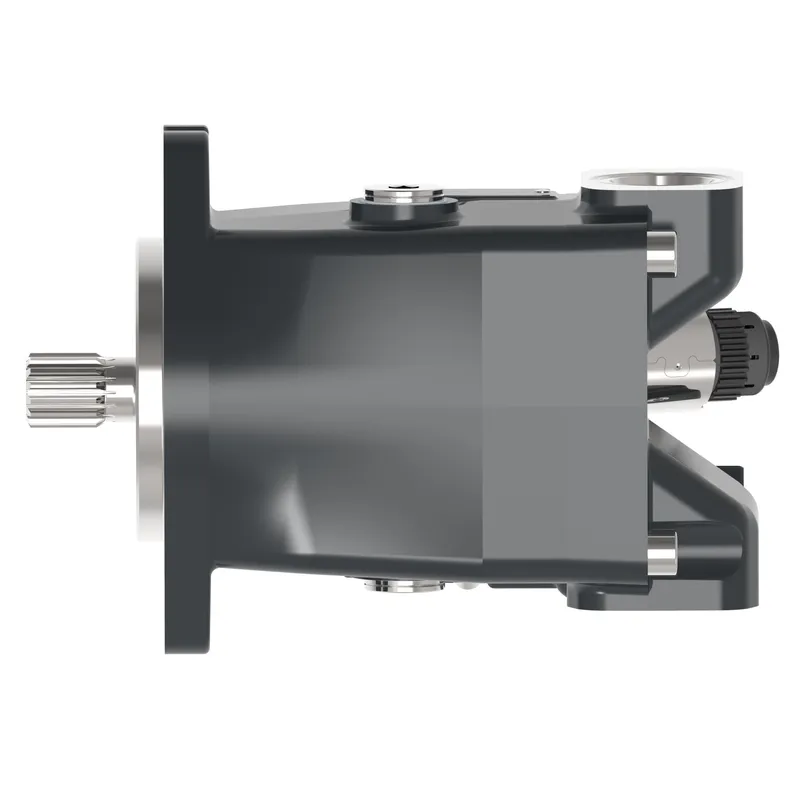

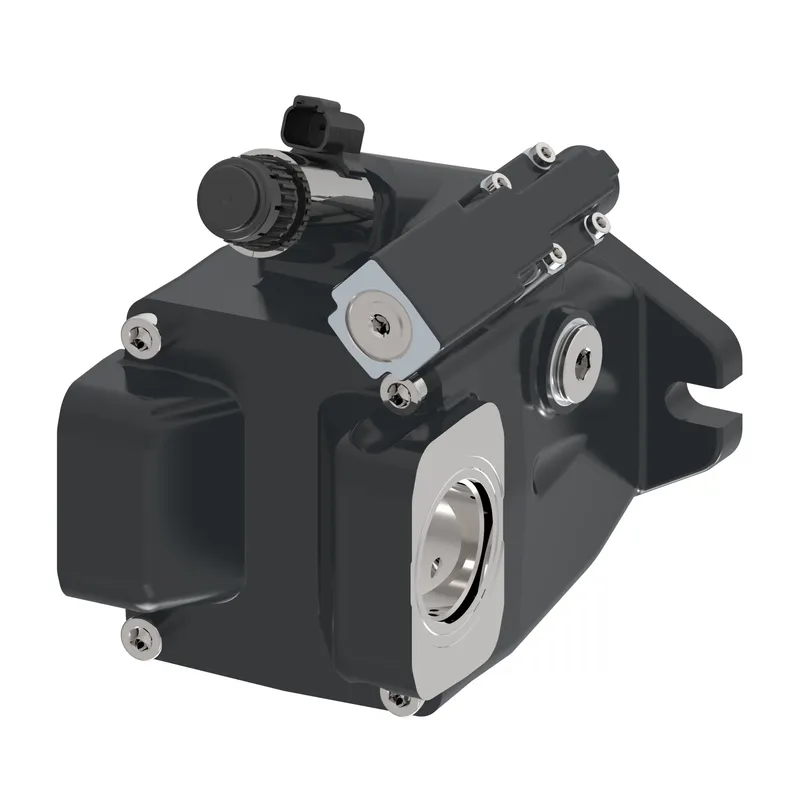

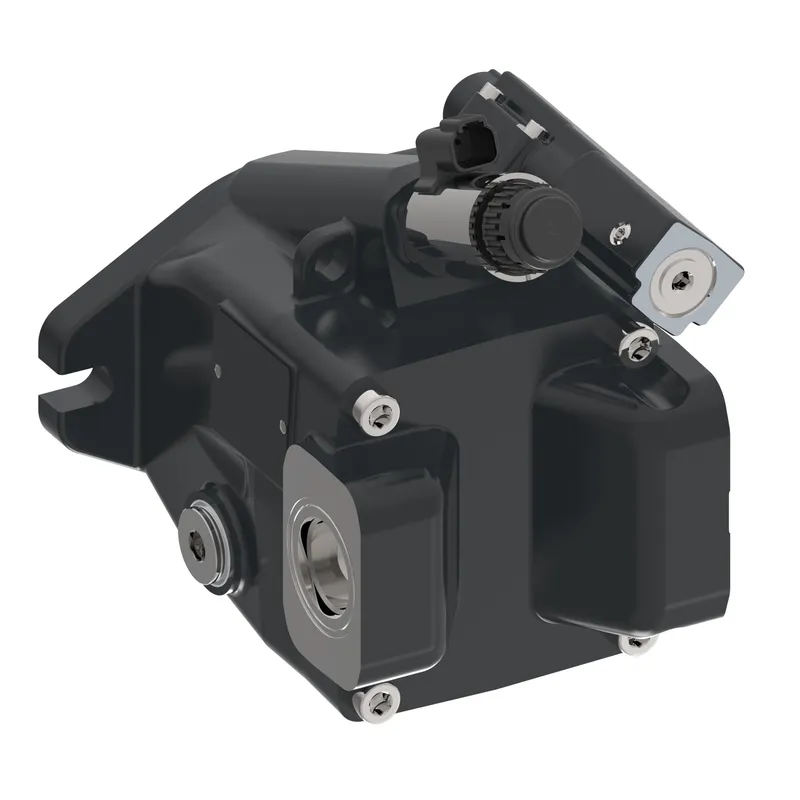

Danfoss PUMP-VAR DISPL, CW S45PVOC_K2, manufacturer part number 83109142. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	K2 frame axial piston open circuit pump
Rotation	Clockwise rotation
Displacement and load life	38 cc/rev - 260 bar maximum continuous rated pressure
Control type	Pressure compensated / load sense capability, electric proportional-solenoid left, 24VDC normally-open Deutsch [PC pressure range:100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	260 bar [3770 psi]
Load sensing setting	20 bar [290 psi]
Torque limiter setting	Not applicable
Choke orifice	0.8 mm diameter orifice - servo control orifice
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	13 tooth 16/32 pitch shaft, SAE-B 13 tooth auxiliary, radial, inlet: metric O-ring boss port (M48 thread), outlet: metric O-ringboss port (M33 thread)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-B 2-bolt flange, metric O-ring ports
Displacement limiter	None
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm

83109142: frequently asked questions

When can 83109142 be shipped?

83109142 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83109142 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83109142 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83109142, subject to availability and destination.
