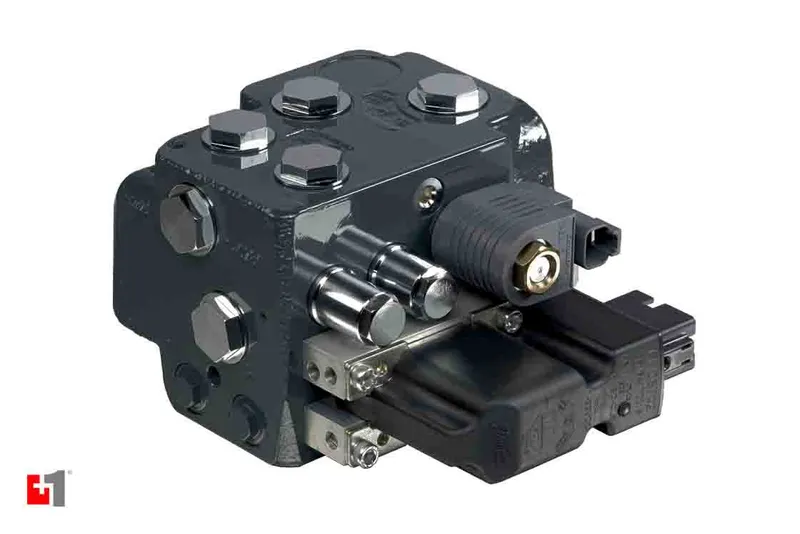

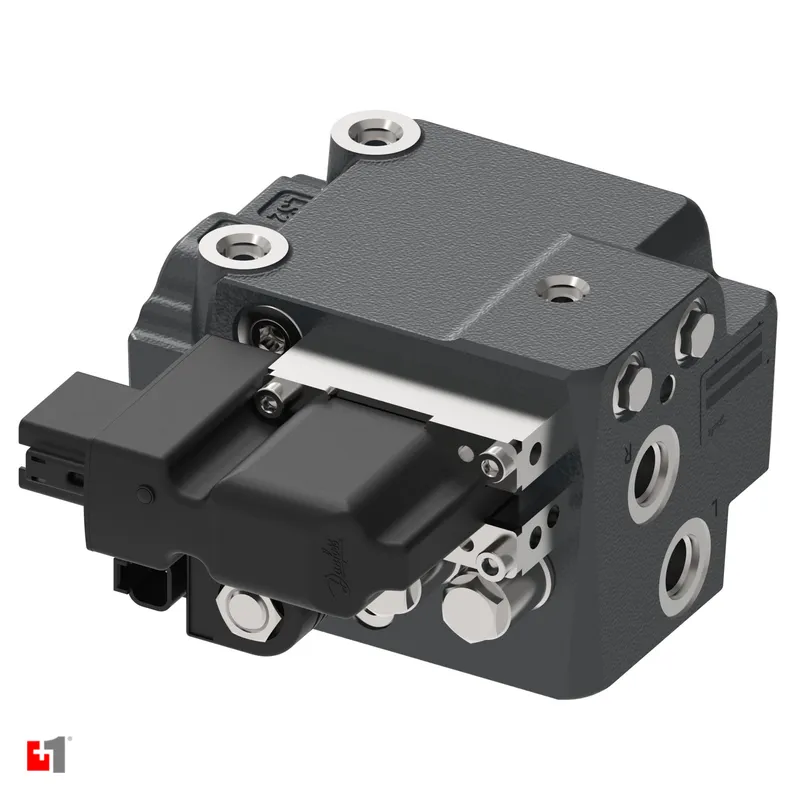

Danfoss 83109017

EHI STEERING VALVE

MPN
83109017
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109017?

Danfoss EHI STEERING VALVE, manufacturer part number 83109017. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Product typeEHi
Electrohydraulic flow, nominal70 L/min
Circuit typeLoad sense dynamic
Pilot unit typeReaction
DisengageHydraulic
LS1 signal (external)Dynamic
Integrated priority valveWithout integrated valve
Excess flowNo excess flow
Integrated priority valve typeNo Priority valve
Integrated priority valve springNo priority spool
Pressure resolver (PVFC)Without check valves
Relief valve connectionBuild-in relief valve will only limit EHi steering pressure. If pilotunit is present additional relief valve to limit steering pressure inpilot unit will be needed.
Ports standardISO 6149-1
Ports sizeP,T,*EF: M22CL,CR,*L,*R,*CF: M18LS1,*LS2: M18*if machined
LS1 portPlastic plug
LS2 portPlastic plug
EF portNot available
P and T front portsPlastic plugs
P and T side portsSteel plugs
CL and CR portsPlastic plugs
L and R portsPlastic plugs
CF portNot available
PVE actuatorPVED-CLS s5 Deutsch (SIL2)
Firmware versionStandard
Firmware revision2.02
Firmware packageNot applicable
Additional informationNo additional info
Cut off connectorDeutsch
Cut off coil voltage12 VDC
Relief valve setting240-250 Bar
Shock valve setting280-308 bar
Dynamic orificeNo priority spool
PP orificeNo priority spool
LS orificeRegular. 1.2 mm LS orifice
Reaction SwitchChoose this option if orbital displacement is higher than 300 cc/rev
Special featureNo special feature
Product LabelDanfoss Standard Label
PaintPainted black
Software IDSWID002792
LabelDanfoss Standard Label
Proposition 65Cancer and Reproductive Harm
