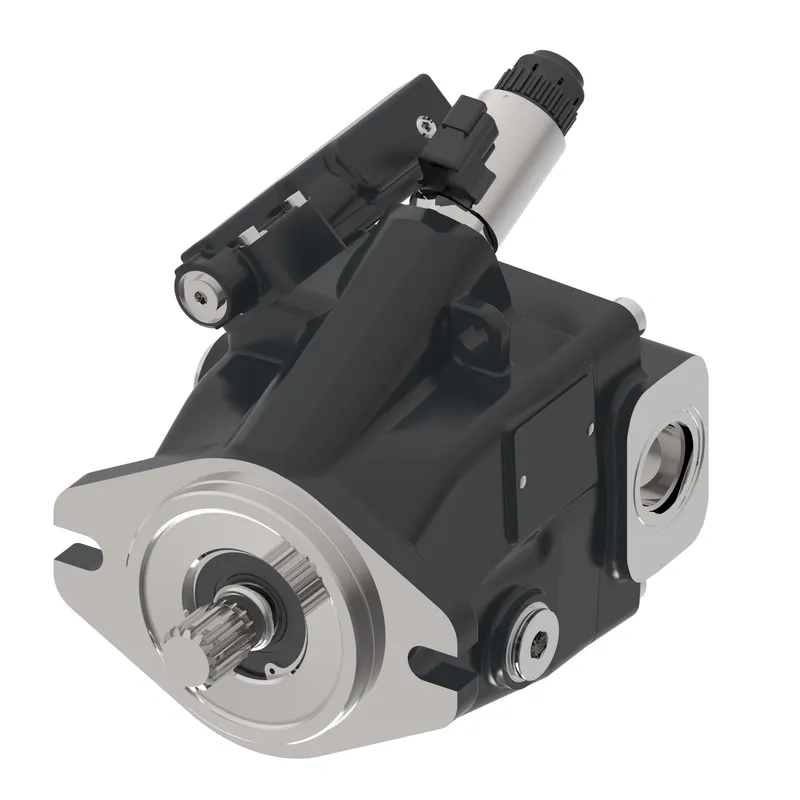

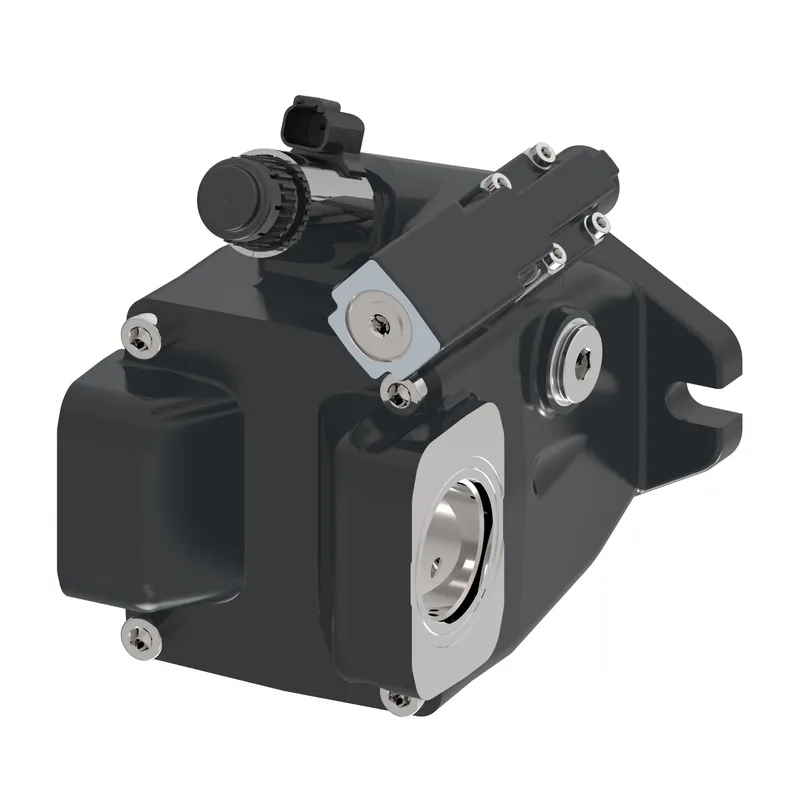

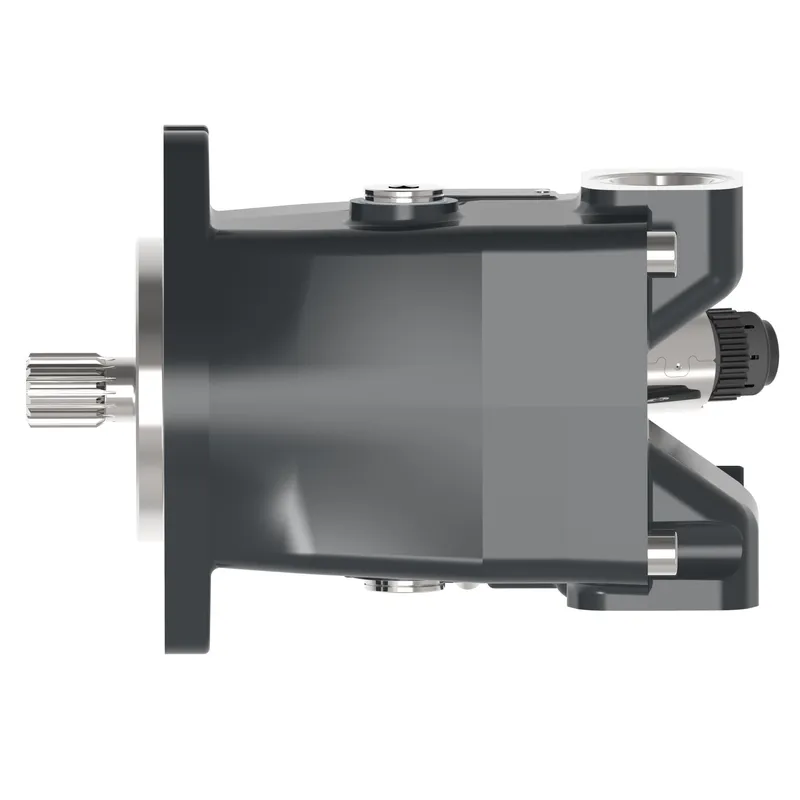

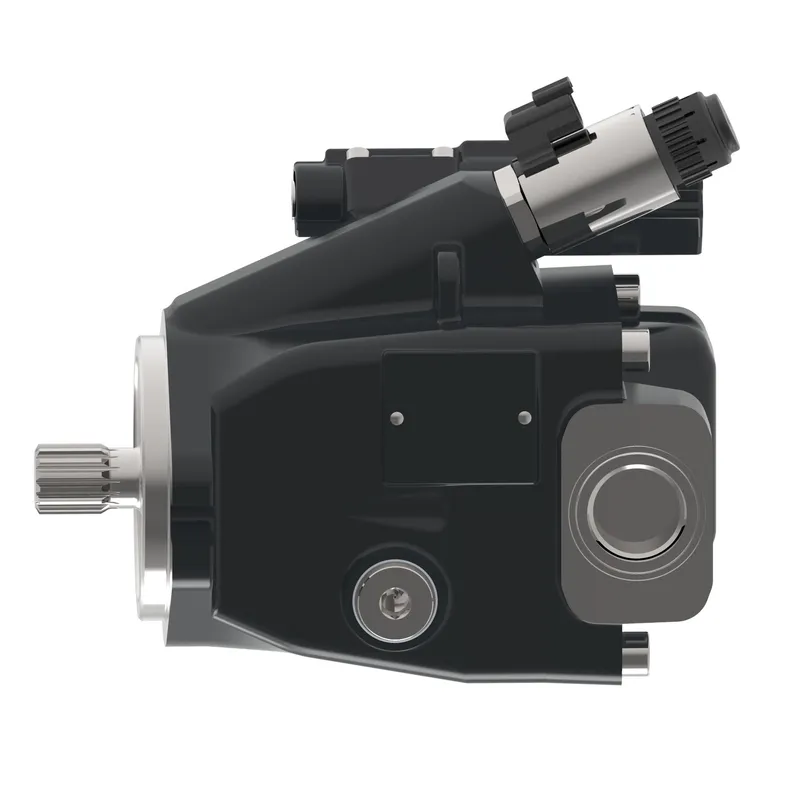

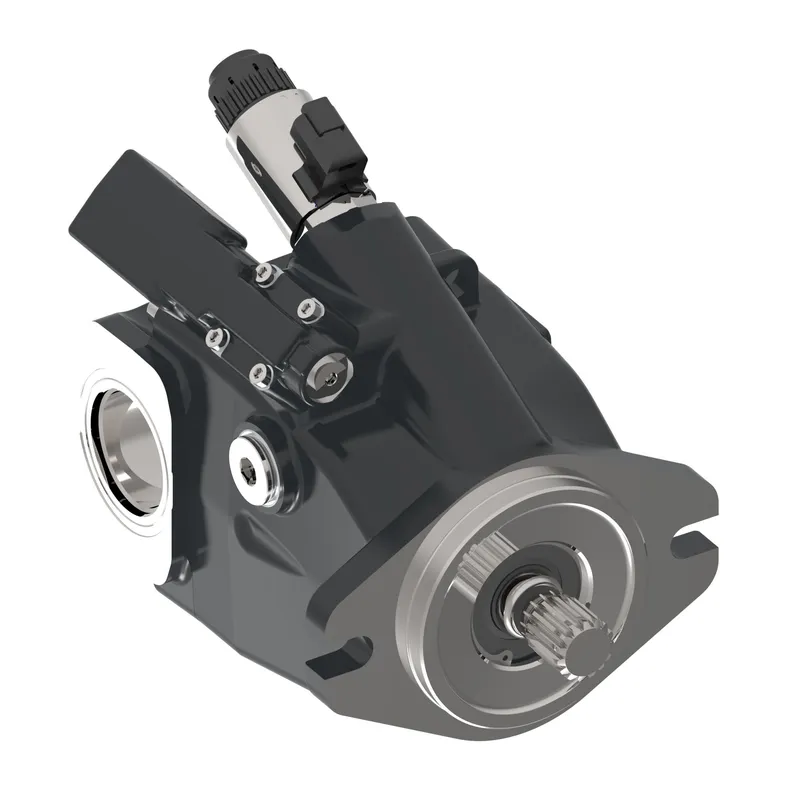

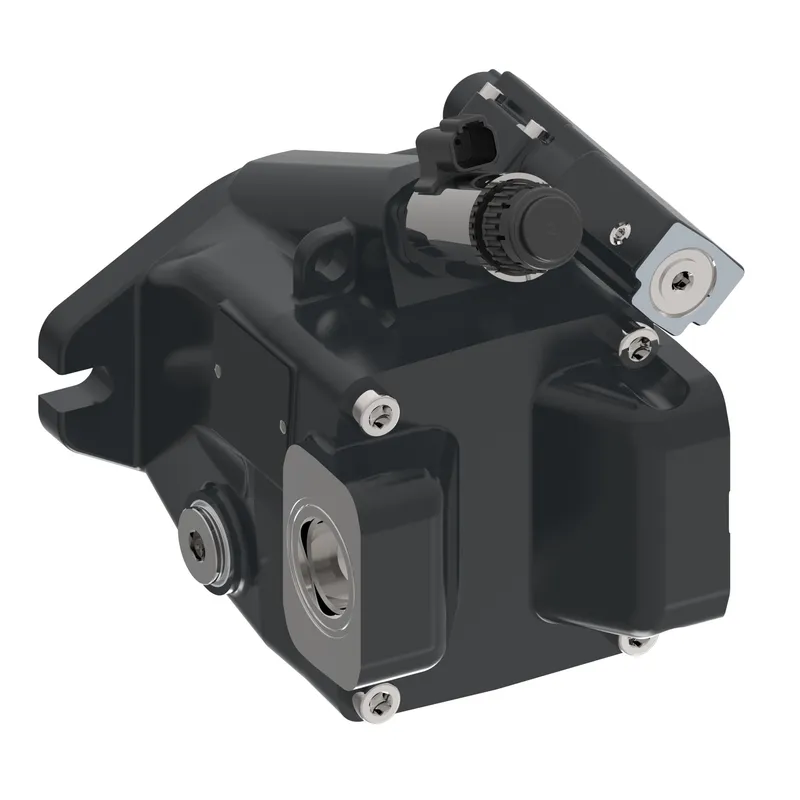

Danfoss 83109002

PUMP-VAR DISPL, CW S45PVOC_K2

MPN
83109002
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83109002?

Danfoss PUMP-VAR DISPL, CW S45PVOC_K2, manufacturer part number 83109002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

FrameK2 frame axial piston open circuit pump
RotationClockwise rotation
Displacement and load life45 cc/rev - 260 bar maximum continuous rated pressure
Control typeElectric fan drive control, 12VDC, proportional pressure decreasing functionality (NC), Deutsch connector left [PC pressure range:100-210 bar]
Pressure compensator setting210 bar [3045 psi]
Load sensing settingNot applicable
Torque limiter settingNot applicable
Choke orifice0.8 mm diameter, fan drive control, servo choke orifice
Gain orifice1.2 mm diameter orifice, fan drive control, gain orifice
Shaft, auxiliary flange, and endcap13 tooth 16/32 pitch shaft, SAE-A 9 tooth auxiliary, radial, inlet: SAE O-ring boss port (1.875 inch threads), outlet: SAE O-ringboss port (1.3125 inch threads), control right side, with displacement limiter
Shaft seal, front flange, and housing portsSingle Viton shaft seal, SAE-B 2-bolt flange, SAE O-ring ports
Displacement limiterNone
Special hardwareSpecial hardware - none
Special featuresBlack paint, Danfoss tag
Proposition 65Cancer and Reproductive Harm

83109002: frequently asked questions

When can 83109002 be shipped?

83109002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83109002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83109002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83109002, subject to availability and destination.
