Danfoss 83103659

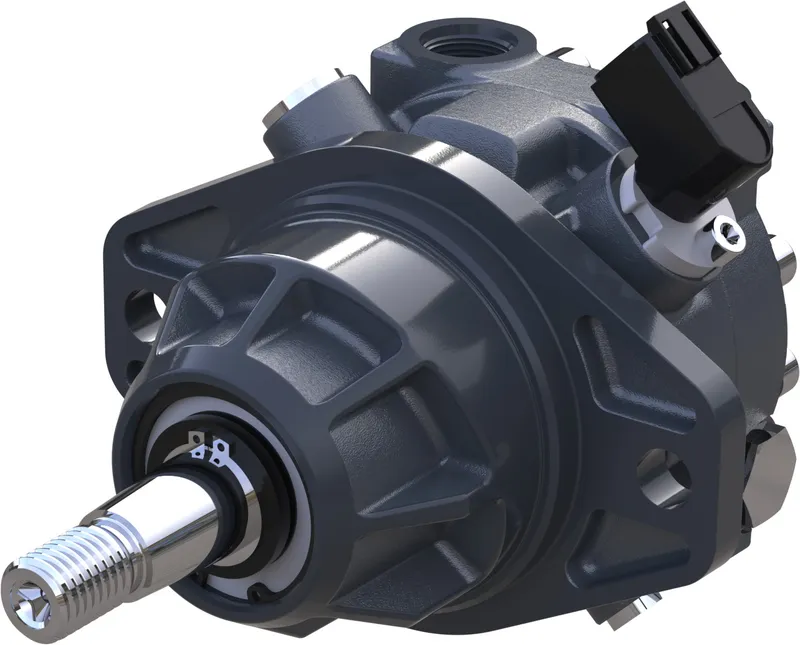

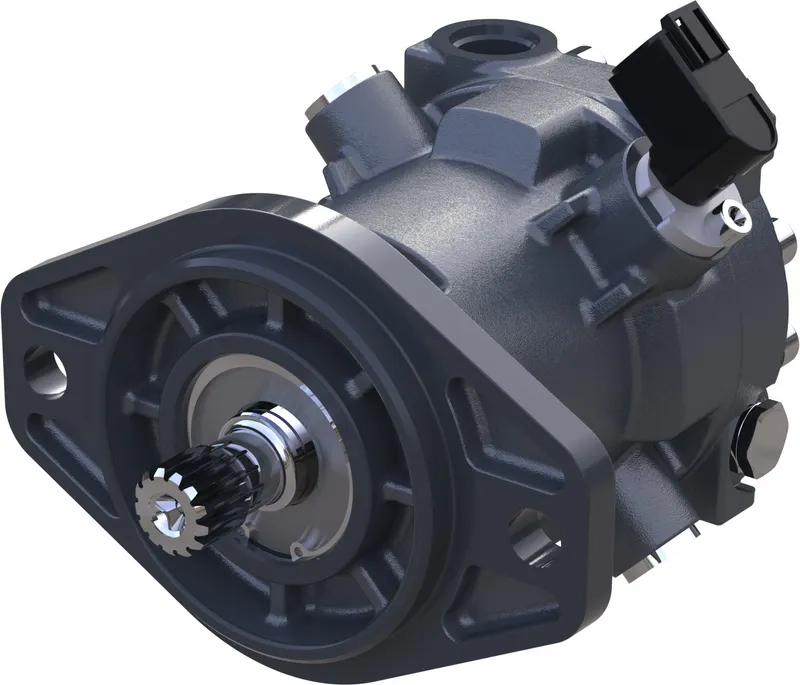

MOTOR-FIXED DISPL MP1M24

MPN: 83103659
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83103659?

Danfoss MOTOR-FIXED DISPL MP1M24, manufacturer part number 83103659. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	Series MP1
Product type	M - Motor
B: CONFIGURATION	Mounting Flange Configuration: ISO Flange
C: Displacement	Rotating group displacement: 24 cc/rev
D: Output Shaft	Motor Output Shaft: 22.225mm diameter, Taper, with dust seal (shipped without key)
E: System Port & valve	Inch O-ring Boss system Ports per ISO 11926-1, Loop flushing (3.6 lpm@15bar).
K: SSNSR & Flange & Porting	SAE-B Flange, with Speed sensor 4.5-8V. Case drain: Inch ORB port perISO 11926-1, 3/4-16.
L: Settings	NONE
M: Special Hardware Features	24cc standard Cylinder block kit, standard valve plate.
N: Paint and Nametag	Black Paint and Danfoss Nametag Format A
Proposition 65	Cancer and Reproductive Harm

83103659: frequently asked questions

When can 83103659 be shipped?

83103659 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83103659 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83103659 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83103659, subject to availability and destination.
