Danfoss 83103656

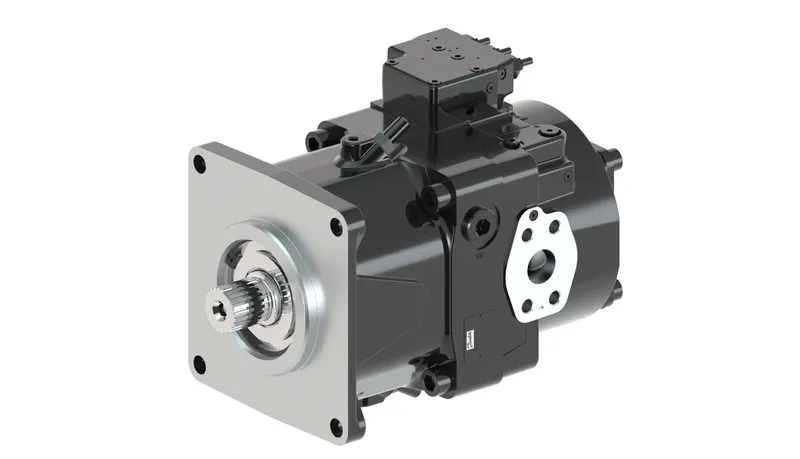

PUMP-VAR DISPL, D1P193

MPN: 83103656
Category: D1P open-circuit high-power axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83103656?

Danfoss PUMP-VAR DISPL, D1P193, manufacturer part number 83103656. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

D1P Product	D1P variable axial piston pump
Displacement	193cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version A
Control type	Pressure compensated control + remote pressure compensated control
Input shaft	Spline Shaft DIN5480, D1P065 W30x2x30x14x9g, D1P130~193 W50x2x30x24x9g,D1P260&290 W60x2x3x28x9g
Front mounting flange	SAE J744 165-4 (E)
Endcap	Radial side flange ports inlet: SAE J518, 3 1/2 inch, M16x2 outlet: SAE J518, 1 1/2 inch, M16x2 with impeller
Auxiliary flange	SAE J744 152-4 (D), spline coupling: 1 3/4in 13 tooth 8/16 diametrical pitch
Power control setting	No power control
Pressure compensator setting	200 bar pressure compensated control setting
Load sense setting	20 bar load sensing control setting
Hydraulic displacement control start pressure setting	No hydraulic displacement control
Maximum displacement setting	80% of displacement
Minimum displacement setting	0% of displacement
Special hardware	No special hardware
Special feature	Black paint, Danfoss tag, format A, without control oil filter
Proposition 65	Cancer and Reproductive Harm
