Danfoss 83097481

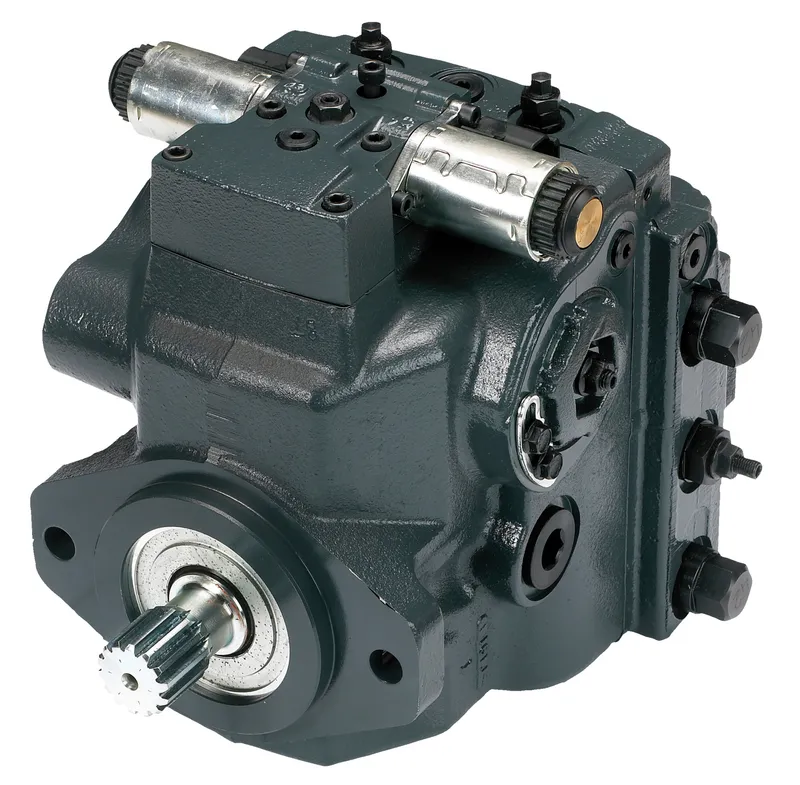

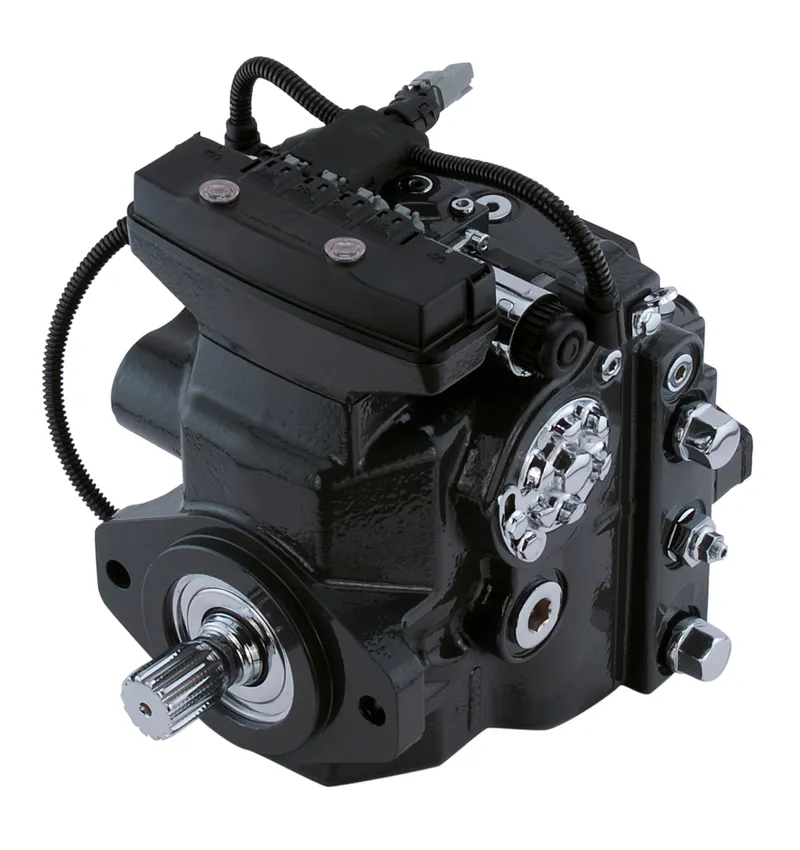

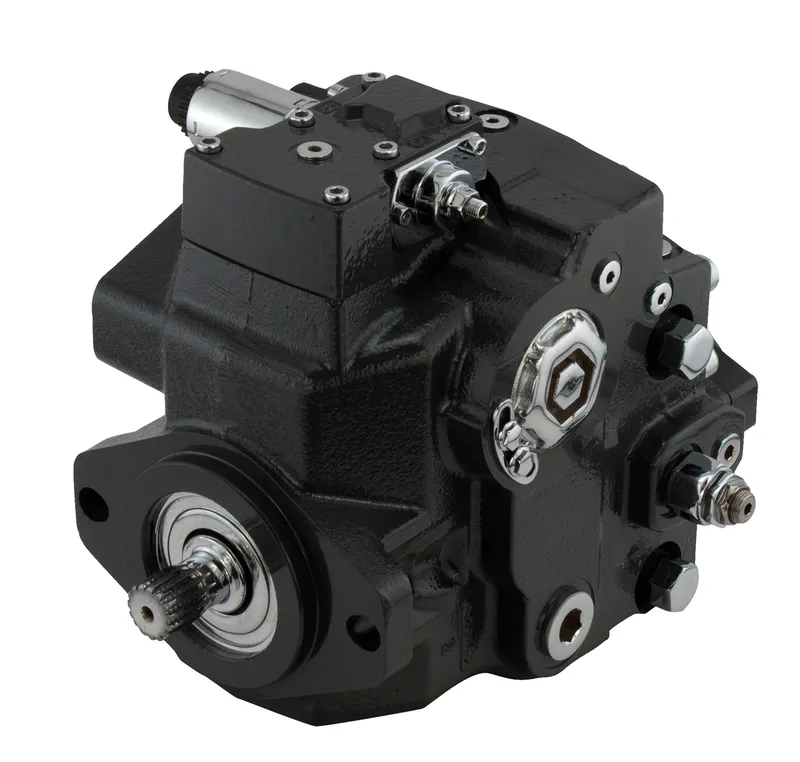

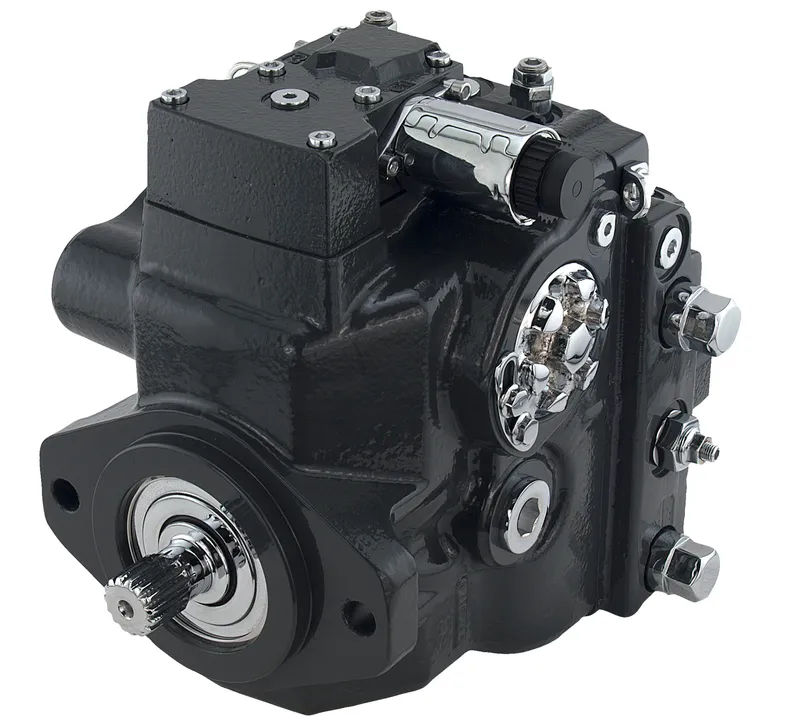

PUMP-VAR DISPL CW H1P053R

MPN: 83097481
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 83097481?

Danfoss PUMP-VAR DISPL CW H1P053R, manufacturer part number 83097481. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	53cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version A
Configuration of ports	ANSI O-ring boss port configuration
Control	Electrical displacement control, 24V Deutsch DT04-2P connector, manual override
Orifices	P = none, A+B = 1.3mm, TA+TB = none
Displacement limitation	No limiters electrical displacement control/forward neutral reverse control
Endcap type	Twin port, code 62 metric 4 bolt flange, remote filter
Mounting flange	SAE B 2 bolt flange (for installation of pump, M12 screws and hardened washers must be used)
Input shaft	14 tooth, 12/24
Auxiliary pad	9 tooth, A pad
Protection type side A	Pressure limiter, high pressure relief valve
High pressure setting side A	350 bar
Protection type side B	High pressure relief valve + pressure limiter
High pressure setting side B	350 bar
Charge pump	12cc/rev
Filtration	Remote full flow
Charge relief pressure setting	26 bar charge pressure relief valve
Special hardware features	Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm
