Danfoss 83096424

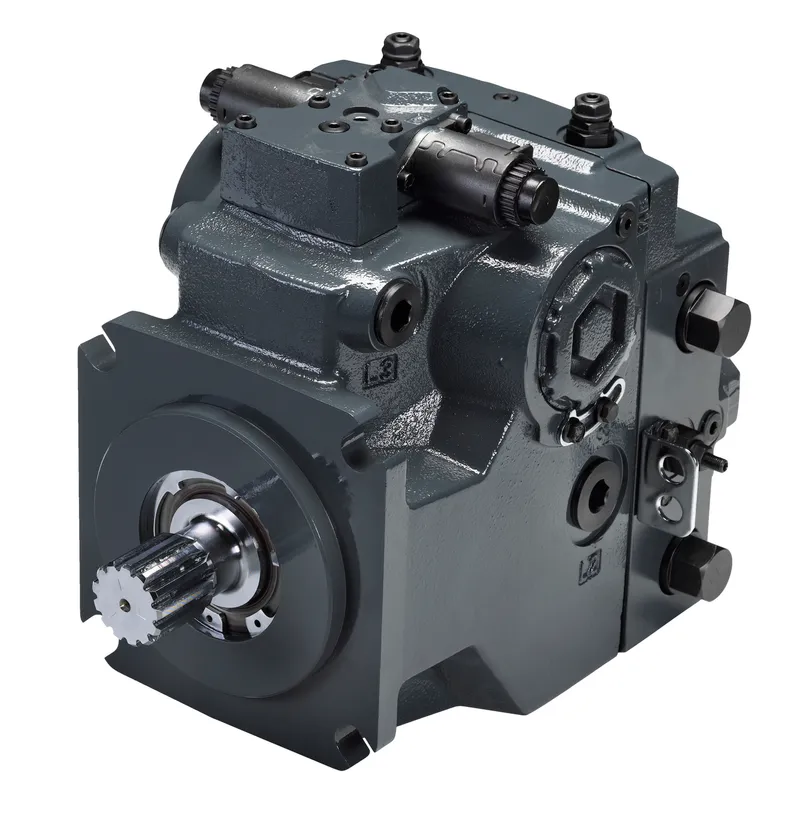

PUMP-VAR-DISPL CW H1PV115

MPN: 83096424
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83096424?

Danfoss PUMP-VAR-DISPL CW H1PV115, manufacturer part number 83096424. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	115cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version B
Configuration of ports	ANSI O-ring boss port configuration
Control	Electrical displacement control, 12V Deutsch DT04-2P connector, manual override, angle sensor DTM04-4P connector
Orifices	P = none, A+B = 0.8mm, TA+TB = none
Displacement limitation	No limiters electrical displacement control/forward neutral reverse control
Endcap type	Twin port, code 62 metric 4 bolt flange, remote filter
Mounting flange	SAE D 4 bolt flange + speed sensor
Input shaft	13 tooth, 8/16
Auxiliary pad	13 tooth, B pad
Protection type side A	Pressure limiter, high pressure relief valve
High pressure setting side A	250 bar
Protection type side B	High pressure relief valve + pressure limiter
High pressure setting side B	200 bar
Charge pump	26cc/rev
Filtration	Remote full flow
Charge relief pressure setting	24 bar charge pressure relief valve
Special hardware features	Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate + speed sensing
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm

83096424: frequently asked questions

When can 83096424 be shipped?

83096424 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83096424 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83096424 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83096424, subject to availability and destination.
