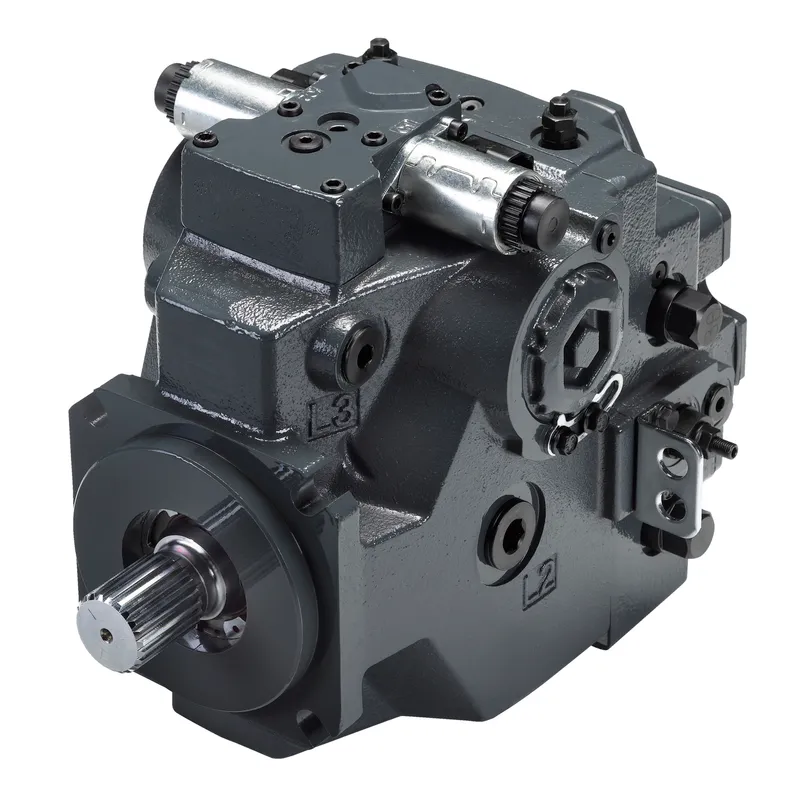

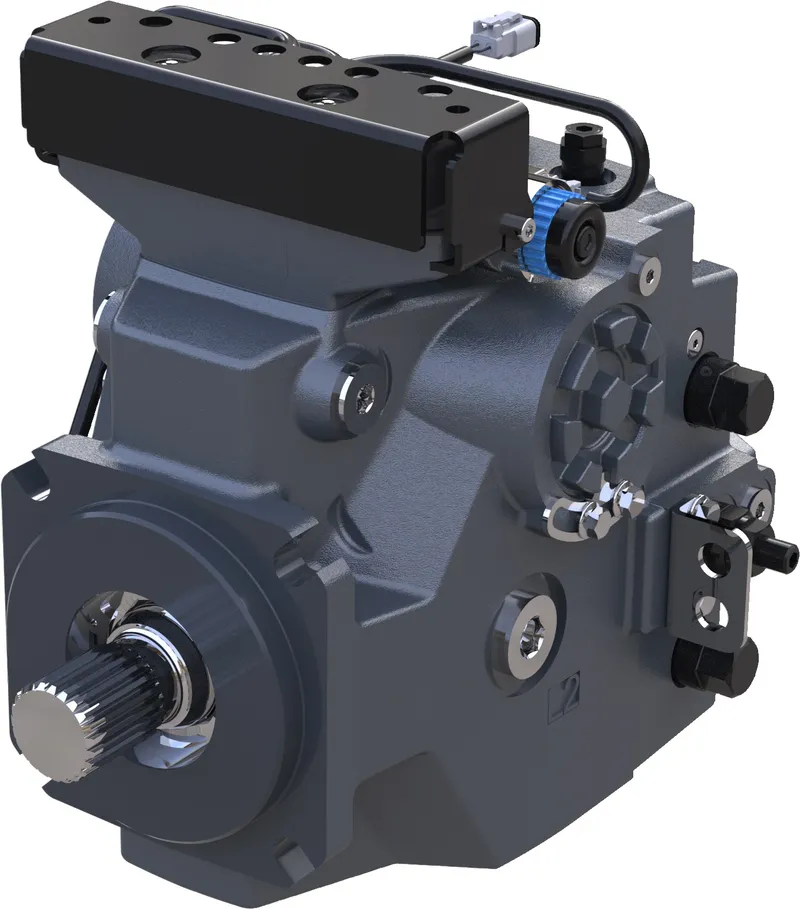

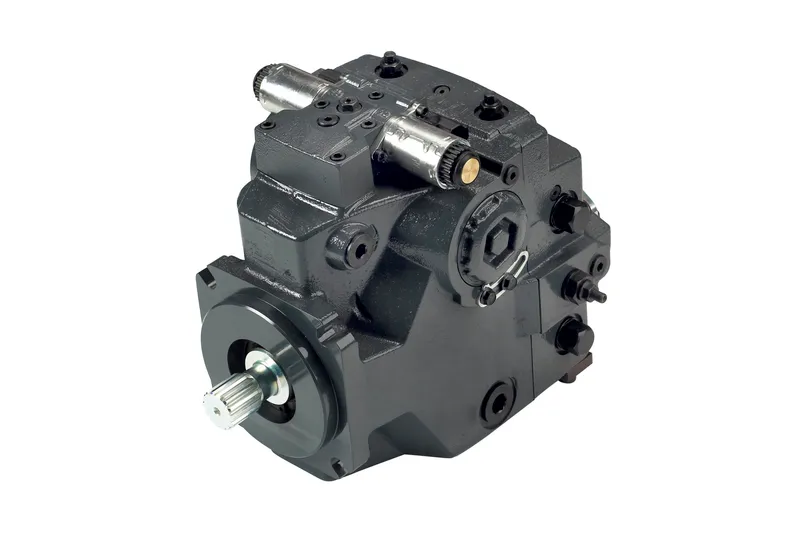

Danfoss 83096421

PUMP-VAR-DISPL CW H1PV078

MPN: 83096421
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83096421?

Danfoss PUMP-VAR-DISPL CW H1PV078, manufacturer part number 83096421. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	78cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version B
Configuration of ports	ANSI O-ring boss port configuration
Control	Non-feedback proportional electric, 12V, angle sensor DTM04-4P, manual override
Orifices	P = none, A+B = 1.3mm, TA+TB = none
Displacement limitation	No limiters automotive control/non-feedback proportional electric (nested springs)
Endcap type	Twin port, code 62 metric 4 bolt flange, suction filter
Mounting flange	SAE C 4 bolt flange + speed sensor
Input shaft	23 tooth, 16/32
Auxiliary pad	14 tooth, C pad
Protection type side A	High pressure relief valve, pressure limiter plugs
High pressure setting side A	450 bar
Protection type side B	High pressure relief valve and pressure limiter plugs
High pressure setting side B	450 bar
Charge pump	17cc/rev
Filtration	Suction filtration
Charge relief pressure setting	28 bar charge pressure relief valve
Special hardware features	Automative control /non-feedback proportional electric/fan drive contro valve plate + speed sensing
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm

83096421: frequently asked questions

When can 83096421 be shipped?

83096421 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83096421 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83096421 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83096421, subject to availability and destination.
