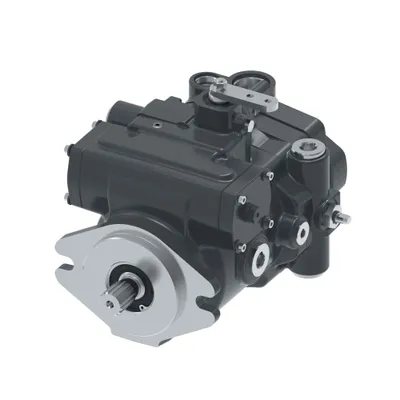

SERVO CONTROLLED, ACGLAAC00H29TT0EC0D000B005D

Name: Danfoss 72400-LNS-04 – SERVO CONTROLLED, ACGLAAC00H29TT0EC0D000B005D
Brand: Danfoss (Drives)
SKU: 72400-LNS-04

MPN: 72400-LNS-04 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mobile closed-circuit piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 72400-LNS-04 be shipped?

72400-LNS-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 72400-LNS-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 72400-LNS-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72400-LNS-04, subject to availability and destination.

Danfoss SERVO CONTROLLED, ACGLAAC00H29TT0EC0D000B005D, manufacturer part number 72400-LNS-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional functions	No additional functions
Aux mounting features rear	[2-BOLT A] SAE flange series 82-2, with cover plate
Aux port size and location	M18 X 1.5 metric o-ring port - left (C1) & right(C2) sides (housing), left side plugged
Brand	Danfoss
Charge pump	No charge pump
CODE TITLE	49.2 cm3/r [3.00 in3/r] servo controlled variabledisplacement pump
Control assembly	Electronic proportional control 12 volt DC without electronic driver
Control servo orf S1 and S2	No control servo orifice
Control supply orifice P	Diameter 1.02 [.040]
CPRV setting and routing	No charge pump
Design code	D
Destroke valve	Not required
Drain port size and location	M27 X 2 metric o-ring port - left (D1) & right (D2) sides, left side plugged; thru drain into rear auXiliary flange (D3)
Flow rate gpm	46.8
Flow rate lpm	177.0
Identification	Case (customer part number on unit)
Input shaft	15 tooth 16/32 external, diameter 24.98 [.984], shaft extension 46 [1.81]
Input shaft rotation	Left hand rotation (ccw)
Main port size and location	M33 x 2 metric o-ring port (A & B) – left side
Maximum output speed	3600
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	ACGLAAC00H29TT0EC0D000B005D
Mounting Flange	2-bolt-B
Output shaft	9 tooth 16/32 internal, diameter 15.88 [.625], accepts shaft extension 31.8 [1.25]
Output torque lbf-in2	2387.3
Output torque Nm	269.7
Paint	Black per spec 209-13B
Product height in	8.060
Product height mm	204.724
Product length in	11.530
Product length mm	292.862
Product width in	12.060
Relief vlv set for main port A	344.7 bar [5000 lbf/in2]
Relief vlv set for main port B	344.7 bar [5000 lbf/in2]
Special control options	No special control options
Special features	No special features
Working pressure bar	345
Working pressure psi	5000
