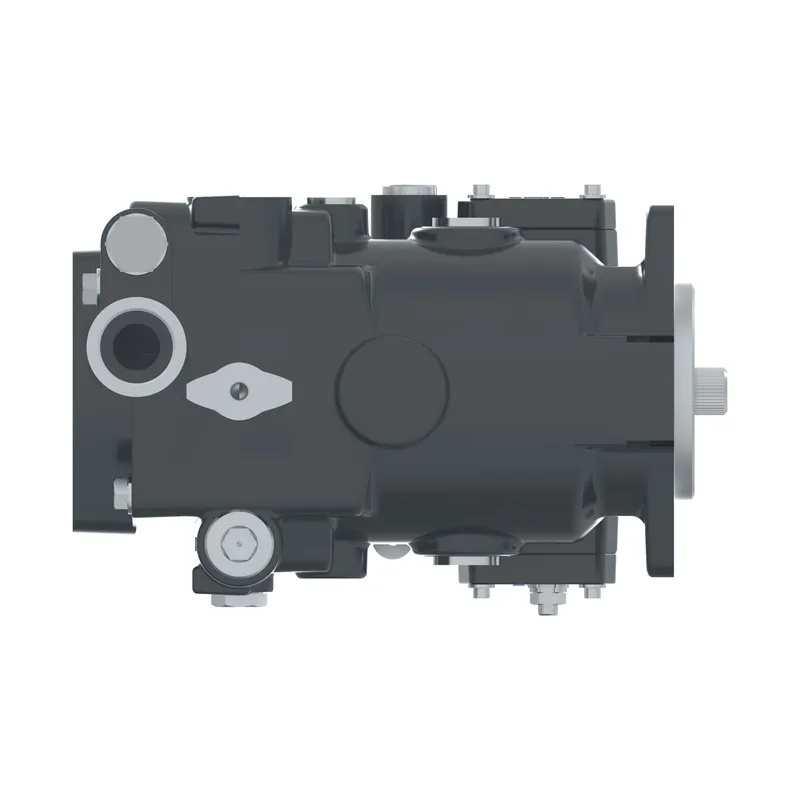

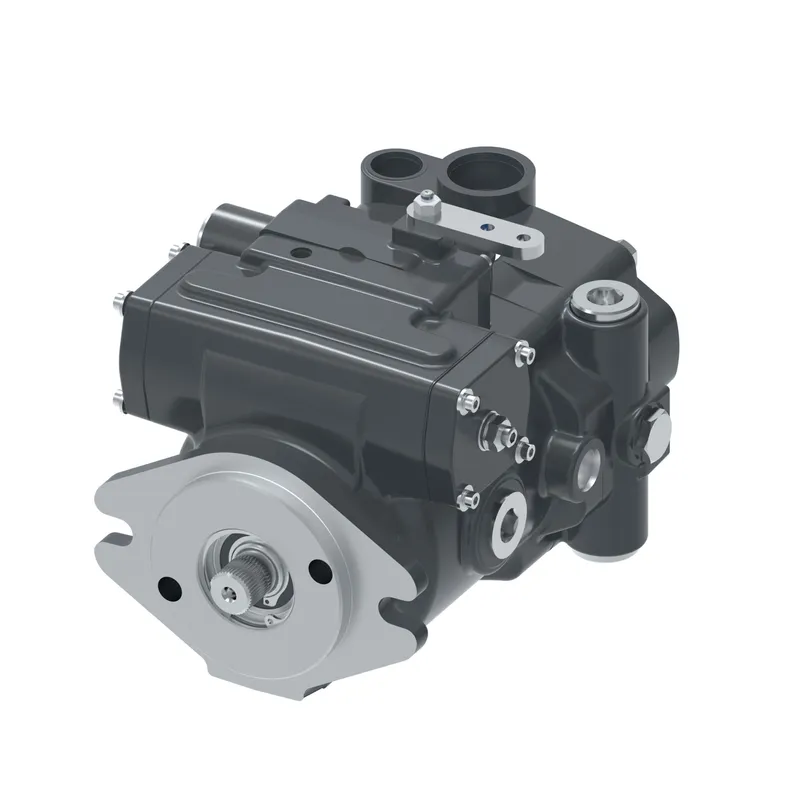

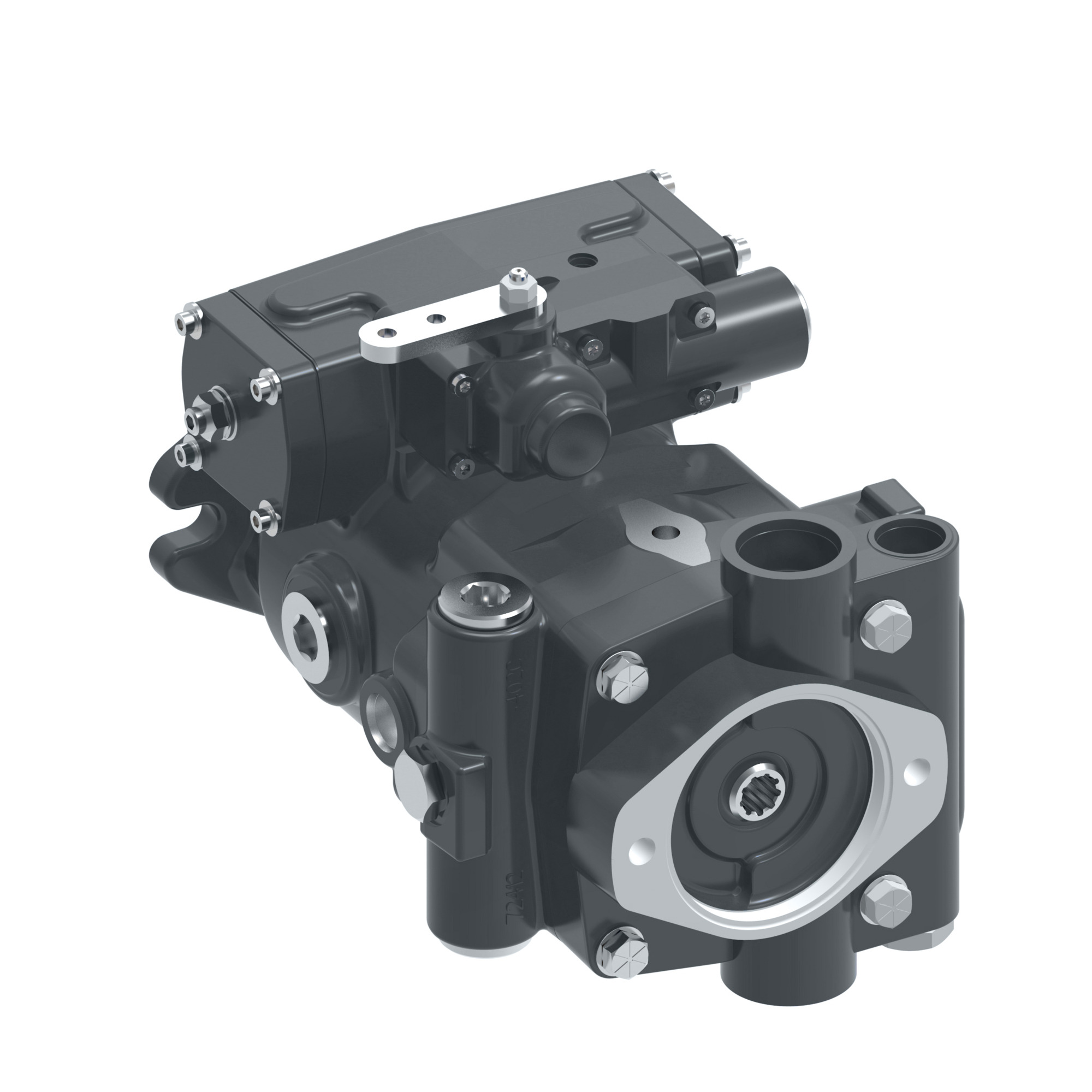

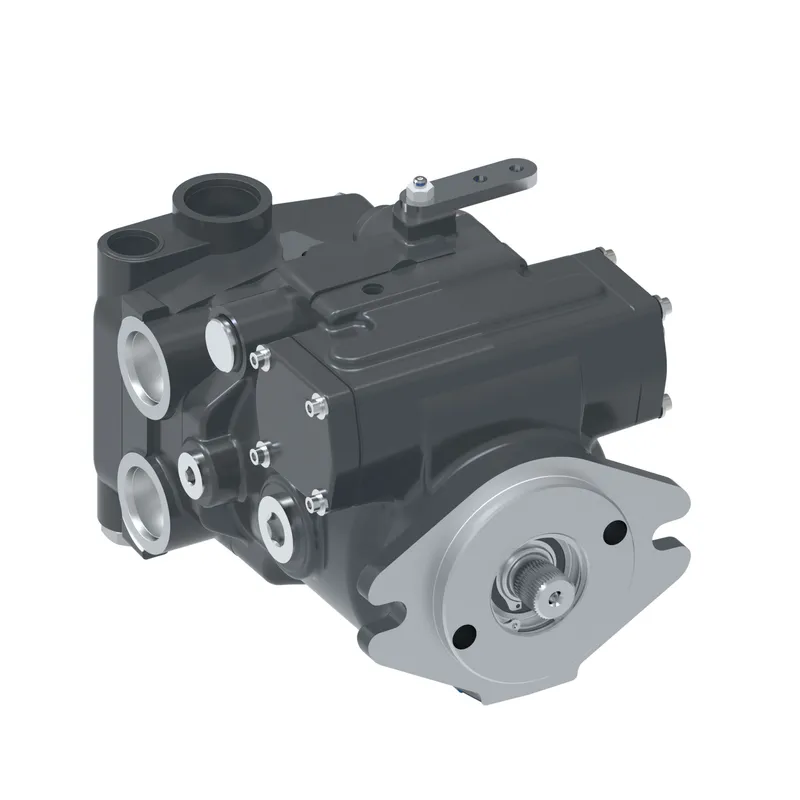

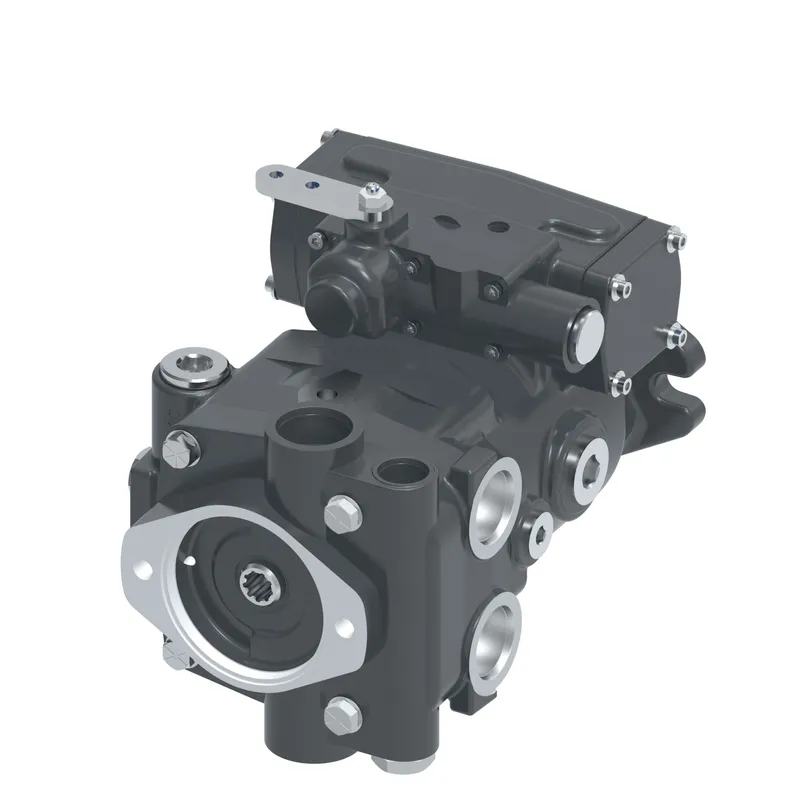

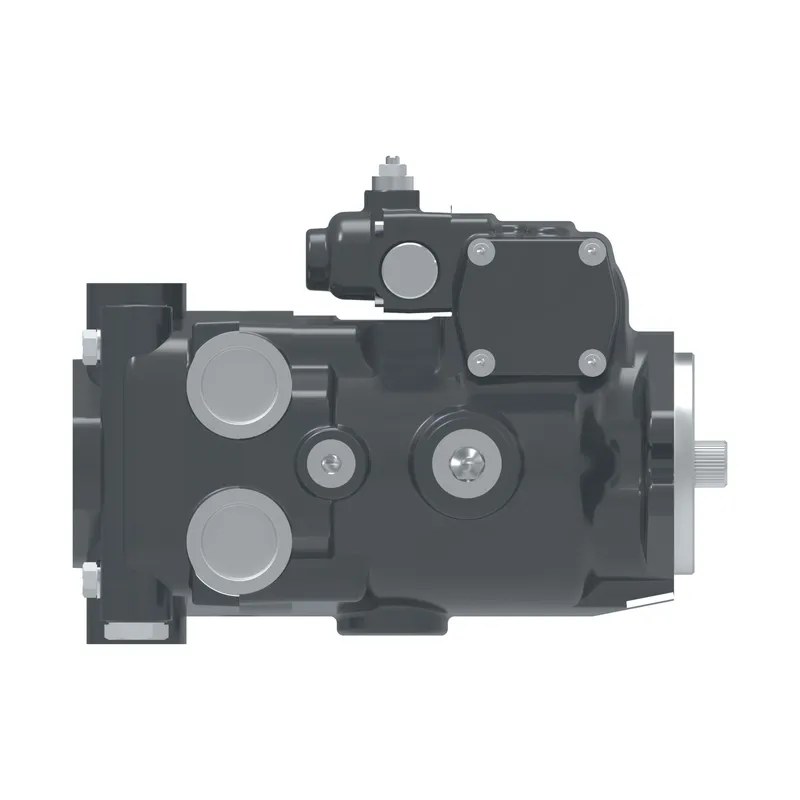

2.48 CID Servo Controlle, AAFLBAD24DS2HH0SL00000ABB0D

Name: Danfoss 72400-LKU-04 – 2.48 CID Servo Controlle, AAFLBAD24DS2HH0SL00000ABB0D
Brand: Danfoss (Drives)
SKU: 72400-LKU-04

MPN: 72400-LKU-04 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mobile closed-circuit piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 72400-LKU-04 be shipped?

72400-LKU-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 72400-LKU-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 72400-LKU-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72400-LKU-04, subject to availability and destination.

Danfoss 2.48 CID Servo Controlle, AAFLBAD24DS2HH0SL00000ABB0D, manufacturer part number 72400-LKU-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional functions	No additional functions
Aux mount features (rear)	[2-bolt A] SAE flange series 82-2, with cover plate & mounting holes
Auxiliary port size & location	.750-16 UNF-2B SAE o-ring port - left (C1) & right (C2) sides (housing), left side plugged
Brand	Danfoss
Charge pump	13.8 cm3/r [.84 in3/r] with 1.3125-12 UN-2B SAE o-ring port for suction inlet (S)
CODE TITLE	40.6 cm3/r [2.48 in3/r] servo controlled variable displacement pump (rear tandem)
Control assembly	3 pos (FNR) 24 VDC solenoids with din connectors (solenoid location S1 & S2)
Control servo orifice S1 & S2	No control supply orifice
Control supply orifice (P)	No control supply orifice
CPRV setting & routing	17.24-20.68 bar [250-300 lbf/in2] relieved to case, 1.3125-12 SAE o-ring port for charge pressure discharge (C3) (to remotefilter), .875-14 UNF-2B SAE o-ring port for charge pressure inlet (C4) (return from filter)
Design code	D
Destroke valve	Not required
Drain port size & location	1.0625-12 UN-2B SAE o-ring port - left (D1) & right (D2) sides, right & left sides plugged, thru drain into front mount (D4)
Flow rate gpm	38.6
Flow rate lpm	146.3
Identification	Standard
Input shaft	41 tooth 48/96 ext, dia 22.22 [.875], shaft ext 24.4 [.96]
Input shaft rotation	Left hand rotation (ccw)
Main ports size & location	1.3125-12 UN-2B SAE o-ring port (A & B) - left side
Maximum output speed	3600
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	AAFLBAD24DS2HH0SL00000ABB0D
Mounting flange	2-bolt-B
Note	For more info, contact Danfoss
Output shaft	9 tooth 16/32 internal dia 15.88 [.625], accepts shaft ext 31.8 [1.25]
Output torque lbf-in2	1184.1
Output torque Nm	133.8
Paint	Primer per spec 209-13A
Product height in	8.320
Product height mm	211.328
Product length in	12.390
Product length mm	314.706
Product width in	8.020
Relief valve setting port A	206.8 bar [3000 lbf/in2]
Relief valve setting port B	206.8 bar [3000 lbf/in2]
Special control options	No special control options
Special features	Adjustable servo stop, both sides
Working pressure bar	207
Working pressure psi	3000
