Danfoss 691X2X1-BG

Adapter Selfalign Brass

MPN: 691X2X1-BG
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

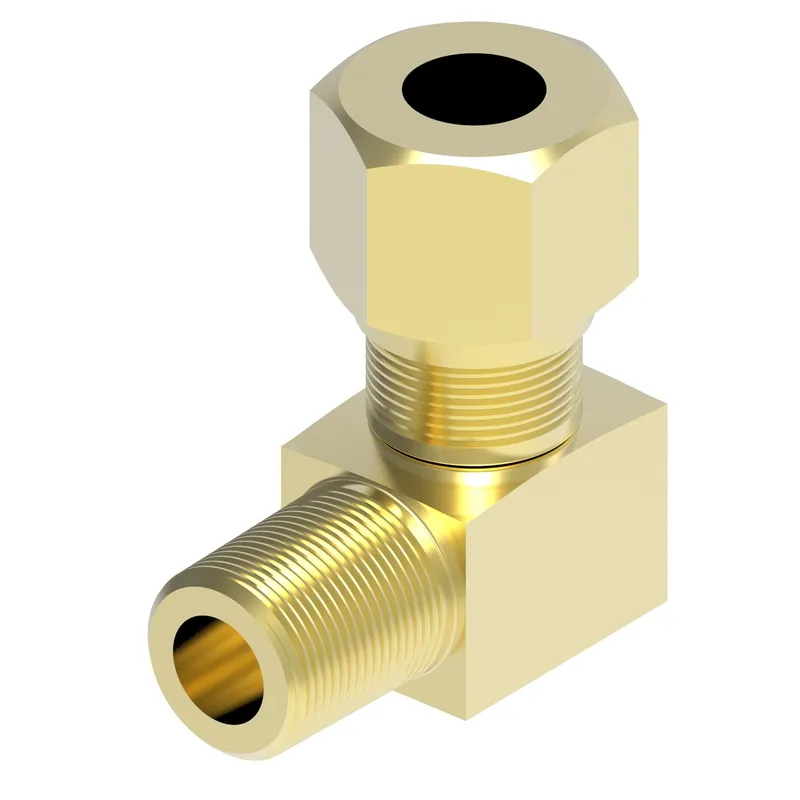

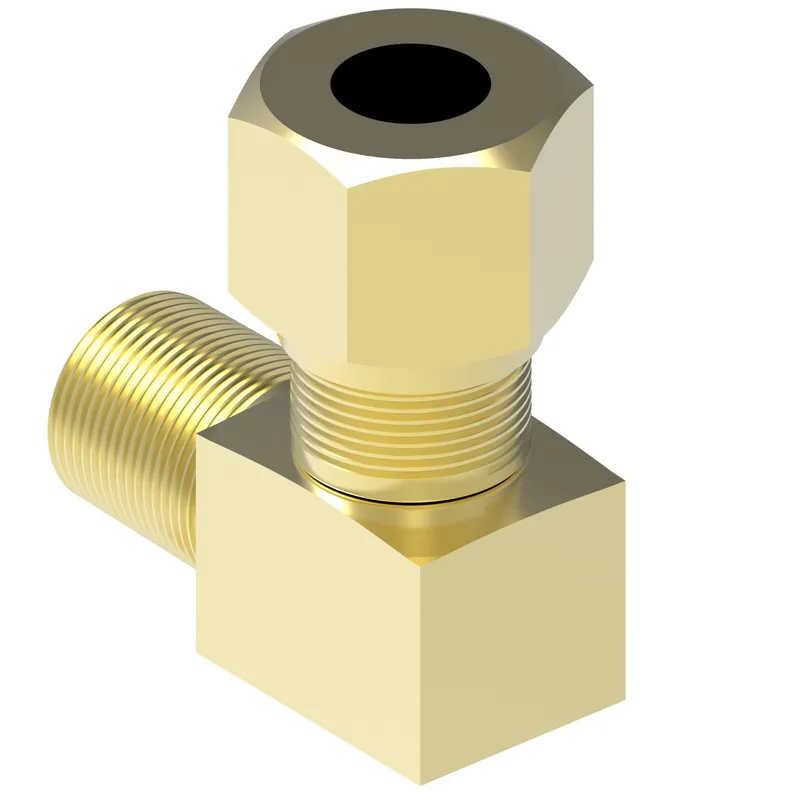

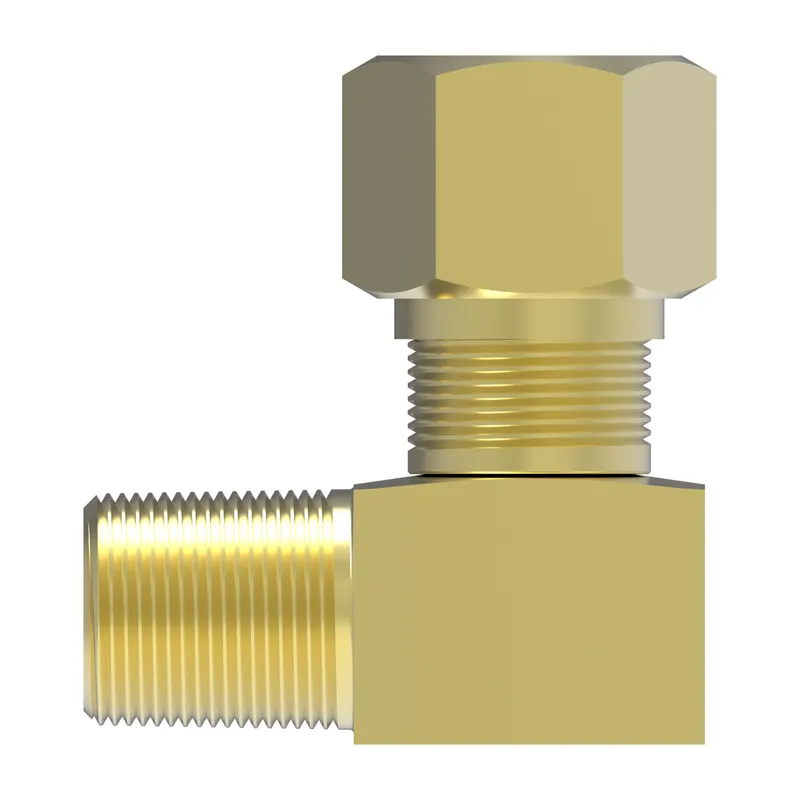

What is the Danfoss 691X2X1-BG?

Danfoss Adapter Selfalign Brass, manufacturer part number 691X2X1-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	90 Degree
Brand	Weatherhead by Danfoss
Drop dimension IN	0.660
Drop dimension MM	16.80
End Type 1	Male pipe (NPTF)
End Type 2	Line/hose/tube
Hex size 1 IN	0.350
Hex size 1 MM	8.900
Hex size 2 IN	0.380
Hex size 2 MM	9.700
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.130
Tube outside diameter 1 MM	3.3
Tube outside diameter 2 IN	0.130
Tube outside diameter 2 MM	3.3
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
