Danfoss 691X10

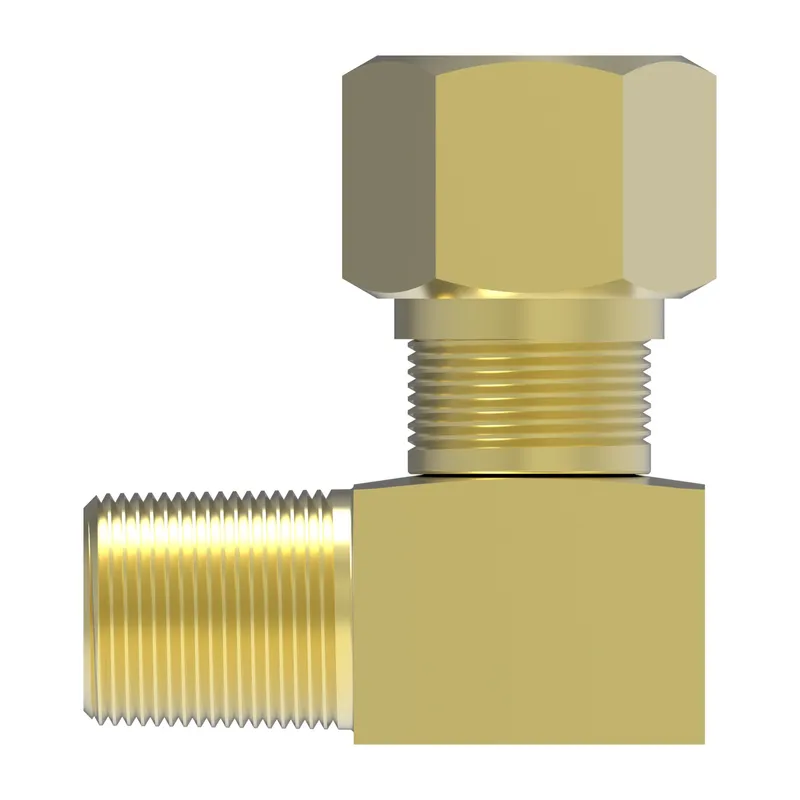

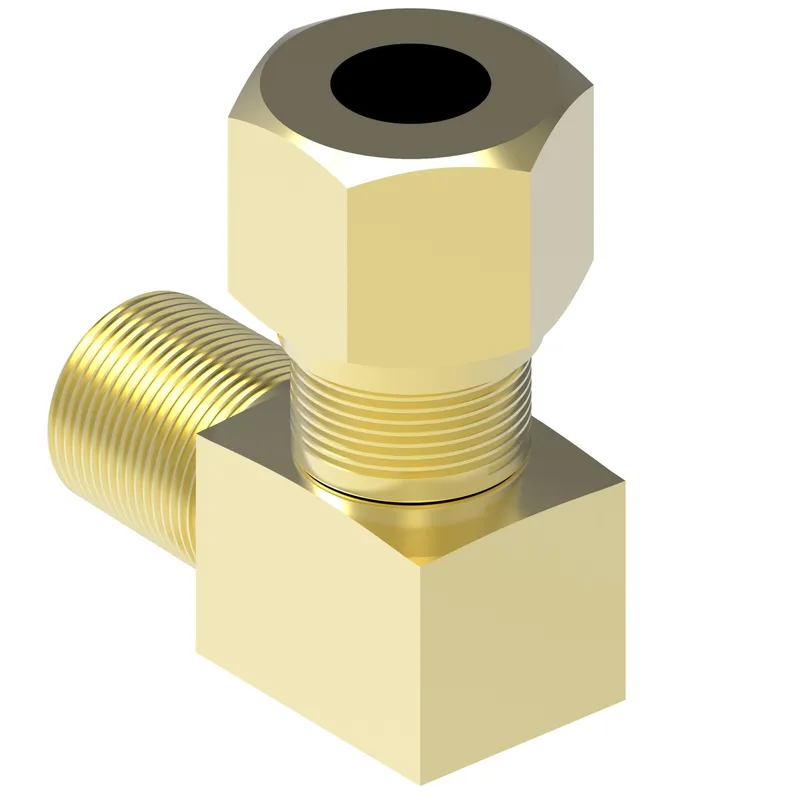

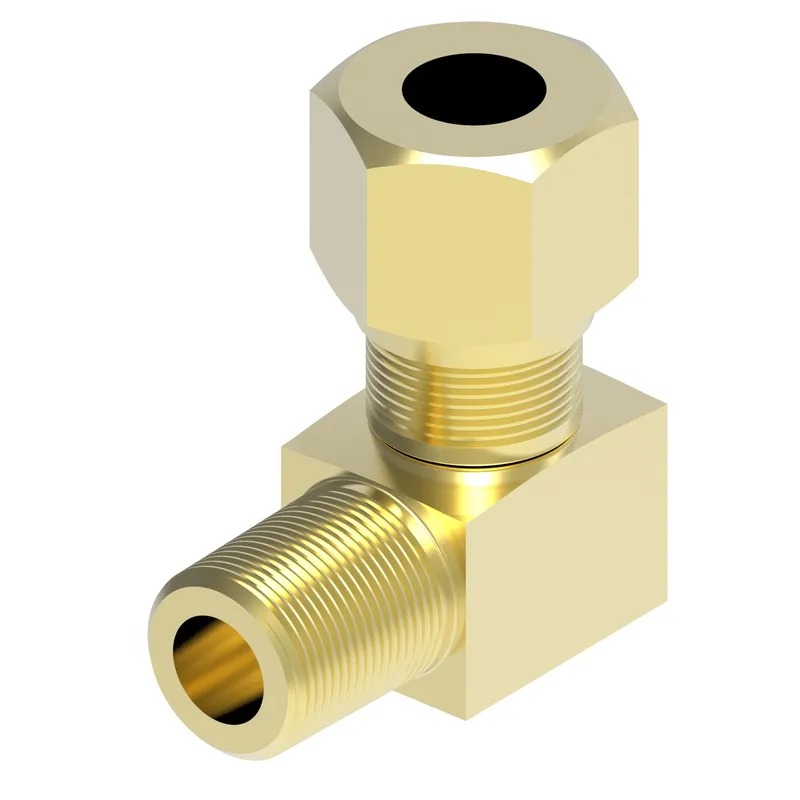

Adapter Selfalign Brass 90DEG T X MP

MPN: 691X10
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 691X10?

Danfoss Adapter Selfalign Brass 90DEG T X MP, manufacturer part number 691X10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975739471
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	1.310
Drop dimension MM	33.30
End Type 1	Male pipe (NPTF)
End Type 2	Line/hose/tube
Hex size 1 IN	0.900
Hex size 1 MM	22.900
Hex size 2 IN	0.940
Hex size 2 MM	23.900
Item type	Adapter-elbow
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.560
Tube outside diameter 1 MM	14.2
Tube outside diameter 2 IN	0.640
Tube outside diameter 2 MM	16.3
Working pressure bar	138.0
Working pressure psi	2000
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65
