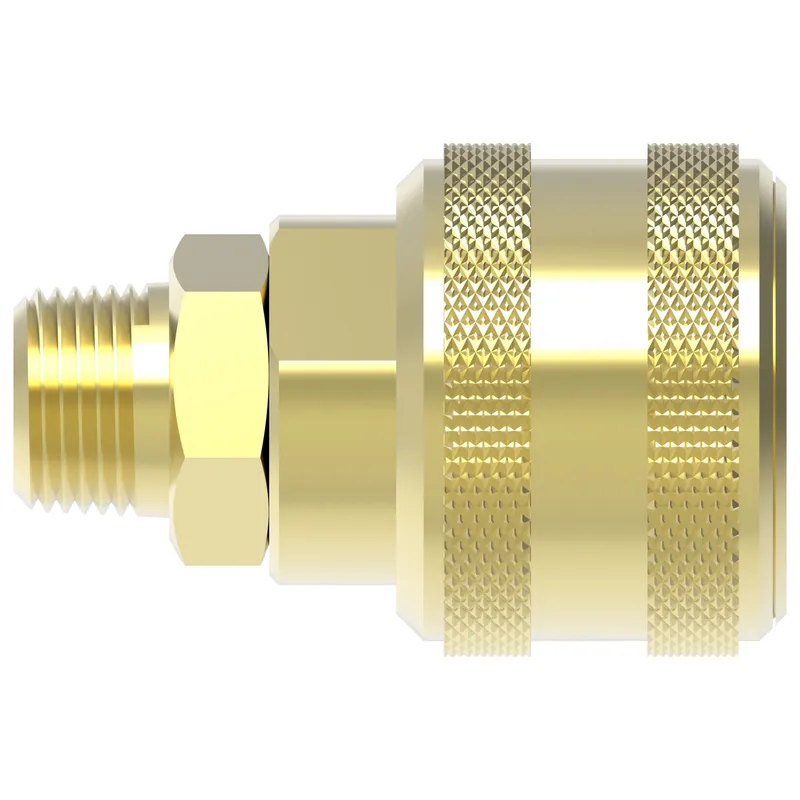

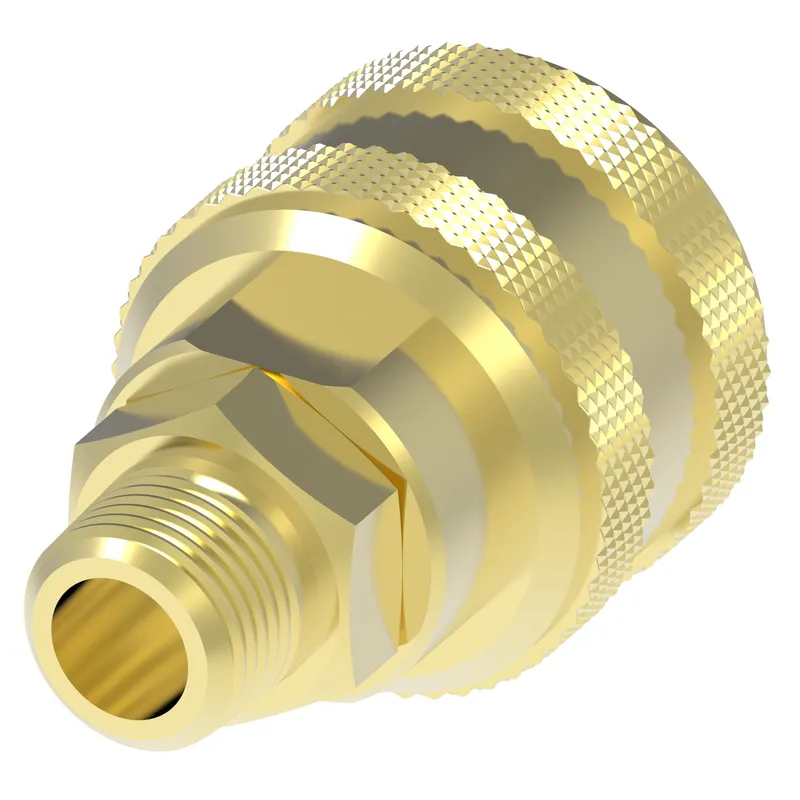

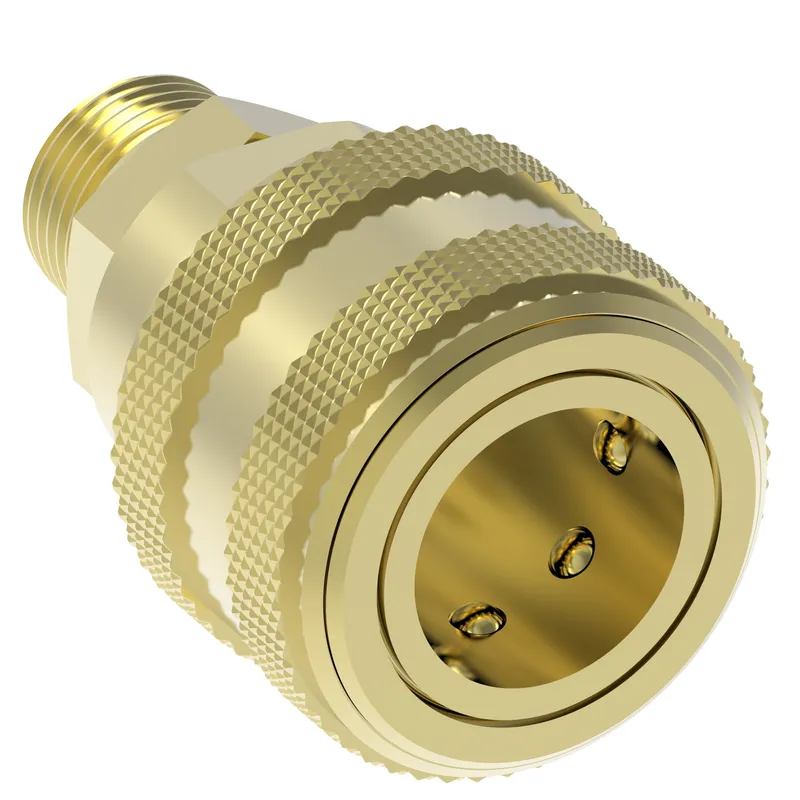

Danfoss 6500SL

Cplng, 6000 SERIES Socket, Brass

MPN: 6500SL
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6500SL?

Danfoss Cplng, 6000 SERIES Socket, Brass, manufacturer part number 6500SL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146167095
Angle shape	Straight
Body size	3/4
Brand	Danfoss
Burst pressure min bar	61
Burst pressure min psi	880
Connection style	Manual connect
End size 2	-12
End type 1	Female Push to Connect
End type 2	Male pipe (NPTF)
Flow rate GPM	935.00
Flow rate LPM	3539.36
Fluid compatibility	Air, Gases and liquids
Hex size 1 IN	1.310
Hex size 1 MM	33.274
Item type	Female half
Product length in	2.940
Product material	Brass
Safety locking mechanism	Pin lock
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	1 way
Working pressure max psi	220
Working pressure max BAR	15
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

6500SL: frequently asked questions

When can 6500SL be shipped?

6500SL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6500SL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6500SL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6500SL, subject to availability and destination.
