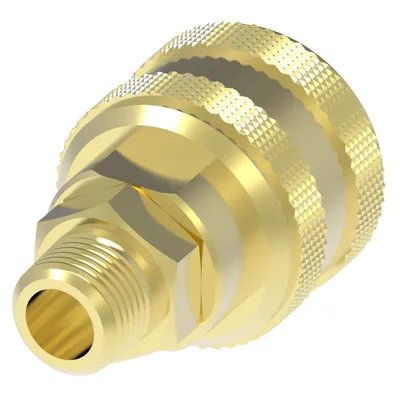

Danfoss 6500
COUPLING,6000,F,3/4,B,-8MNPTF
- MPN
- 6500
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 6500?
Danfoss COUPLING,6000,F,3/4,B,-8MNPTF, manufacturer part number 6500. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146104205 |
| Angle shape | Straight |
| Body size | 3/4 |
| Burst pressure min bar | 61 |
| Burst pressure min psi | 880 |
| Connection style | Manual connect |
| End size 2 | -12 |
| End type 1 | Male pipe (NPTF) |
| Flow rate GPM | 935.17 |
| Flow rate LPM | 3540.00 |
| Fluid compatibility | Air, Gases and liquids |
| Hex size 1 IN | 1.310 |
| Hex size 1 MM | 33.274 |
| Item type | Female half |
| Latch type | Push/pull |
| Product height in | 1.900 |
| Product height mm | 48.260 |
| Product length in | 2.940 |
| Product length mm | 74.676 |
| Product material | Brass |
| Product width in | 1.900 |
| Product width mm | 48.260 mm |
| Safety locking mechanism | Pin lock |
| Seal material | Nitrile (NBR) |
| Valve type | 2 way |
| Working pressure max psi | 220 |
| Working pressure max BAR | 15 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
6500: frequently asked questions
When can 6500 be shipped?
6500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6500, subject to availability and destination.
