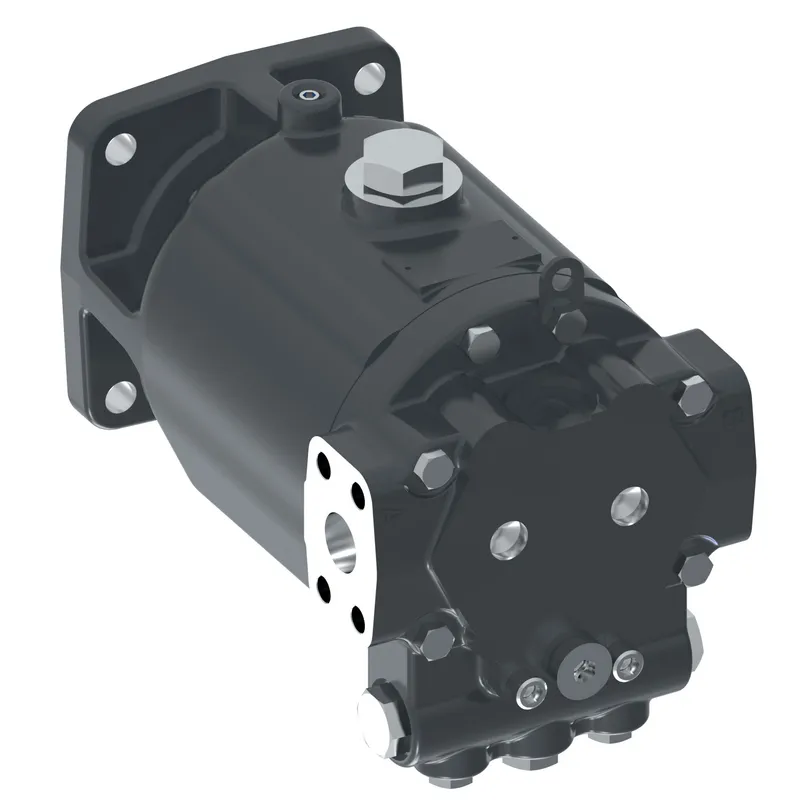

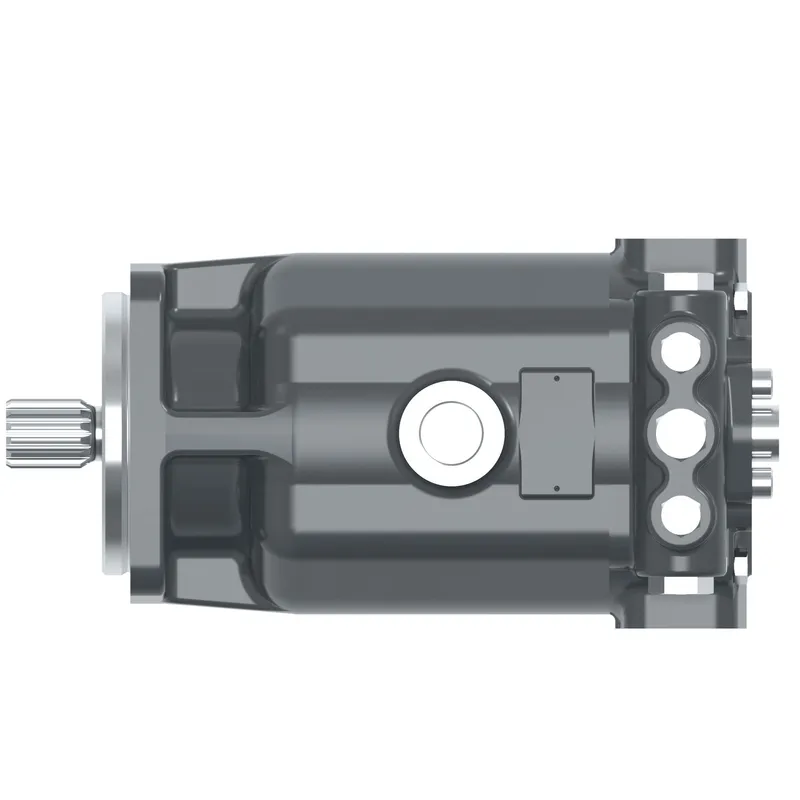

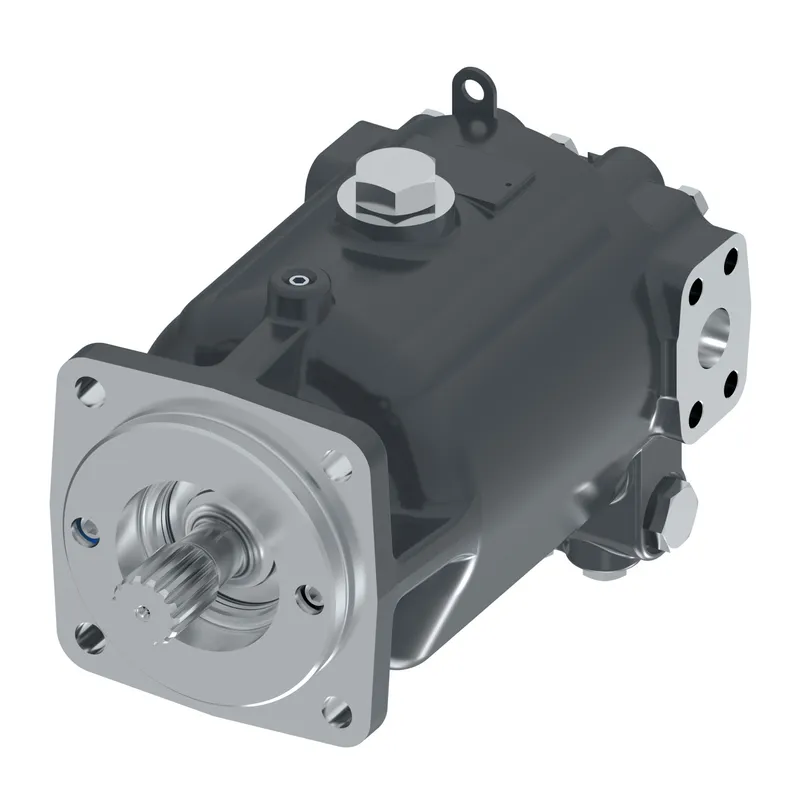

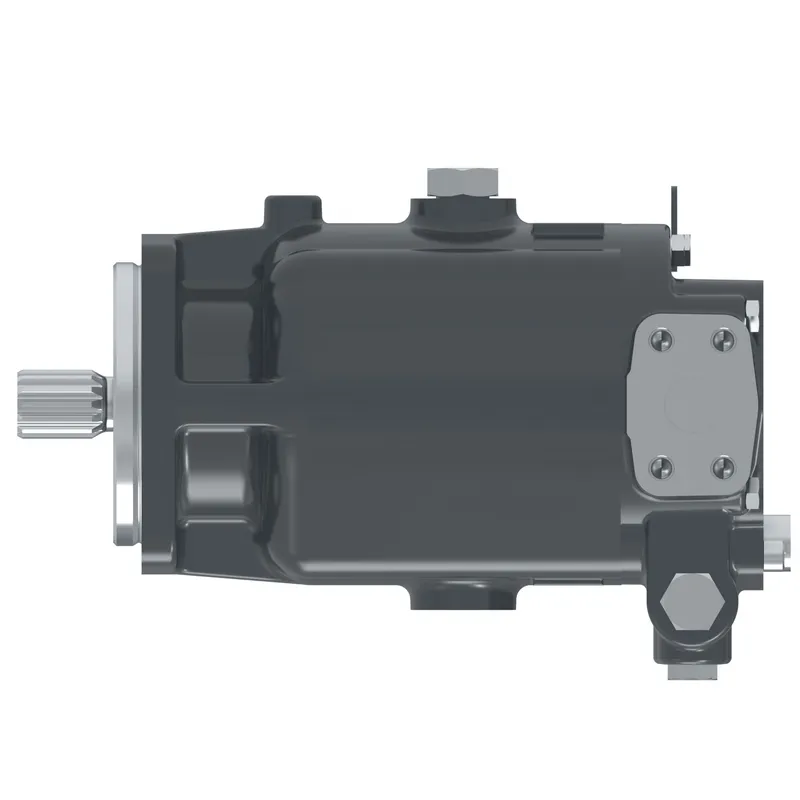

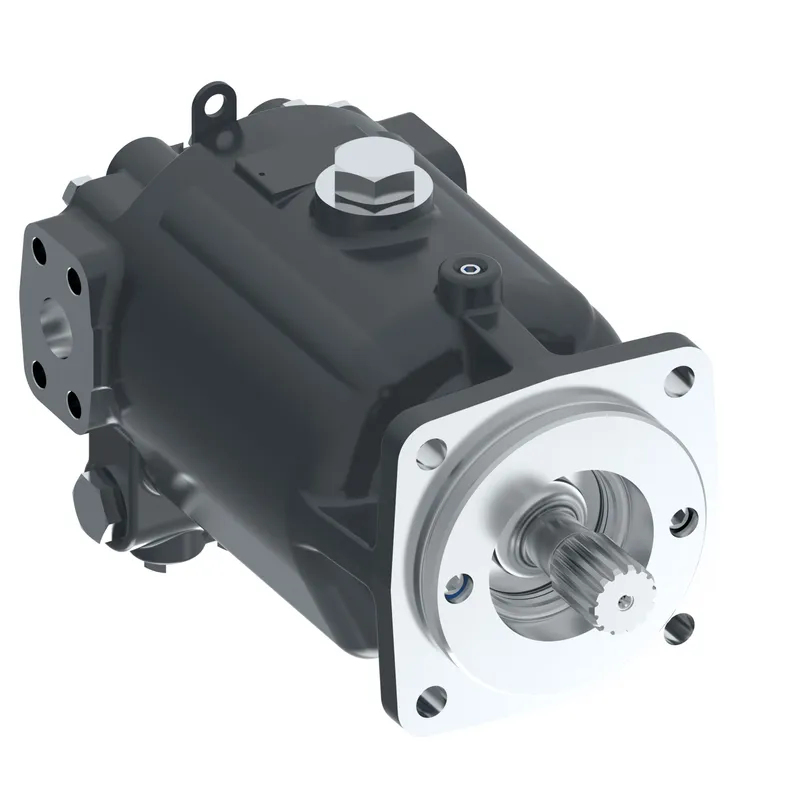

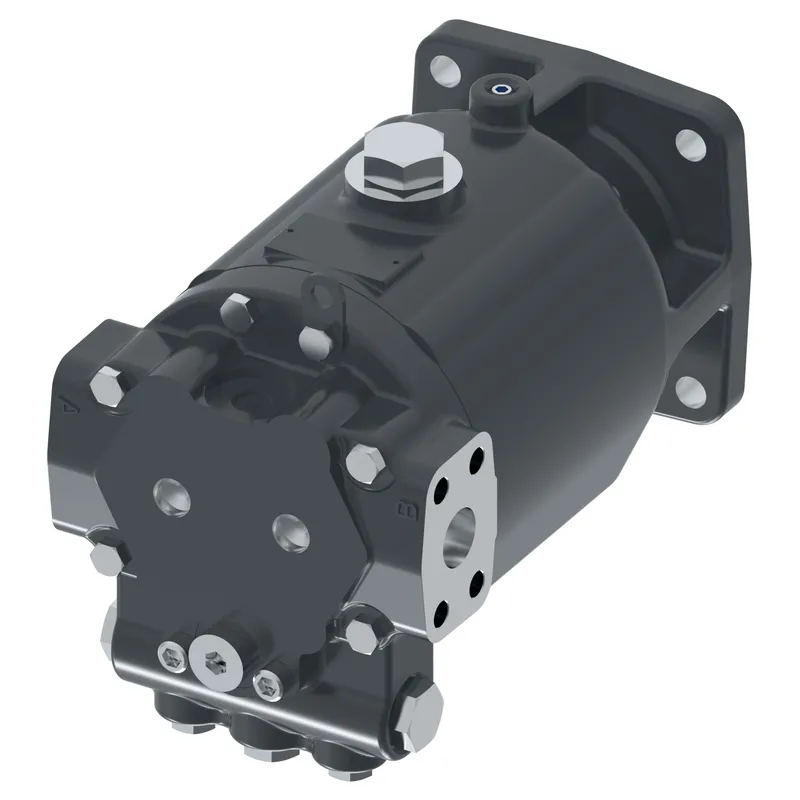

Danfoss 6433-228

MOTOR-FIXED DISPL, S1MF105, HHD643323BA1E3K3KA0000B

MPN: 6433-228
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6433-228?

Danfoss MOTOR-FIXED DISPL, S1MF105, HHD643323BA1E3K3KA0000B, manufacturer part number 6433-228. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
CPRV setting	CPRV, 220 psi (15.2 bar)
CPRV type	Standard charge pressure relief valve
Design code	Design code B
Design type	Fixed clearance with lip seal (33/39/46/54/64 only)
Displacement	6.431 cid (105.39 cc)
End cover and comp valve block	Valve block with shuttle valve, high-rate springs, charge pressure relief valve, and high pressure relief valves
Flow rate gpm	103.6
Flow rate lpm	392.0
High pres relief valve port A	Standard
High pres relief valve port B	Standard
HPRV setting port A	HPRV port A, 5000 psi (344.7 bar)
HPRV setting port B	HPRV port B, 5000 psi (344.7 bar)
Identification	Standard
Main ports	1.00 code 62 opposite side ports
Maximum output speed	3720
Maximum temperature C	82.20
Maximum temperature F	180.00
Model Code 1	HHD643323BA1E3K3KA0000B
Mounting Flange	4-BOLT-C
Output shaft	23 tooth 16/32 pitch spline (33/39/46/54/64 only)
Output torque lbf-in2	5117.6
Output torque Nm	578.2
Paint	Standard, primer blue
Product height in	7.880
Product height mm	200.152
Product length in	15.690
Product length mm	398.526
Product Series	Heavy duty hydrostatic fixed displacement motor
Product type	Fixed displacement motor
Product width in	7.860
Product width mm	199.644
Special features	No special features
Speed sensor	Magnetic speed sensor with 2-pin Weatherpack connector
Working pressure bar	345
Working pressure psi	5000
