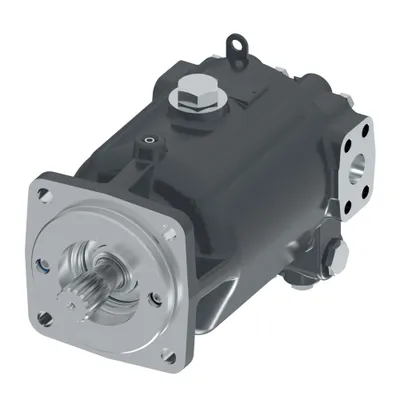

Danfoss 6433-219

MOTOR-FIXED DISPL, S1MF105, HHD6433143R000000065CDB

MPN: 6433-219
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6433-219?

Danfoss MOTOR-FIXED DISPL, S1MF105, HHD6433143R000000065CDB, manufacturer part number 6433-219. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Danfoss
CPRV setting	No charge pressure relief valve setting
CPRV type	No charge pressure relief valve
Design code	Design code B
Design type	Fixed clearance with lip seal (33/39/46/54/64 only)
Displacement	6.431 cid (105.39 cc)
End cover and comp valve block	Removable 0.073 orifice connected to Port-A
Flow rate gpm	103.6
Flow rate lpm	392.0
High pres relief valve port A	No HPRV in port-A
High pres relief valve port B	No HPRV in port-B
HPRV setting port A	HPRV Setting Port A, None
HPRV setting port B	HPRV Setting Port B, None
Identification	John Deere
Main ports	1.00 CODE 62M REAR ANG CD REAR
Maximum output speed	3720
Maximum temperature C	82.20
Maximum temperature F	180.00
Model Code 1	HHD6433143R000000065CDB
Mounting Flange	4-BOLT-C
Output shaft	14 tooth 12/24 pitch spline (33/39/46/54/64 only)
Output torque lbf-in2	6141.2
Output torque Nm	693.9
Paint	Finish green
Product height in	7.880
Product height mm	200.152
Product length in	15.690
Product length mm	398.526
Product Series	Heavy duty hydrostatic fixed displacement motor
Product type	Fixed displacement motor
Product width in	7.860
Product width mm	199.644
Special features	Socket head plugs in both case drain ports, sae mounting flange with 13.5mm holes and machined spot faces
Speed sensor	No speed sensor
Working pressure bar	414
Working pressure psi	6000
