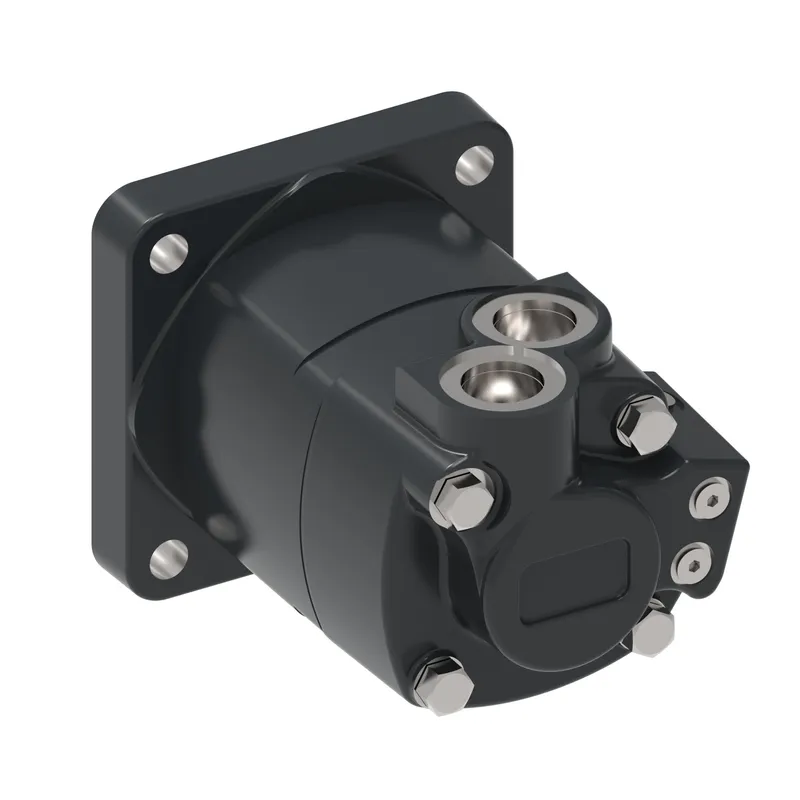

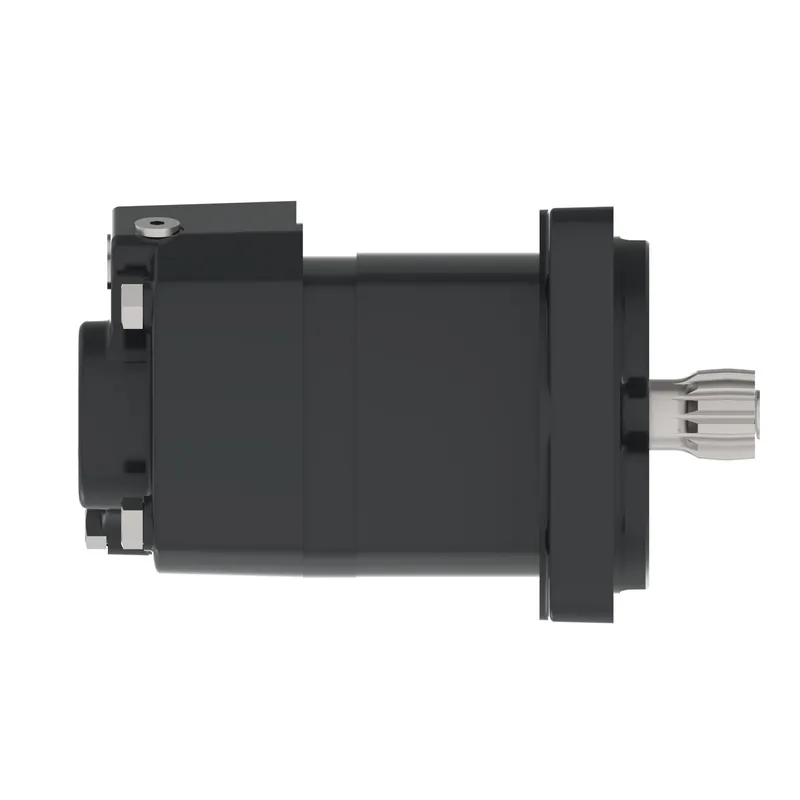

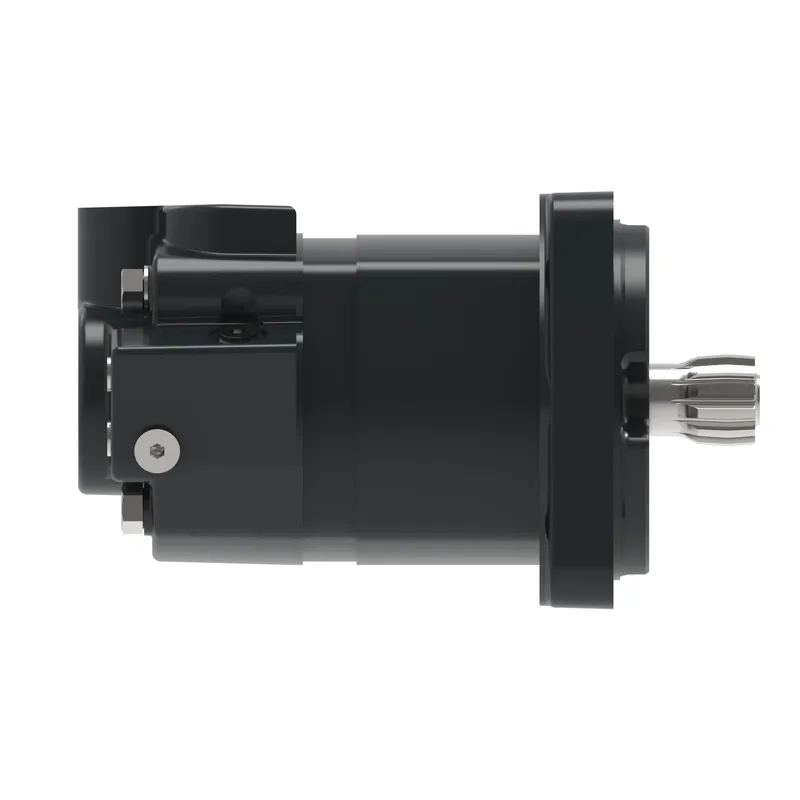

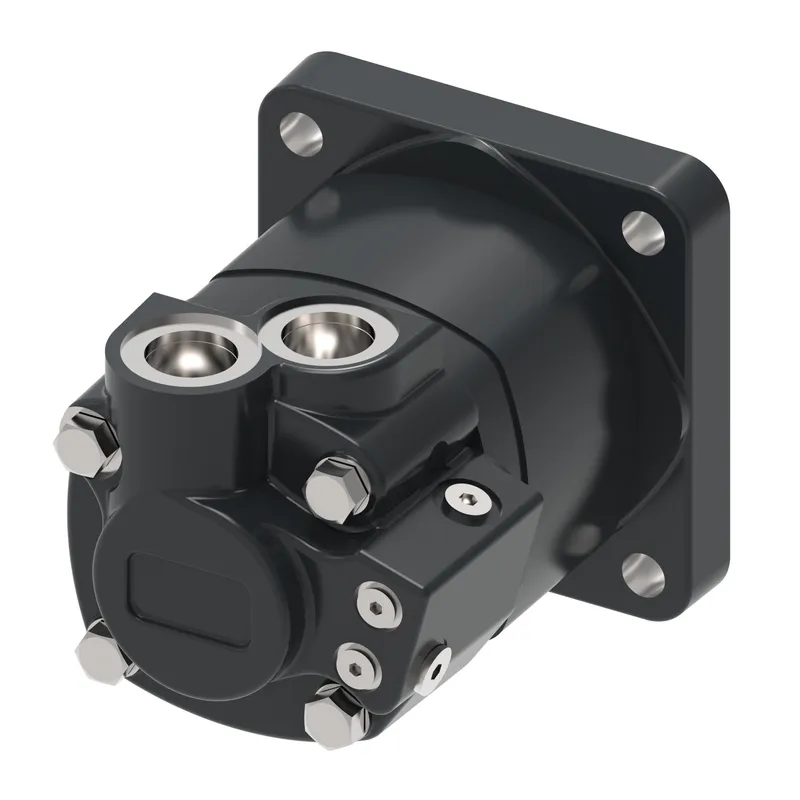

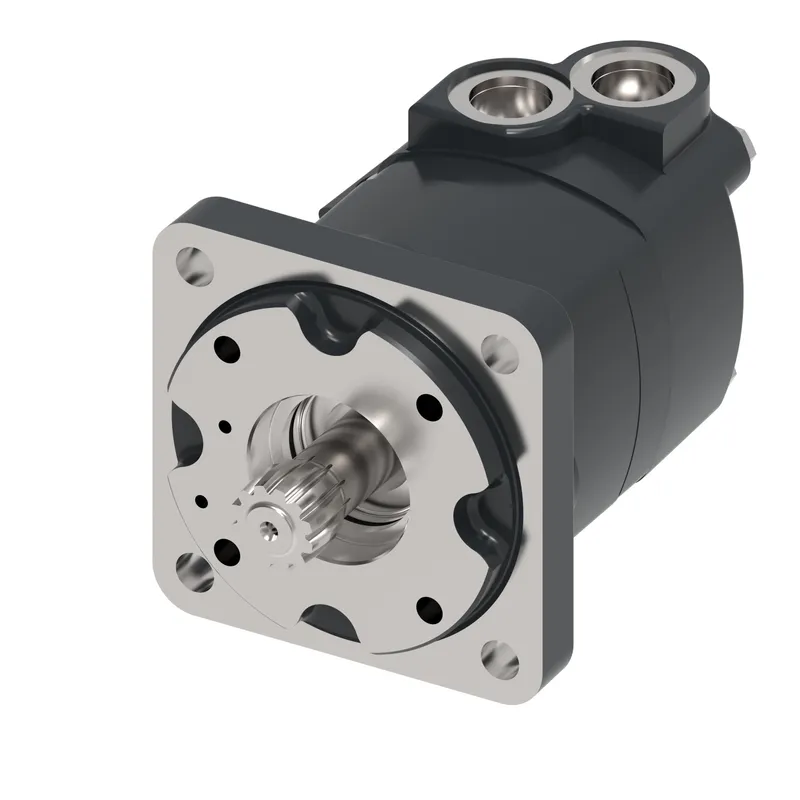

MOTOR-ORBITAL,XL4 SERIES 160 [9.9], MC4160AA00AC0300000000000AB00A
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 628AG00002A be shipped?
628AG00002A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 628AG00002A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 628AG00002A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 628AG00002A, subject to availability and destination.
Danfoss MOTOR-ORBITAL,XL4 SERIES 160 [9.9], MC4160AA00AC0300000000000AB00A, manufacturer part number 628AG00002A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | MC4160AA00AC0300000000000AB00A |
| Motor Series | XL4 Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor size | 160 |
| Geometric displacement [cm3/r [in3/r]] | 162.2 [9.90] |
| Motor type | Short |
| Motor function | Standard |
| Mounting flange type | 4 Bolt - Short |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 127.0 x 12.5, 161.9, 14.3 [5.00 x 0.49, 6.38, 0.56] |
| Shaft type | None |
| Shaft dimension | n/a |
| Shaft Key | n/a |
| Main port thread type | UN / UNF |
| Main port style | Sideport - staggered |
| Main port dimension | 1 1/16 - 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Painted, Black |
| Special features hardware | None |
| Special Features Assembly | Standard |
| Dust seal | n/a |
| Shaft Seal | n/a |
| Seal Kit | Z331-75 |
| Front bearing type | n/a |
| Rear bearing type | n/a |
| Orbital gearwheel set | Standard |
| Check valve function | Yes |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design code | First (standard) |
| Accessories | None |
| Brand | Danfoss |
| Case flow options | .4375-20 UNF-2B SAE o-ring port with check valve |
| Customer identification | None |
| Displacement | 162.2 cm3/r [9.90 in3/r] |
| Geroler options | Standard |
| Low pressure relief | None |
| Mounting type | Bearingless, 4 bolt: 127.00 [5.000] pilot DIA. 14.27 [.562] DIA. holes on 161.92 [6.375] DIA. bolt circle |
| Output shaft type | None |
| Paint packaging | Black |
| Port Type | 1.0625-12 UN-2B SAE o-ring ports -staggered ports |
| Pressure flow option | None |
| Product | Motor |
| Seal options | Standard |
| Series | Jining 4000 series |
| Special assembly instructions | None |
| Sub brand | Xcel |
