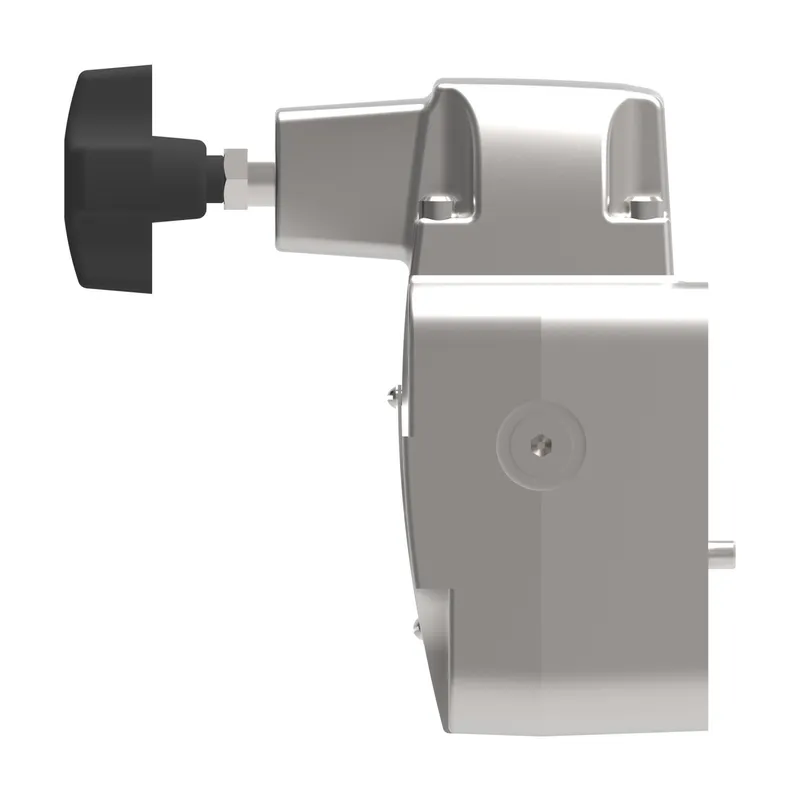

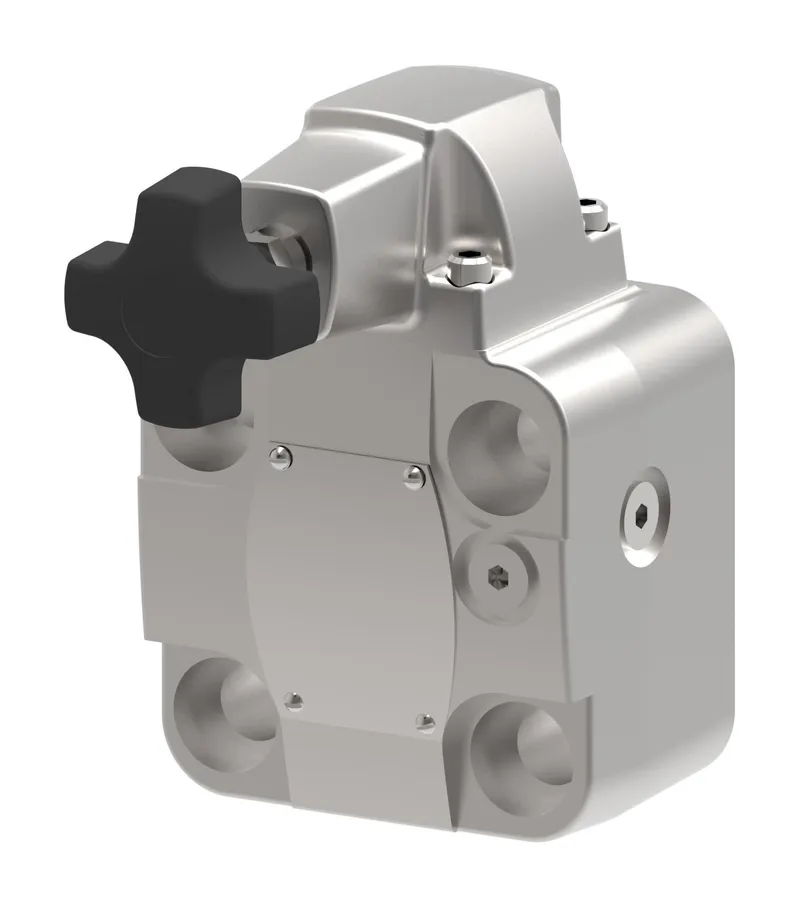

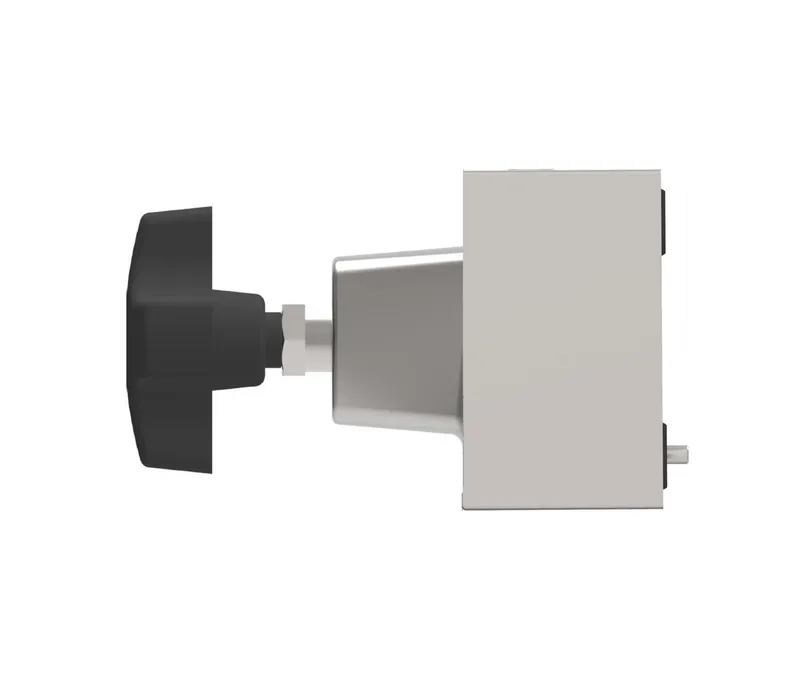

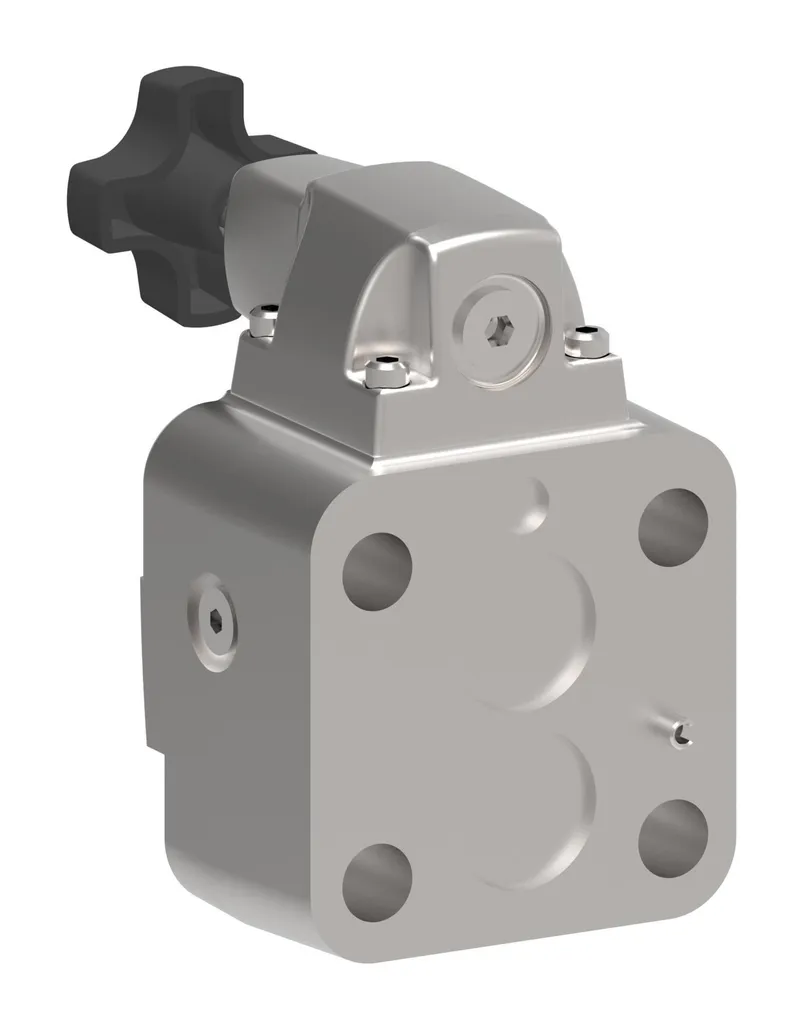

Danfoss 628135

CG-10-BB-DGL-0A-20, CG10BBDGL0A20

MPN: 628135
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 628135?

Danfoss CG-10-BB-DGL-0A-20, CG10BBDGL0A20, manufacturer part number 628135. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Adjustment range	8.5-70 Bar & 100-210 Bar
Adjustment range head 1	8.5-70 bar (125-1000 psi)
Adjustment range head 3	8.5-70 bar (125-1000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Coil voltage	115 VAC 60 Hz
Design Series	20 Series
Electrical connection	Flying lead
Flow rate lpm	454.0
Flow rate USGPM	120.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	No
Indicator Light	No
Manual override	None
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	CG10BBDGL0A20
Performance	Standard
Product height in	9.460
Product height mm	240.284
Product length in	7.380
Product length mm	187.452
Product width in	5.030
Product width mm	127.762
Seal material	Nitrile
Size	Size 10
Special feature	None
Stage	Two stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Relief valve
Working temperature max C	80
Working temperature max F	176
Working temperature min C	-20
Working temperature min F	-4
