Danfoss 627AG00003A

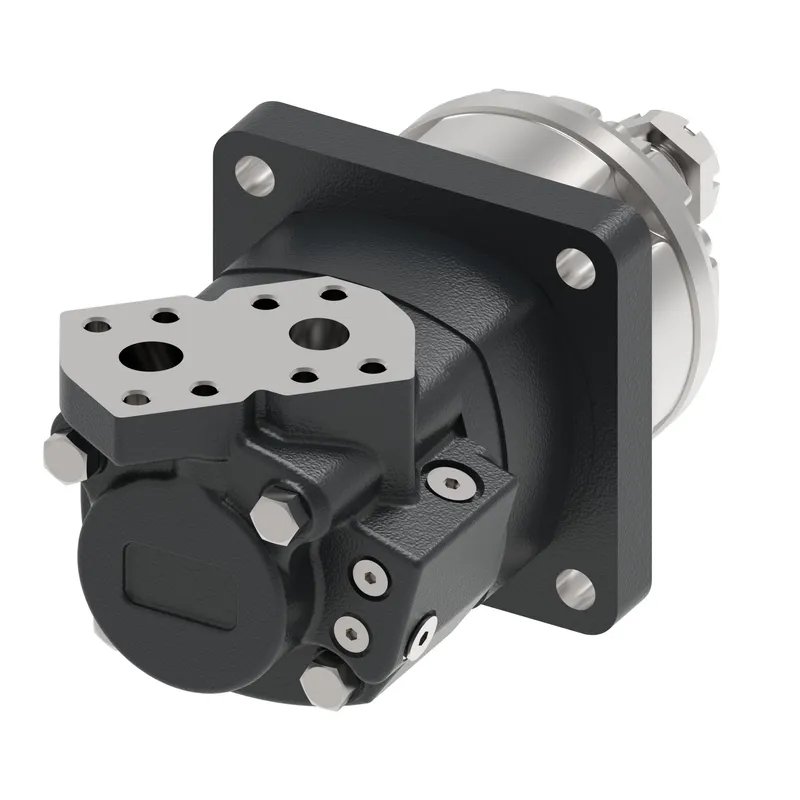

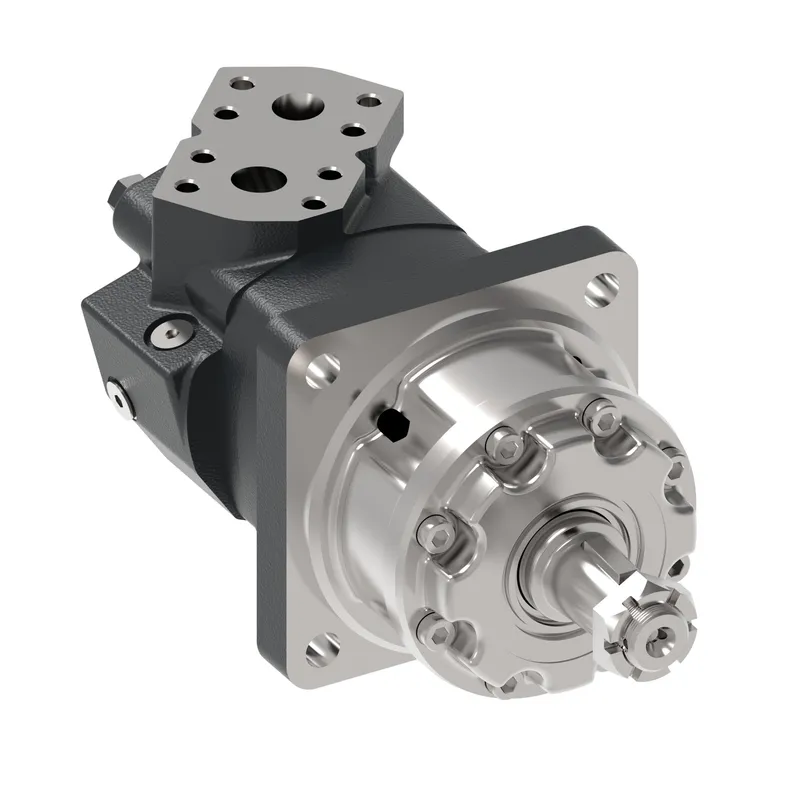

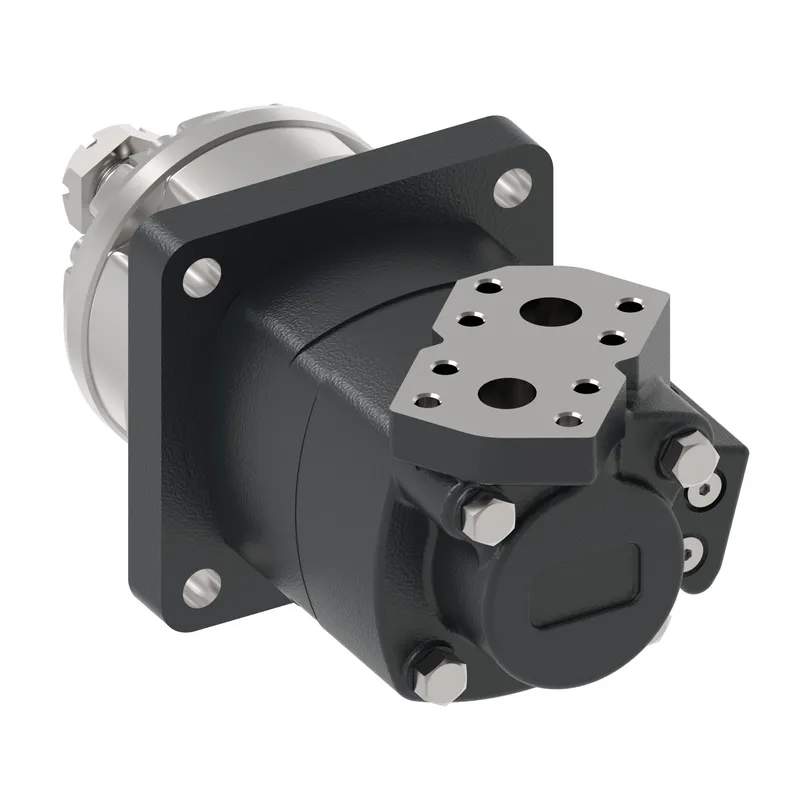

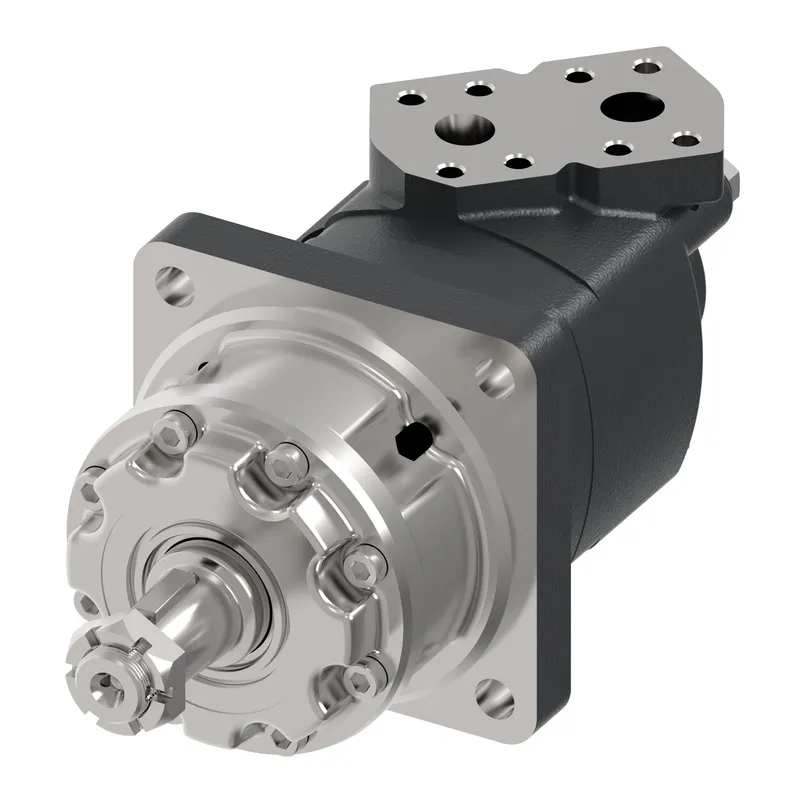

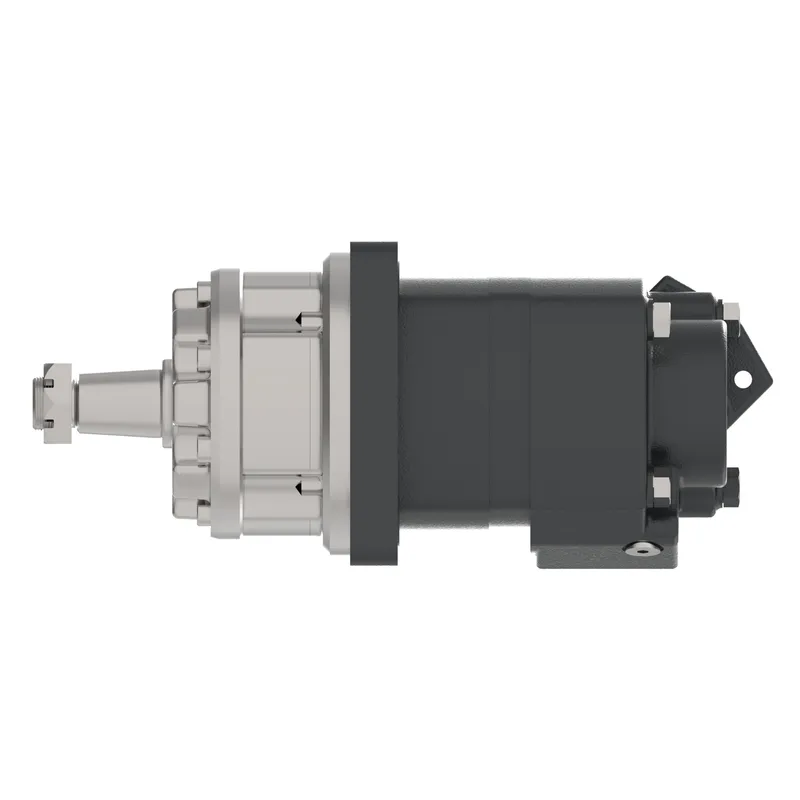

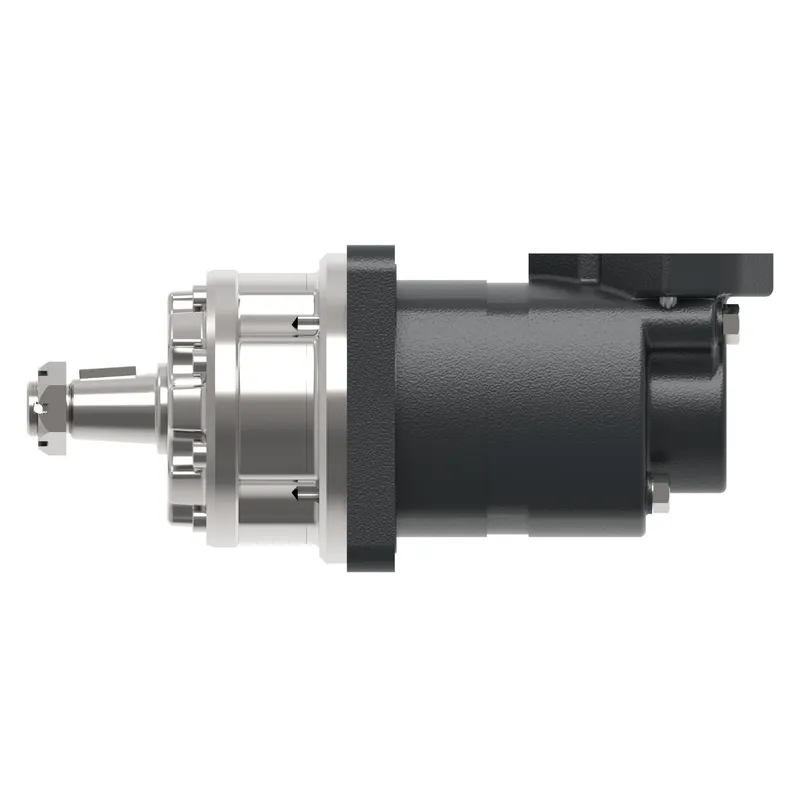

MOTOR-ORBITAL,XL4 SERIES 160 [9.9], MC4160AE06AD0300000000000AB00A

MPN: 627AG00003A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 627AG00003A?

Danfoss MOTOR-ORBITAL,XL4 SERIES 160 [9.9], MC4160AE06AD0300000000000AB00A, manufacturer part number 627AG00003A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC4160AE06AD0300000000000AB00A
Motor Series	XL4 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	160
Geometric displacement [cm3/r [in3/r]]	162.2 [9.90]
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	139.7 x 81.8, 165.1, 14.3 [5.50 x 3.22, 6.50, 0.56]
Shaft dimension	Dia. 1 1/4 inch, 1 - 20 UNEF-2A thread in shaft end
Shaft Key	Square key, 5/16 x 1 inch
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	19.0 mm drilled hole, 8 x 3/8 -16 UNC-2B block mounting threads
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black
Special features hardware	None
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	Z331-32
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	First (standard)
Accessories	None
Brand	Danfoss
Case flow options	.4375-20 UNF-2B SAE o-ring port with check valve
Customer identification	None
Displacement	162.2 cm3/r [9.90 in3/r]
Geroler options	Standard
Low pressure relief	None
Mounting type	Wheel, 4 bolt; 139.70 [5.500] pilot DIA.14.27[.562]DIA. holes on 165.10 [6.500] DIA. bolt circle.
Output shaft type	31.75 [1.250] DIA. tapered with 7.938 [.3125] SQ x 25.40 [1.000] straight key, 1.000-20 UNEF-2A thread with slotted hex nut
Paint packaging	Black
Port Type	19.05 [.750] 4 bolt(.4375-20 UNF-2B ) split flange staggered ports standard pressure series (code 61)
Pressure flow option	None
Product	Motor
Seal options	Standard
Series	Jining 4000 series
Special assembly instructions	None
Sub brand	Xcel
