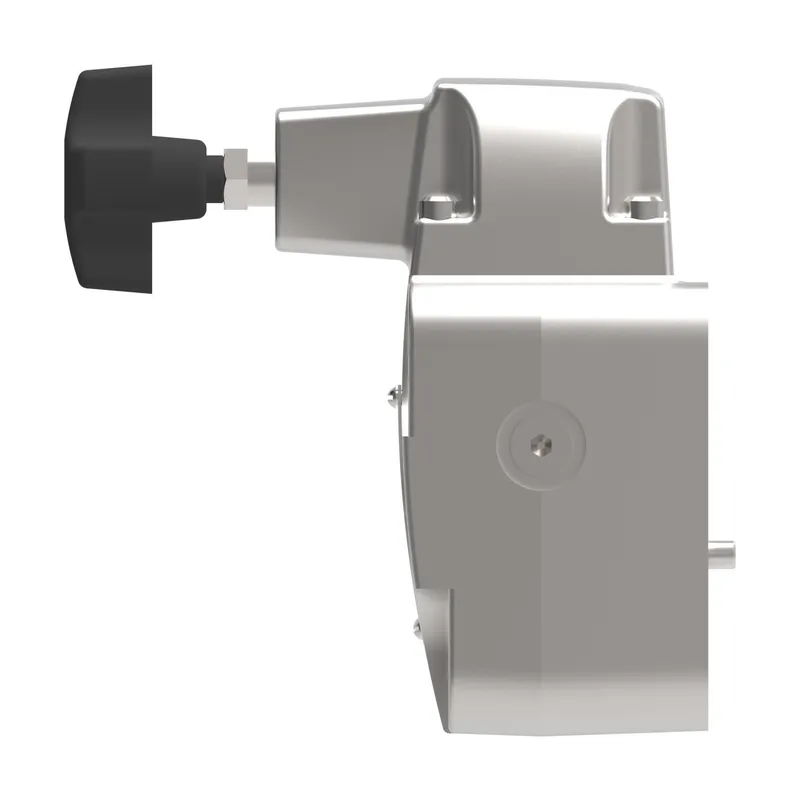

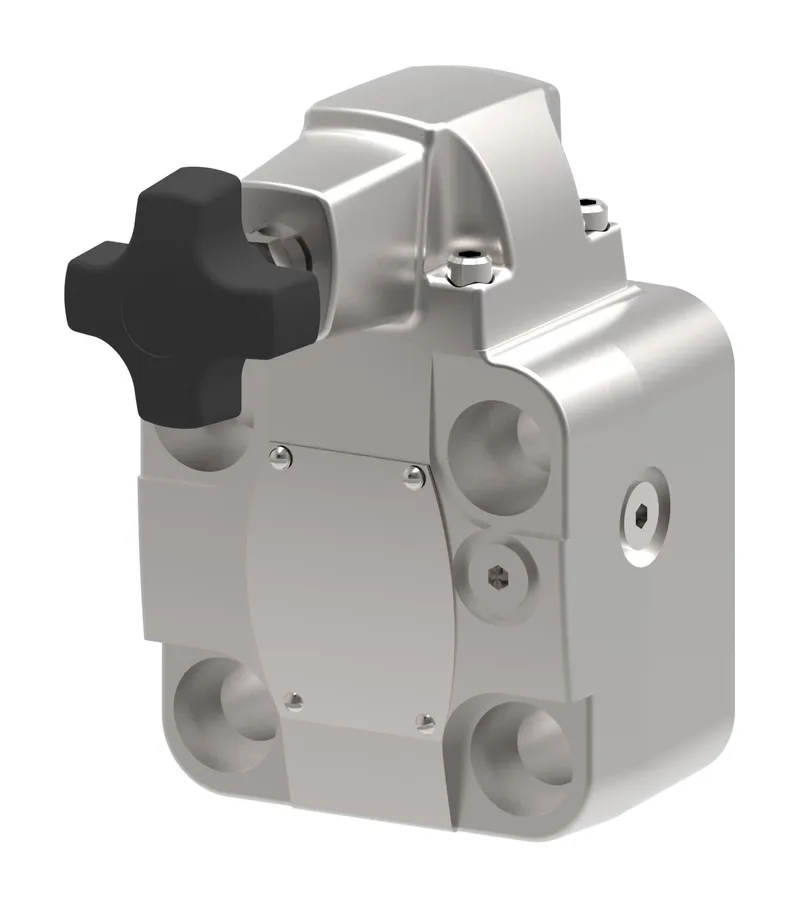

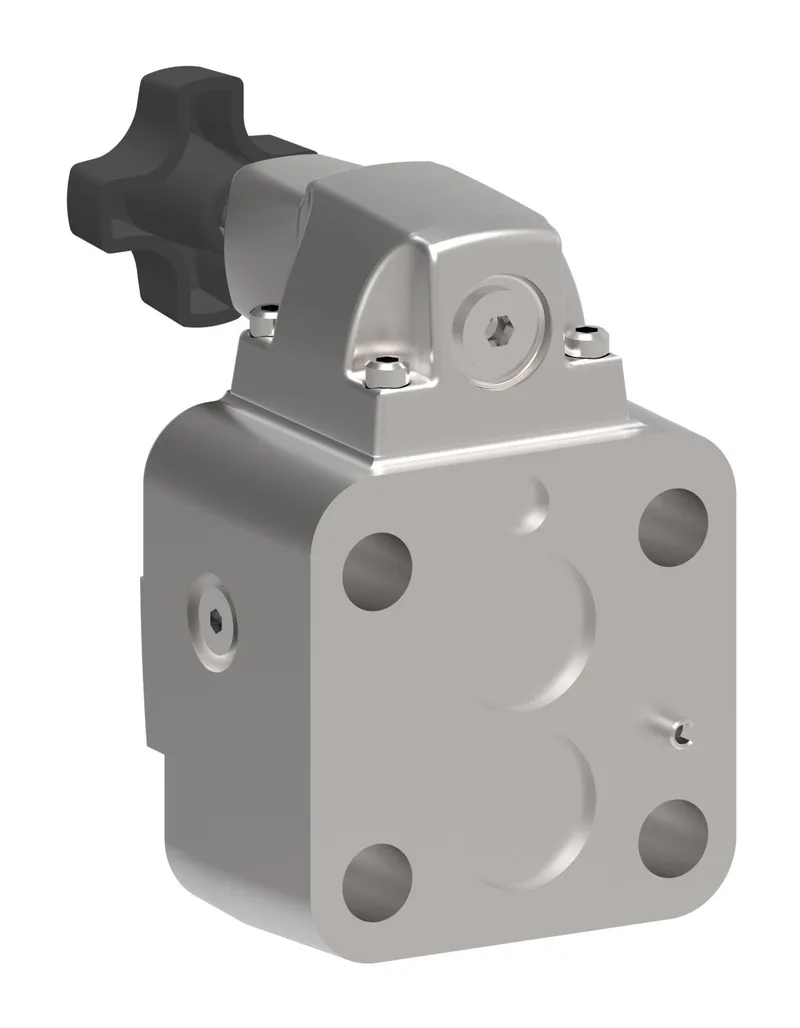

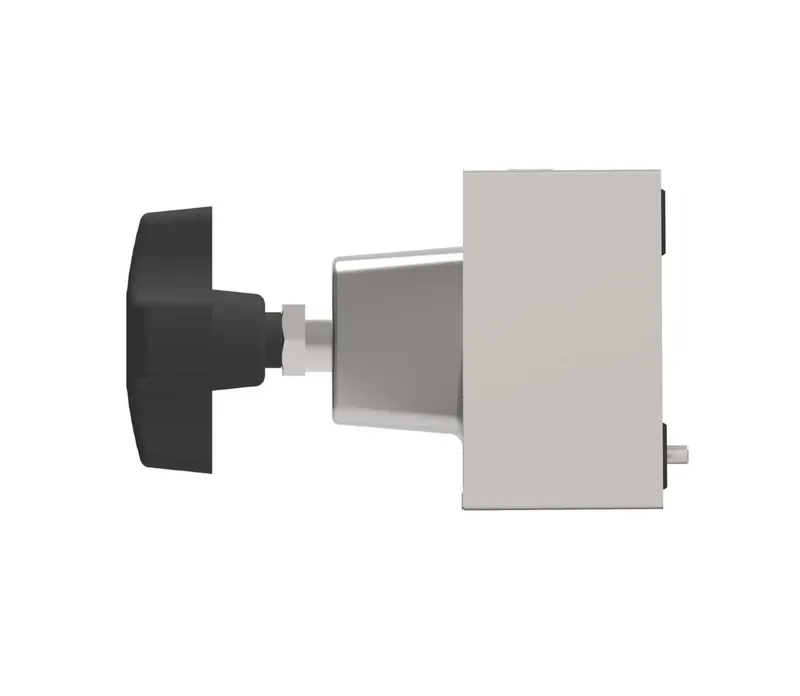

Danfoss 627288

CG-10-CECV-DGL-8C-20, CG10CECVDGL8C20

MPN: 627288
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 627288?

Danfoss CG-10-CECV-DGL-8C-20, CG10CECVDGL8C20, manufacturer part number 627288. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Adjustment range	35-140 bar (500-2000 psi)
Adjustment range head 1	35-140 bar (500-2000 psi)
Adjustment range head 2	Vent
Adjustment range head 3	35-140 bar (500-2000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Coil voltage	115 VAC 60 Hz
Design Series	20 Series
Electrical connection	Flying lead
Flow rate lpm	454.0
Flow rate USGPM	120.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Petroleum oils
Hi-vent spring	Yes
Indicator Light	No
Manual override	None
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	CG10CECVDGL8C20
Performance	Standard
Product height in	9.870
Product height mm	250.698
Product length in	10.310
Product length mm	261.874
Product width in	5.030
Product width mm	127.762
Seal material	Nitrile
Size	Size 10
Special feature	None
Stage	Two stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Relief valve
Working temperature max C	80
Working temperature max F	176
Working temperature min C	-20
Working temperature min F	-4

627288: frequently asked questions

When can 627288 be shipped?

627288 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 627288 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 627288 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 627288, subject to availability and destination.
