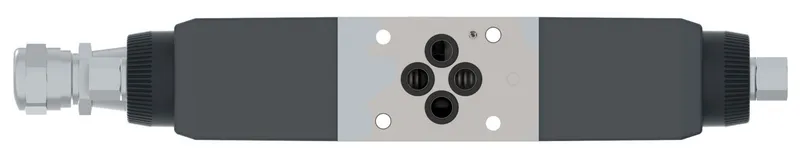

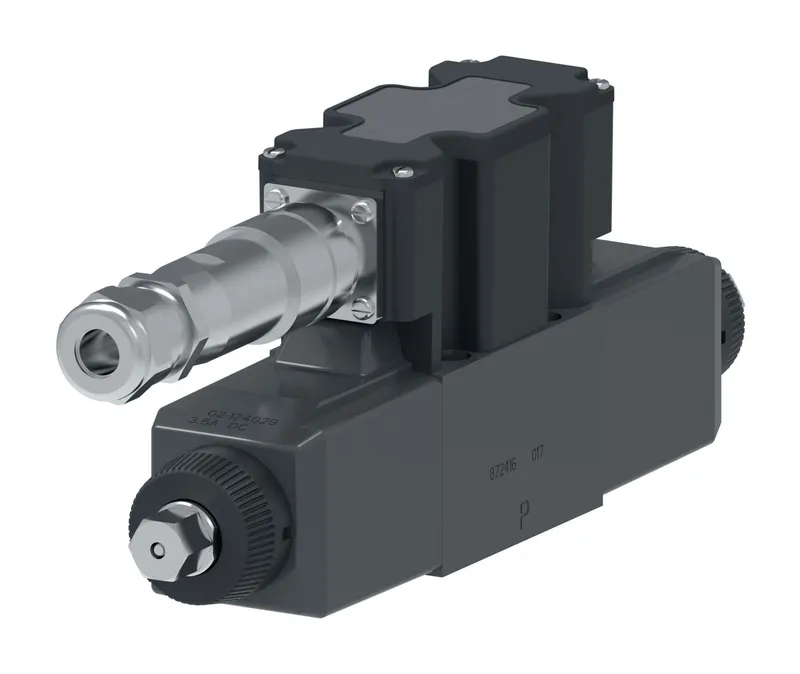

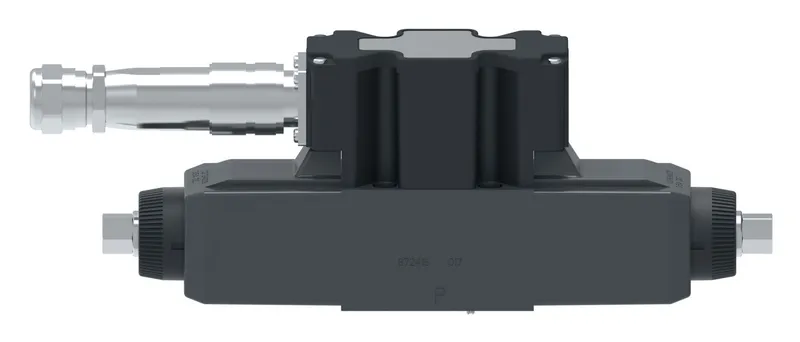

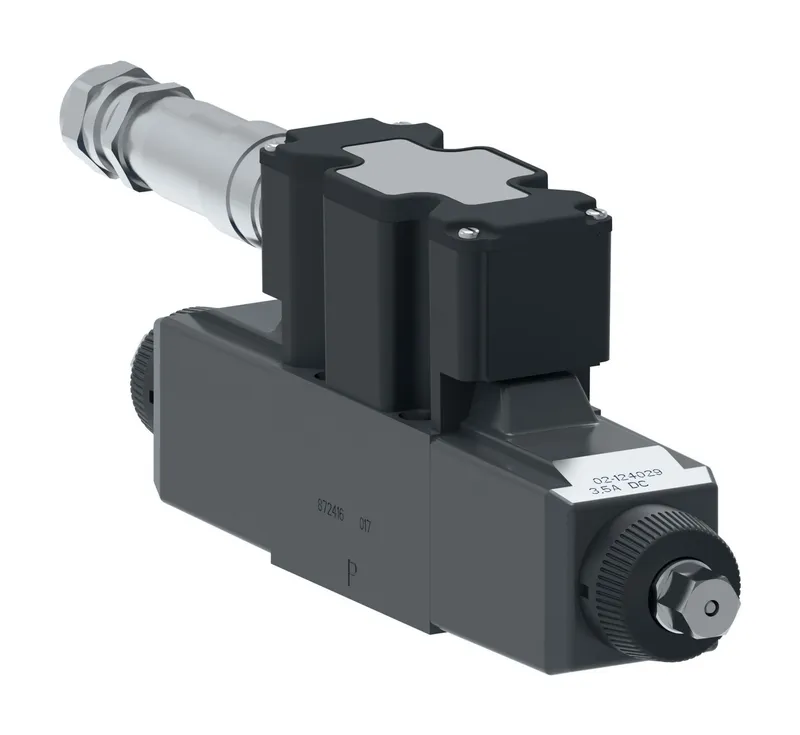

Danfoss 6040944-001

KBDG4V-3-33C30X-H-M1-PH7-H7-11, KBDG4V333C30XHM1PH7H711

MPN: 6040944-001
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6040944-001?

Danfoss KBDG4V-3-33C30X-H-M1-PH7-H7-11, KBDG4V333C30XHM1PH7H711, manufacturer part number 6040944-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	30.00
A Port flow USGPM	7.90
Actuation Type	Solenoid controlled
B Port flow LPM	30.00
B Port flow USGPM	7.90
Brand	Vickers by Danfoss
Build orientation	Solenoid 'B' at port 'A' end of valve and solenoid 'A' at port 'B' end of valve
Build type	Spring centered
Coil voltage	24 Volt DC
Command input	+/- 10V control signal
Communication protocol	None
Current	1.2 amp
Design Series	11 Series
Electrical Connection	Electrical (PH7) as PE7 but with pin C used for enable signal
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	Water-resistant
Model Code 1	KBDG4V333C30XHM1PH7H711
On board electronics	Yes
Performance	Standard
Pressure drop rated flow BAR	5
Pressure drop rated flow PSI	72
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.950
Product height mm	100.330
Product length in	10.870
Product length mm	276.098
Product width in	1.810
Product width mm	45.974
ProFX compatible	No
Reducer module	No
Seal type	Fluorocarbon
Special features	None
Spool Type	P blocked, A & B to tank
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

6040944-001: frequently asked questions

When can 6040944-001 be shipped?

6040944-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6040944-001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6040944-001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6040944-001, subject to availability and destination.
