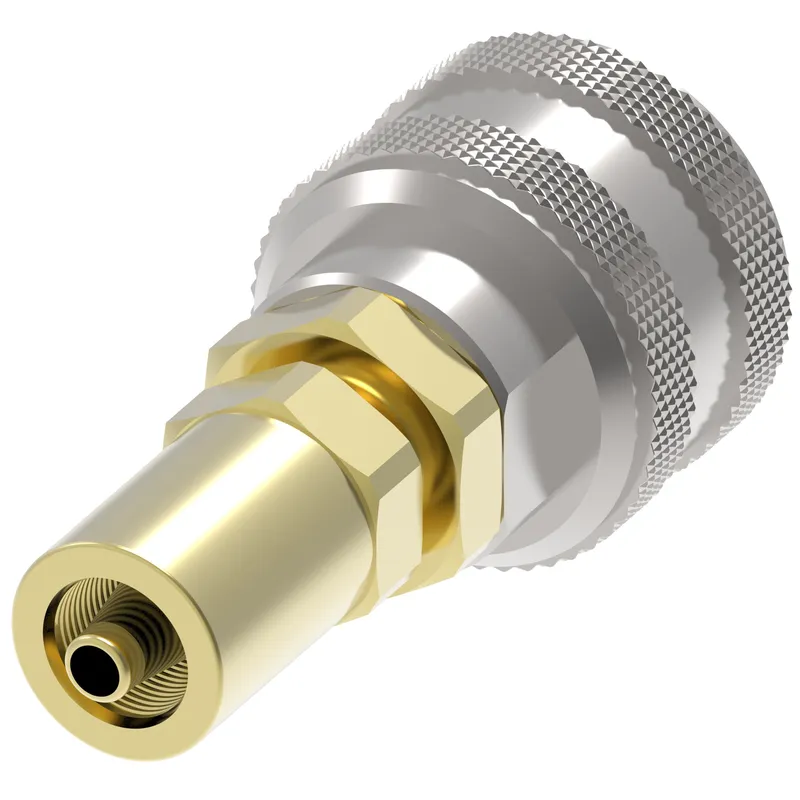

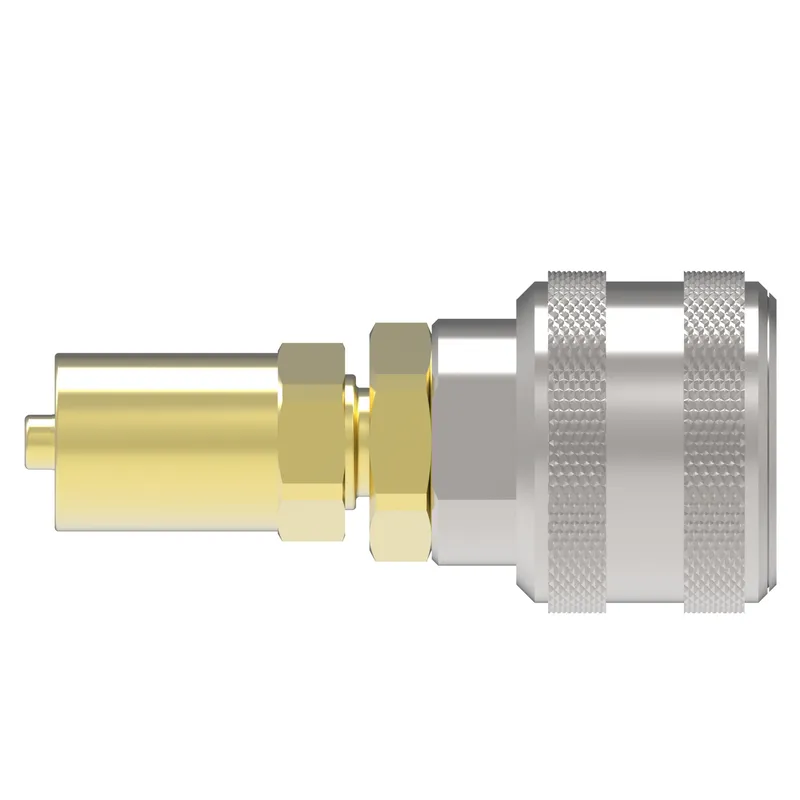

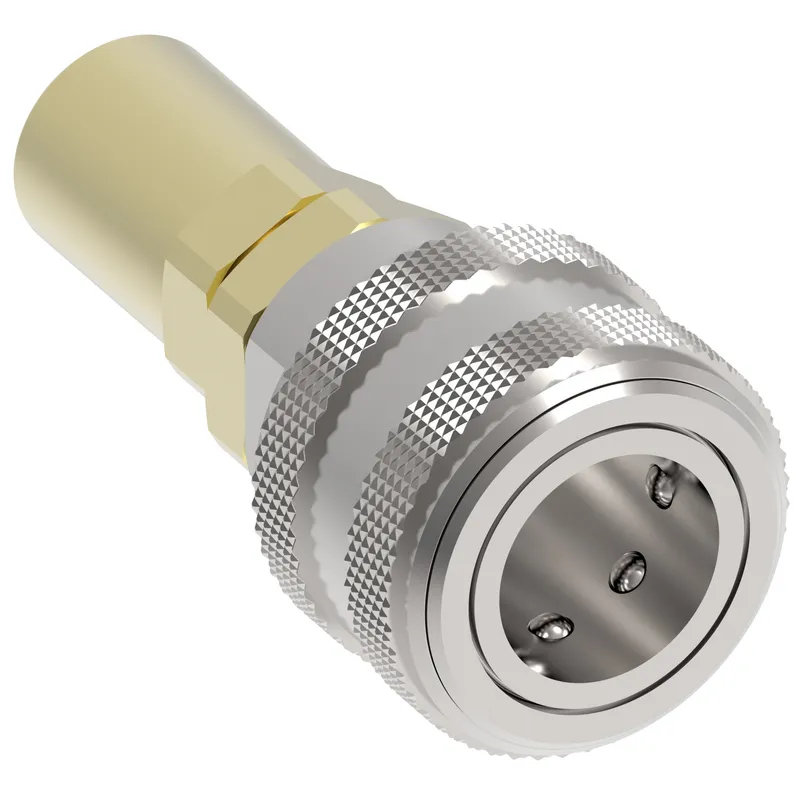

Danfoss 5SP

Cplng, 5000 SERIES FEMALE, BRASS

MPN: 5SP
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 5SP?

Danfoss Cplng, 5000 SERIES FEMALE, BRASS, manufacturer part number 5SP. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146166968
Angle shape	Straight
Body size	1/2
Brand	Danfoss
Burst pressure min bar	138
Burst pressure min psi	2000
Connection style	Manual connect
Flow rate GPM	539.00
Flow rate LPM	2040.34
Fluid compatibility	Air, Gases and liquids
Hex size 1 IN	0.940
Hex size 1 MM	23.876
Item type	Female half
Latch type	Push/pull
Product length in	4.100
Product material	Brass
Seal material	Nitrile (NBR)
Sub brand	Hansen
Valve type	2 way
Working pressure max psi	500
Working pressure max BAR	34
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
