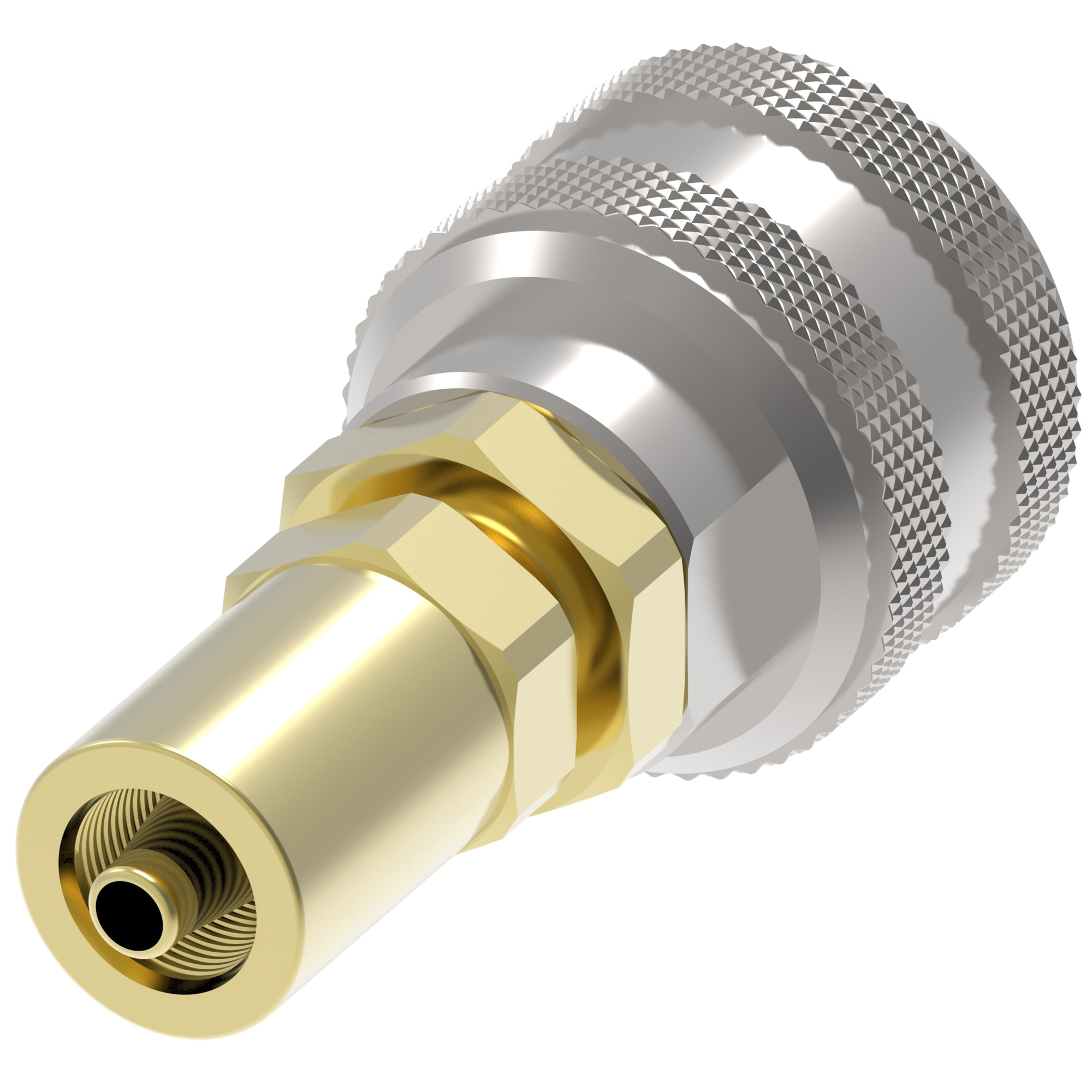

Danfoss 5SD9
COUPLING,5000,F,1/2,B,BARB,NBR
- MPN
- 5SD9
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Danfoss 5SD9?
Danfoss COUPLING,5000,F,1/2,B,BARB,NBR, manufacturer part number 5SD9. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146166944 |
| Angle shape | Straight |
| Body size | 1/2 |
| Burst pressure min bar | 138 |
| Burst pressure min psi | 2000 |
| Compliances | A-A-59439 |
| Connection style | Manual connect |
| End type 1 | Line/hose/tube |
| Flow rate GPM | 539.00 |
| Flow rate LPM | 2040.34 |
| Fluid compatibility | Air, Gases and liquids |
| Hex size 1 IN | 0.810 |
| Hex size 1 MM | 20.574 |
| Item type | Female half |
| Latch type | Push/pull |
| Product length in | 3.500 |
| Product material | Brass |
| Seal material | Nitrile (NBR) |
| Valve type | 2 way |
| Working pressure max psi | 500 |
| Working pressure max BAR | 34 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
5SD9: frequently asked questions
When can 5SD9 be shipped?
5SD9 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5SD9 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5SD9 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5SD9, subject to availability and destination.
