Danfoss 597331

MPN: 597331
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 597331?

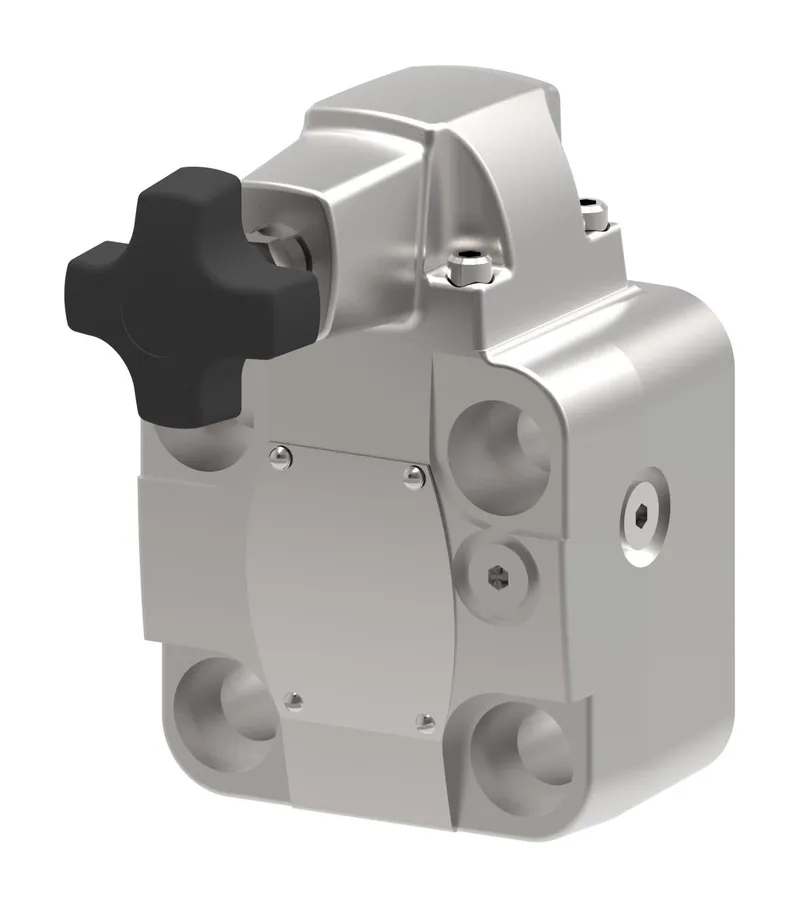

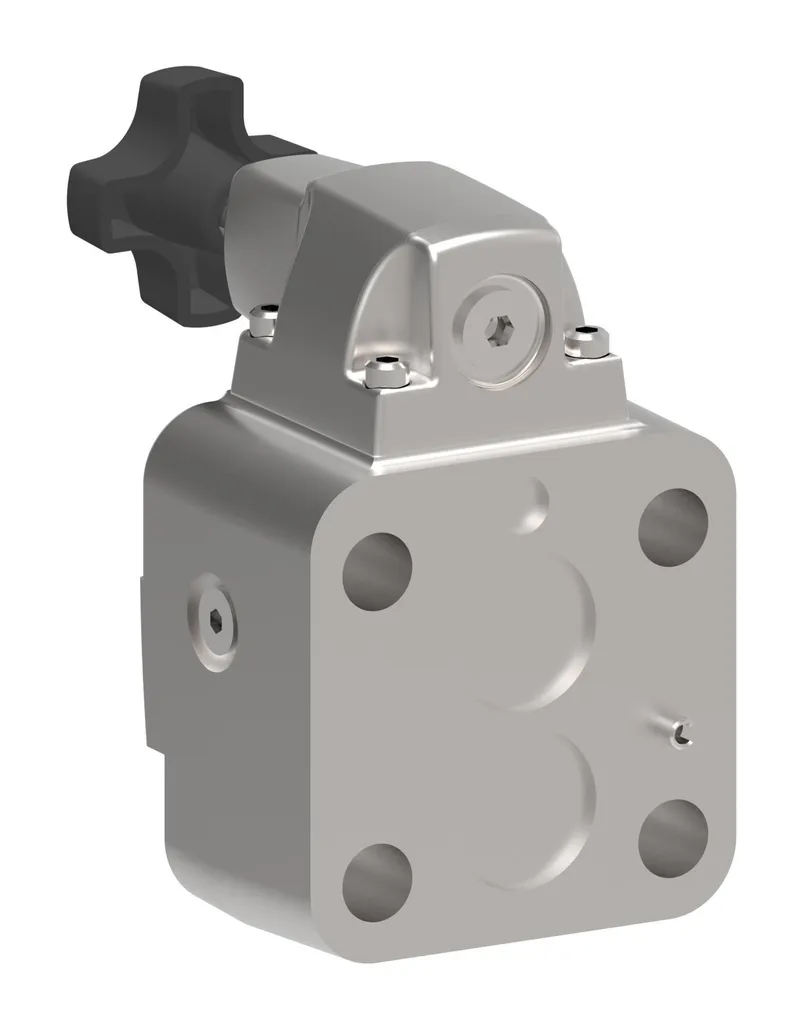

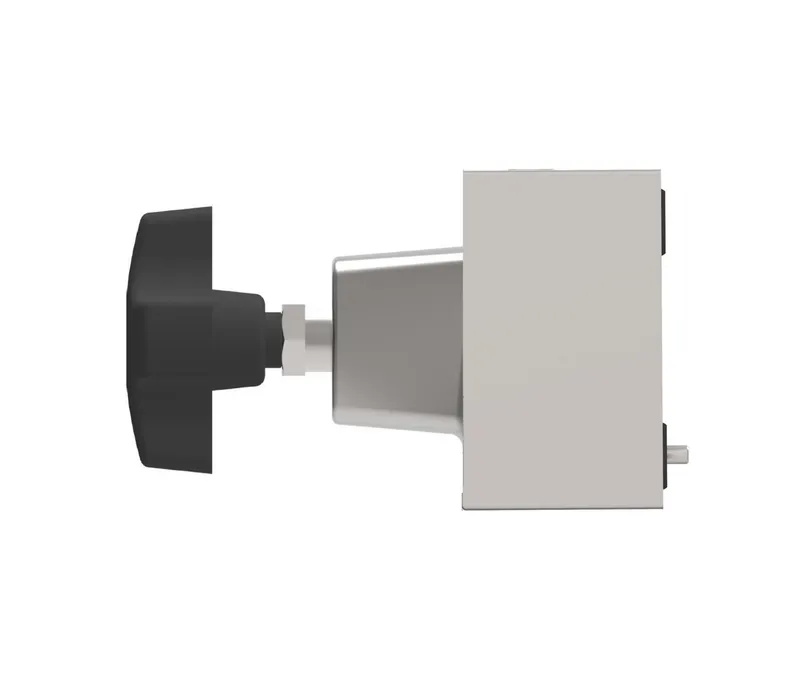

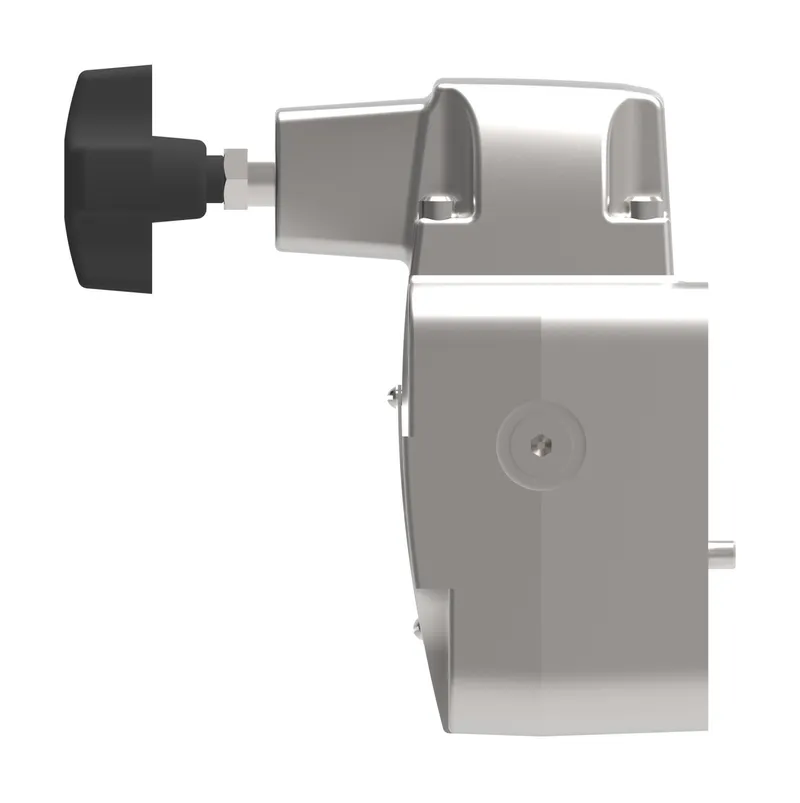

Danfoss F3 CG 10 C 30, F3CG10C30, manufacturer part number 597331. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Manually operated
Adjustment range	35-140 bar (500-2000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	30 Series
Electrical connection	None
Flow rate lpm	454.0
Flow rate USGPM	120.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Phosphate esters
Hi-vent spring	No
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	F3CG10C30
Performance	Standard
Product height in	6.700
Product height mm	170.180
Product length in	6.440
Product length mm	163.576
Product width in	5.250
Product width mm	133.35
Seal material	Fluorocarbon
Size	Size 10
Special feature	None
Stage	Single stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
