Danfoss 597327

Industrial valve

MPN: 597327
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 597327?

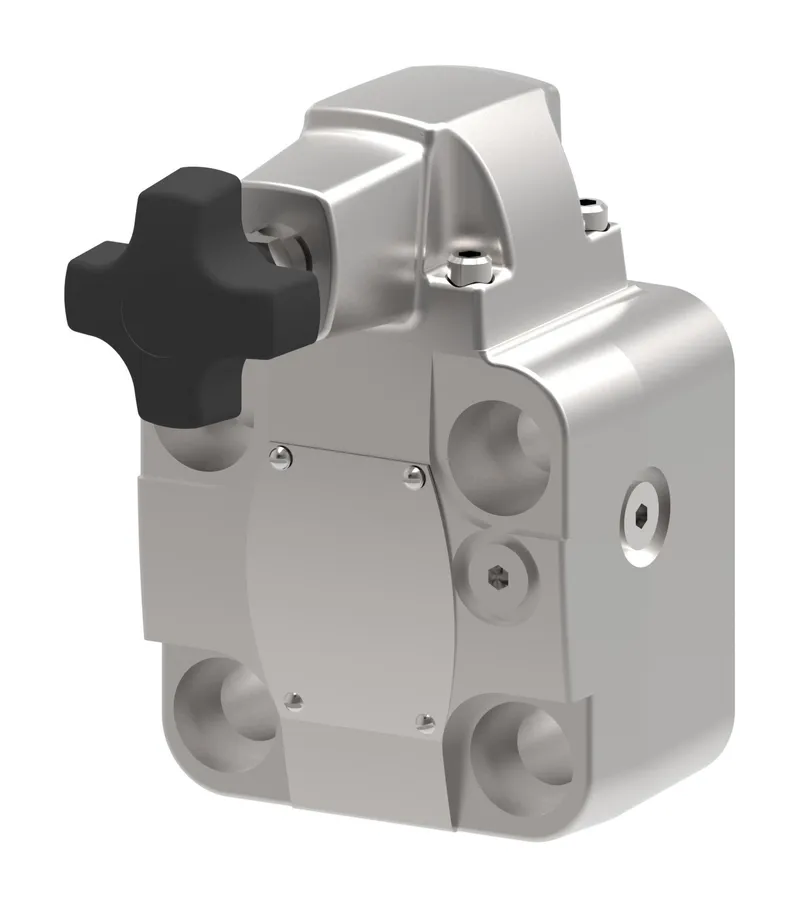

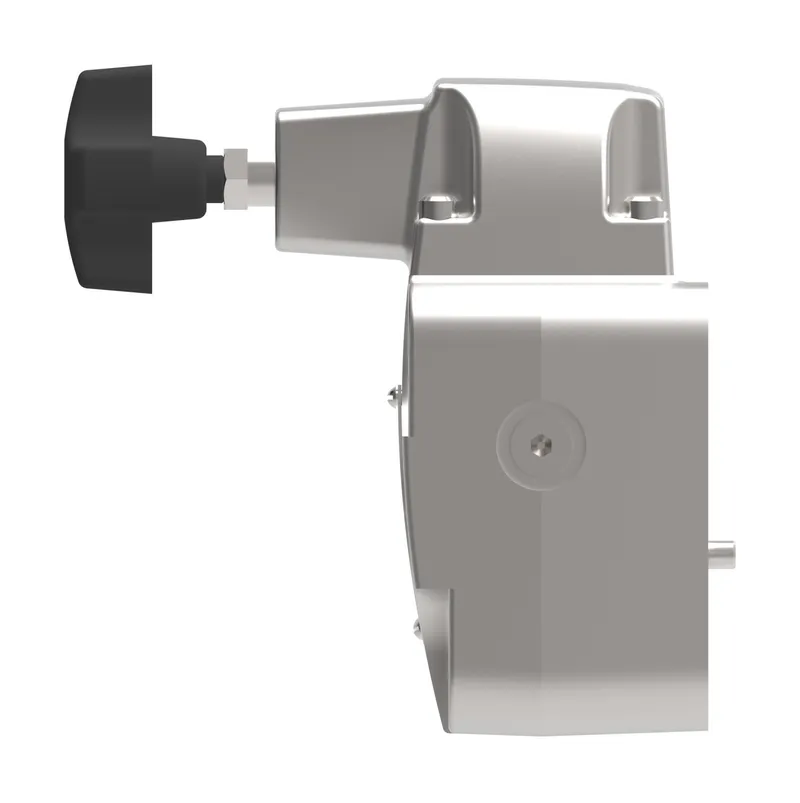

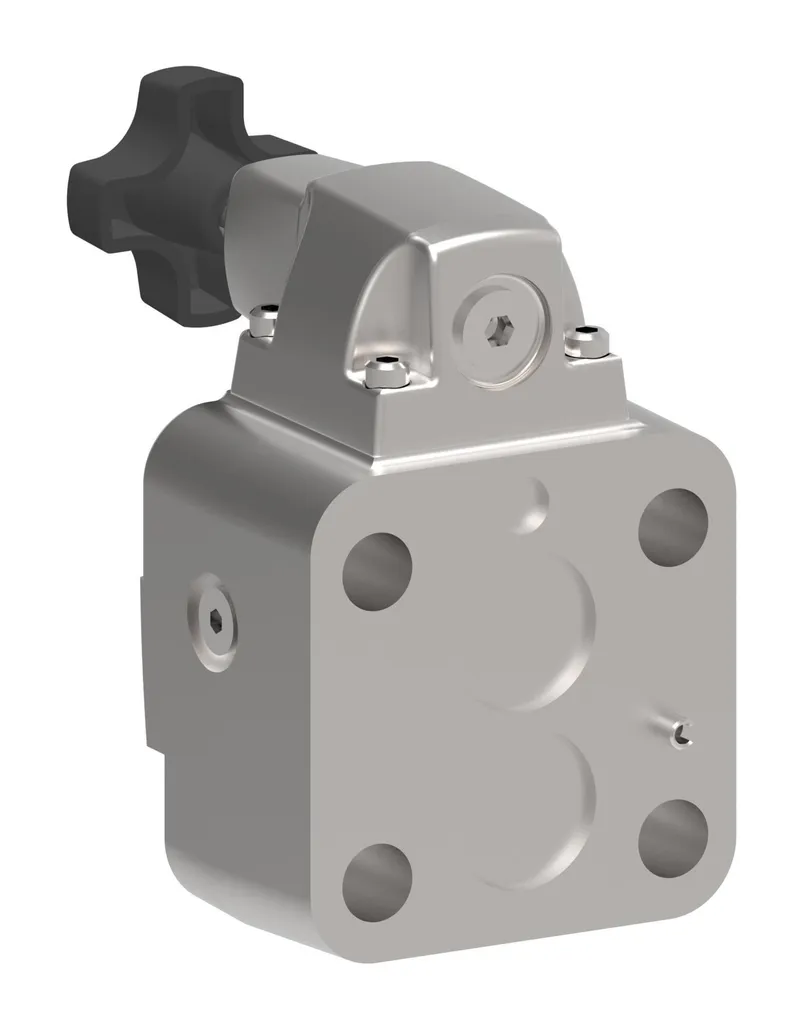

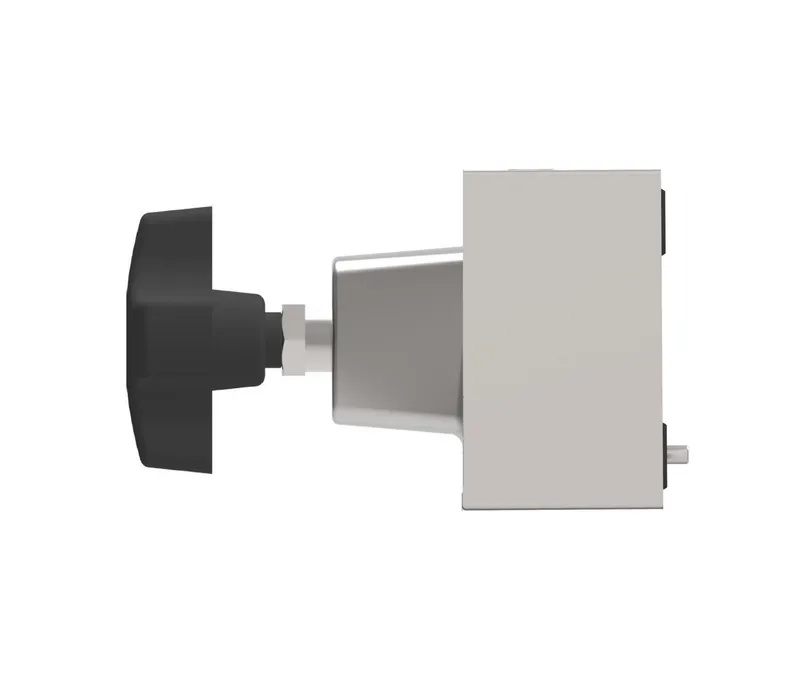

Danfoss F3 CG 06 BV 50, F3CG06BV50, manufacturer part number 597327. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Manually operated
Adjustment range	8.5-70 bar (125-1000 psi)
Adjustment type	Screw with locknut
Brand	Vickers by Danfoss
Design Series	50 Series
Electrical connection	None
Flow rate lpm	227.0
Flow rate USGPM	60.0
Fluid Cleanliness	19/17/14 Micron
Fluid compatibility	Phosphate esters
Hi-vent spring	Yes
Indicator Light	No
Maximum pressure BAR	210
Maximum pressure PSI	3000
Model Code 1	F3CG06BV50
Performance	Standard
Product height in	6.280
Product height mm	159.512
Product length in	6.160
Product length mm	156.464
Product width in	4.190
Product width mm	106.426
Seal material	Fluorocarbon
Size	Size 06
Special feature	None
Stage	Single stage
Valve Mount Type	Subplate/manifold mounted
Valve type	Relief valve
Working temperature max C	70
Working temperature max F	158
Working temperature min C	-20
Working temperature min F	-4
