Danfoss 586499

MPN: 586499
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 586499?

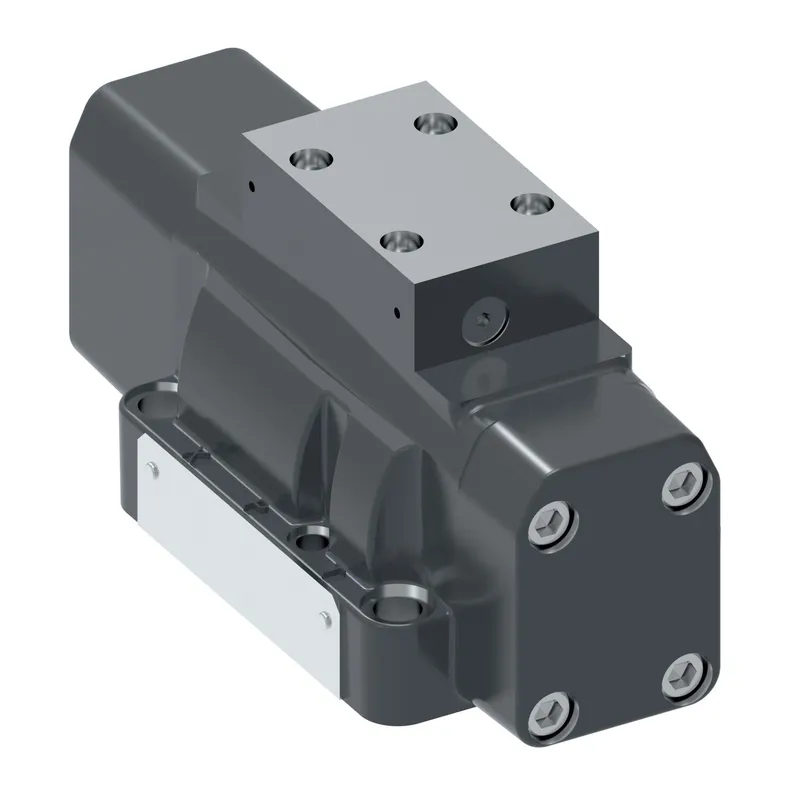

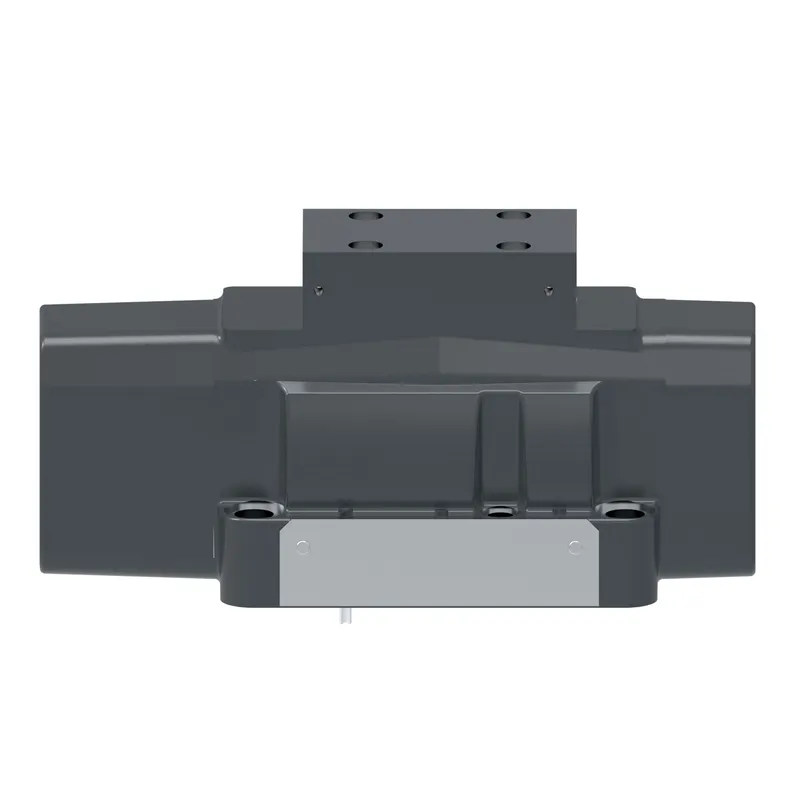

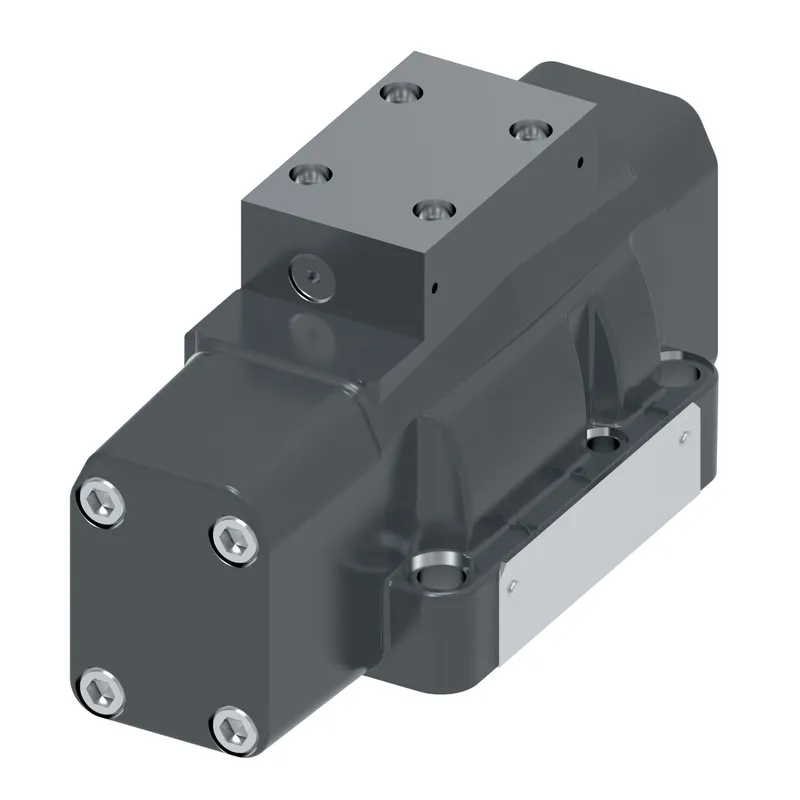

Danfoss DG3S4-042AX-40, DG3S4042AX40, manufacturer part number 586499. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Pilot operated
Brand	Vickers by Danfoss
Coil Rating	None
Design Series	40 Series
Electrical Connection	None
Energ Time	X-Fast Response
Flow rate upto GPM	60.0
Flow rate upto LPM	227.0
Fluid Cleanliness	20/18/15 micron
Fluid compatibility	Petroleum oils
Indicator Light	No

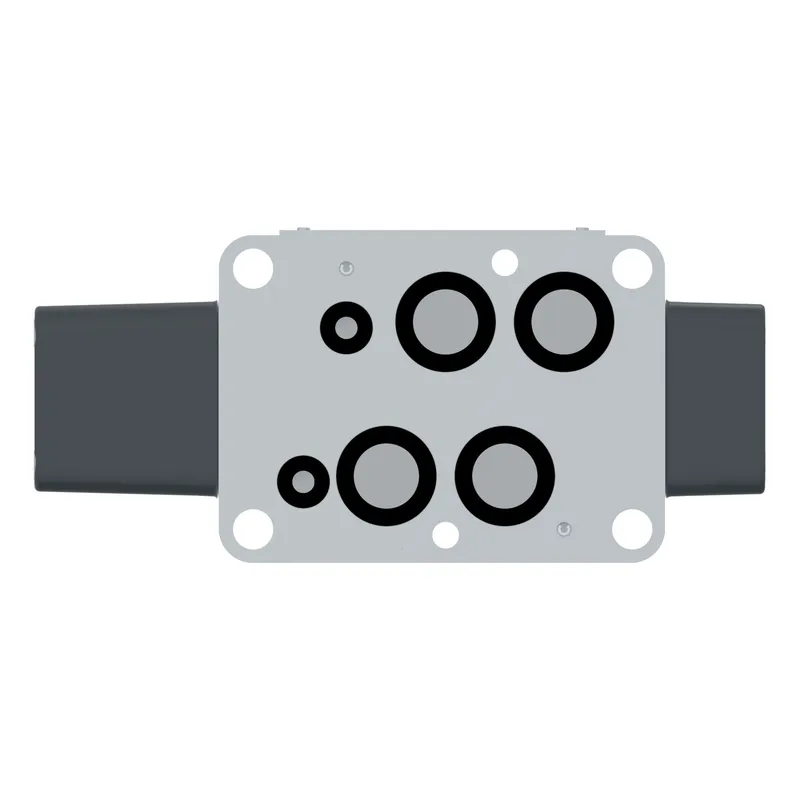

Interface	ISO4401-07
Manual override	None
Model Code 1	DG3S4042AX40
Performance	Standard performance
Pressure rating BAR	210
Pressure rating PSI	3000
Product height in	3.750
Product length in	4.810
Product length mm	122.174
Product width in	3.500
Product width mm	88.9
Seal type	Buna-N
Solenoid Energising ID	None
Special features	None
Spool Position Monitor	No
Spool Type	Spool 2
Spring Arrangement	Spring offset
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	65
Working temp max F	150
Working temp min C	-18
Working temp min F	0
