Home / Danfoss (Drives) / Industrial vane pumps / Danfoss 586405-D

Danfoss (Drives)

Danfoss 586405-D

MPN: 586405-D
Category: Industrial vane pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 586405-D?

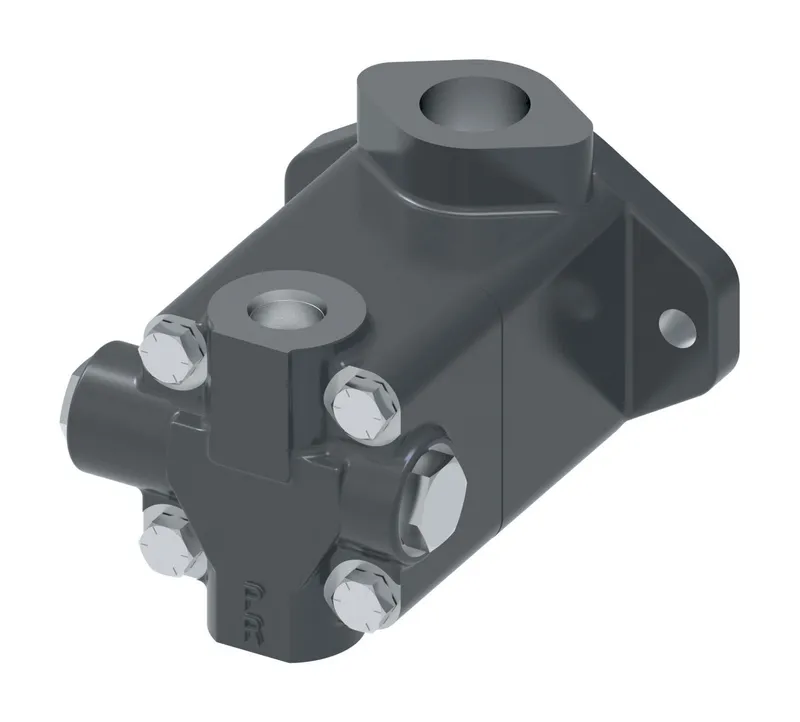

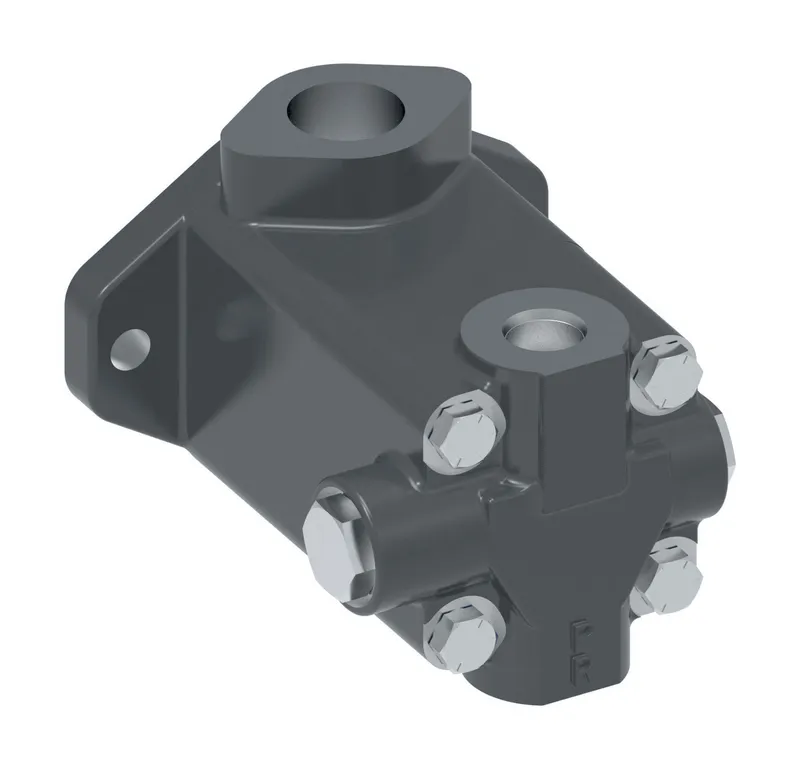

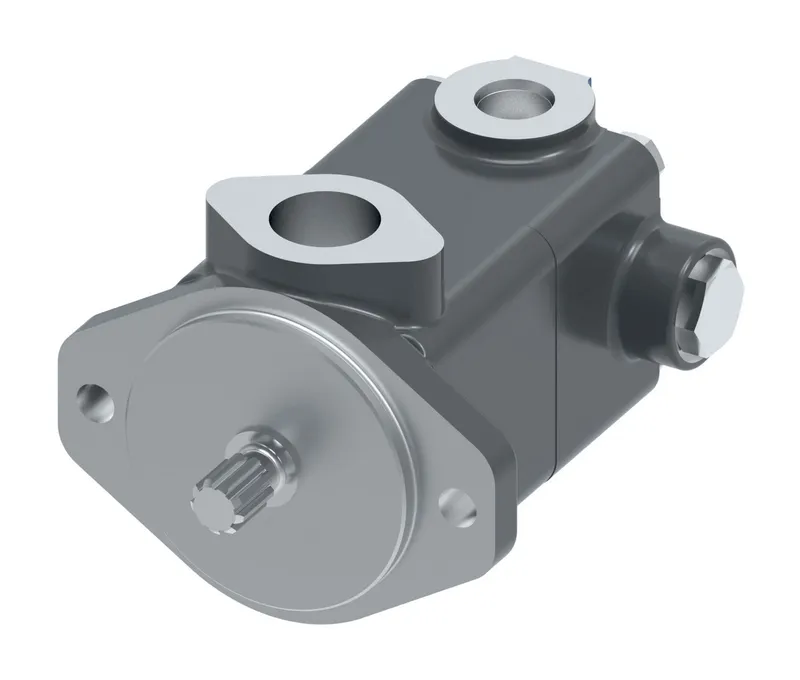

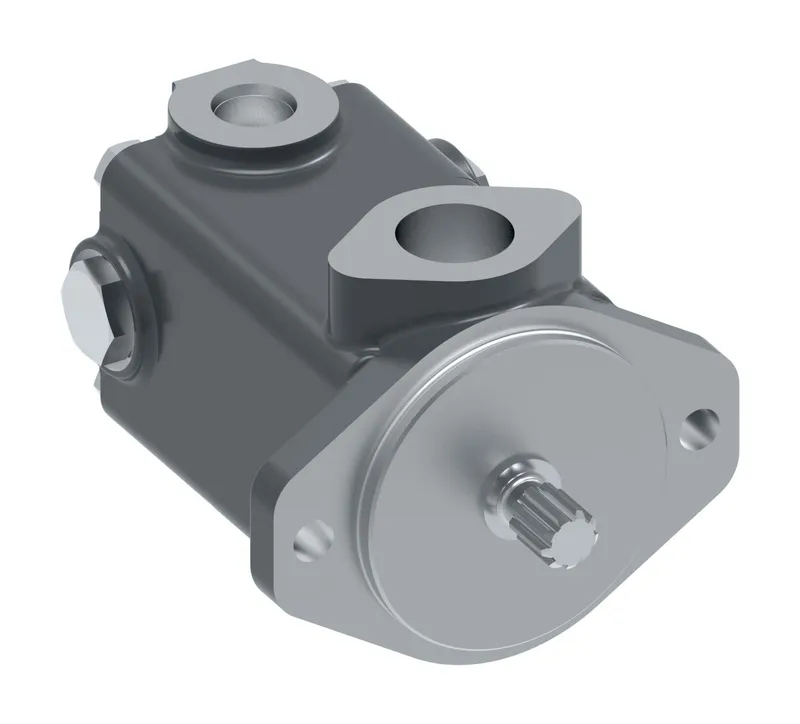

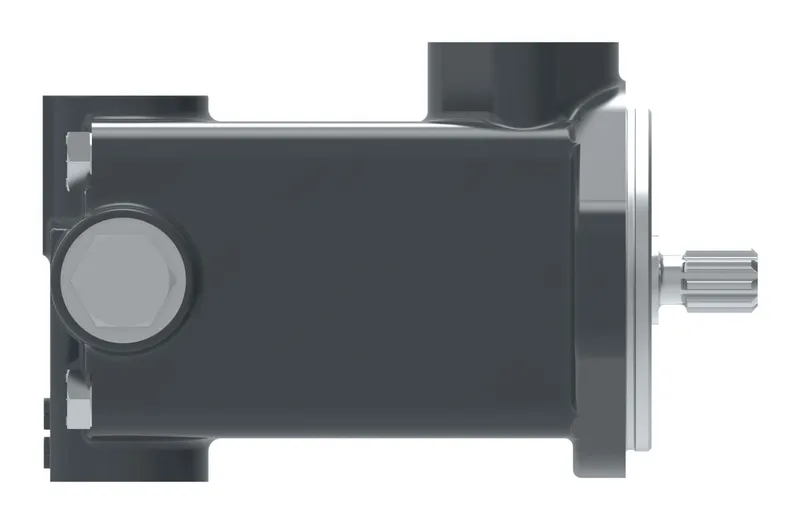

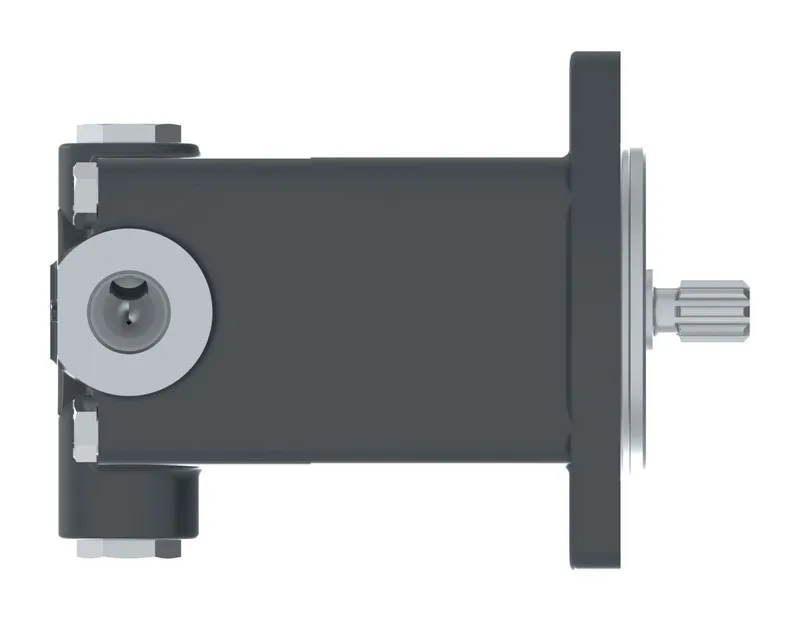

Danfoss V10-1P7P-38D-20, V10-1P7P-38D-20, manufacturer part number 586405-D. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

PUMP TYPE	VANE PUMP
Series	SERIES DESIGNATION
Mounting type	2 BOLT FLANGE SAE-A SIZE
INLET PORT TYPE	1" NPT THREAD
RING CAPACITY	7 GPM
OUTLET PORT TYPE	COVER STANDARD - .500 NPT THREAD, F COVER- PRESSURE PORT-.750-16 UN-2B ,TANK PORT -.500 NPT
Shaft type	11 TEETH 16/32 MAJOR DIA-0.749, EXTENSION-1.269
OUTLET COVER PORT ORIENTATION	90° CW FROM INLET PORT
DESIGN CODE	DESIGN CODE FOR NF,S,F COVER
Shaft rotation	RH CW ROTATION VIEWED FROM SHAFT END
Brand	Vickers by Danfoss
IPM FRAME SIZE	V10 Single Pump
Model Code 1	V10-1P7P-38D-20

586405-D: frequently asked questions

When can 586405-D be shipped?

586405-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 586405-D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 586405-D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 586405-D, subject to availability and destination.
