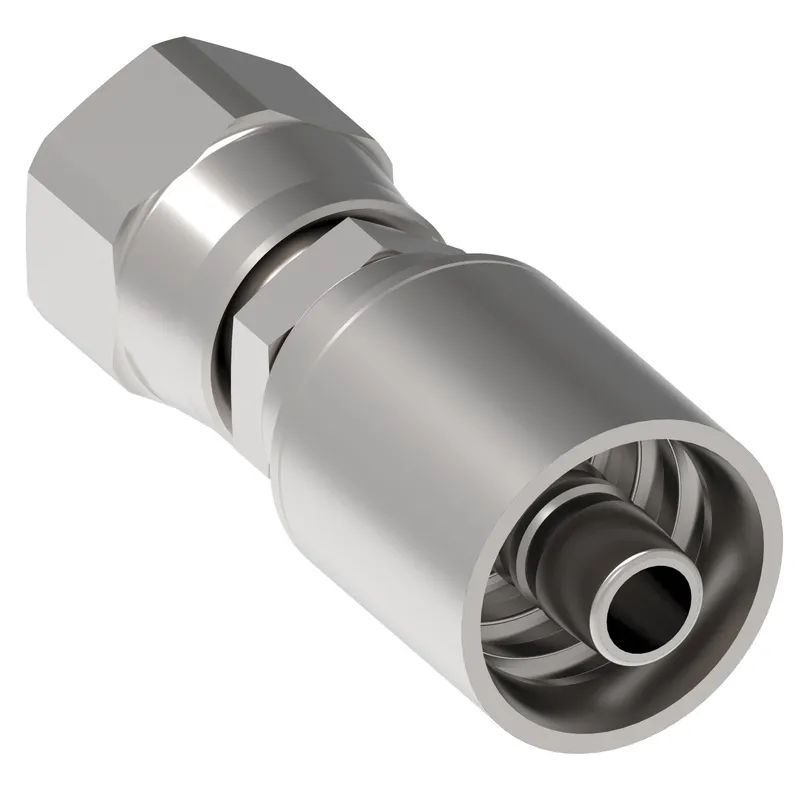

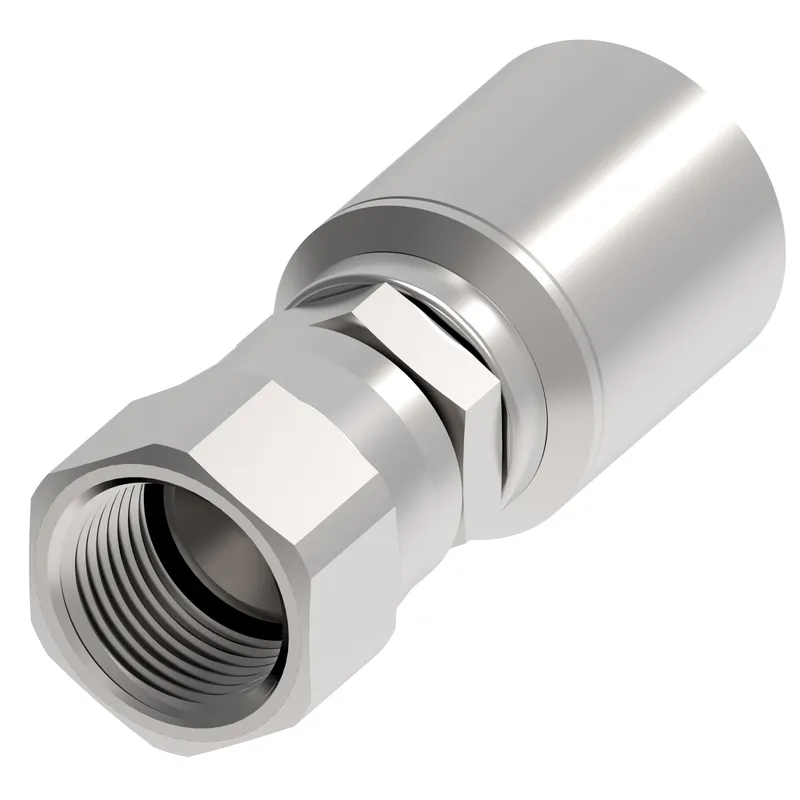

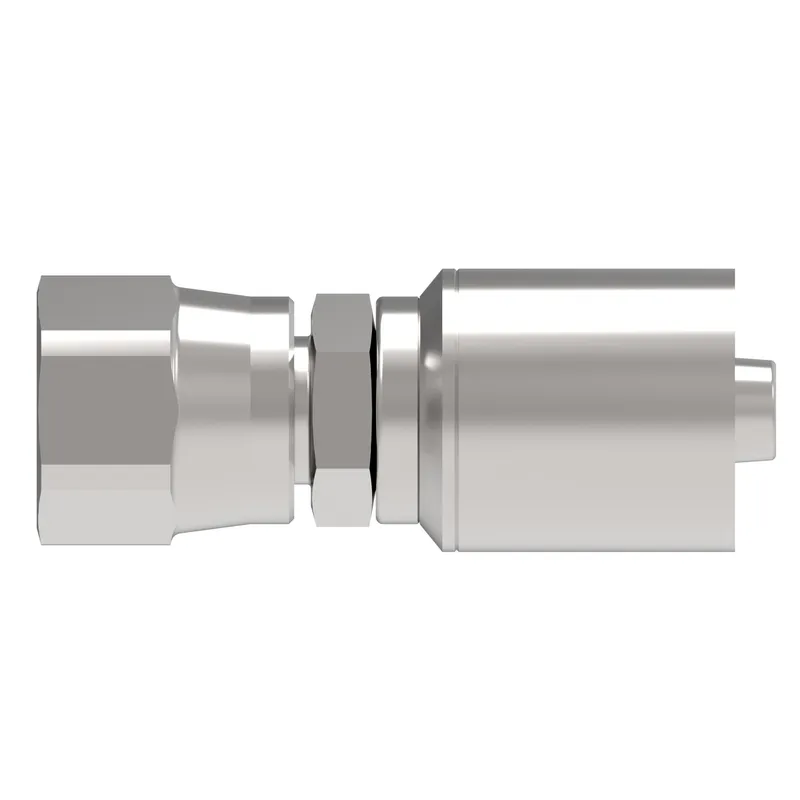

Danfoss 4TA12FJ12C

HOSE FTG, 4T/12, JIC-F/12, CS, STR

MPN: 4TA12FJ12C
Category: Thermoplastic hydraulic hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 4TA12FJ12C?

Danfoss HOSE FTG, 4T/12, JIC-F/12, CS, STR, manufacturer part number 4TA12FJ12C. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	639789255501
A dimension IN	2.800
A dimension MM	71.200
Angle shape	Straight
Compatible hose ID IN	0.750
Construction Style	Crimp
End size 1	-12
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.259
Hex size 1 MM	32.0
Hex size 2 IN	1.141
Hex size 2 MM	29.0
Hose cut off factor IN	1.650
Hose cut off factor MM	41.900
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.312
Product height mm	33.324
Product length in	2.800
Product length mm	71.120
Product material	Carbon steel
Product width in	1.312
Product width mm	33.324 mm
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	330
Working pressure max PSI	4800
